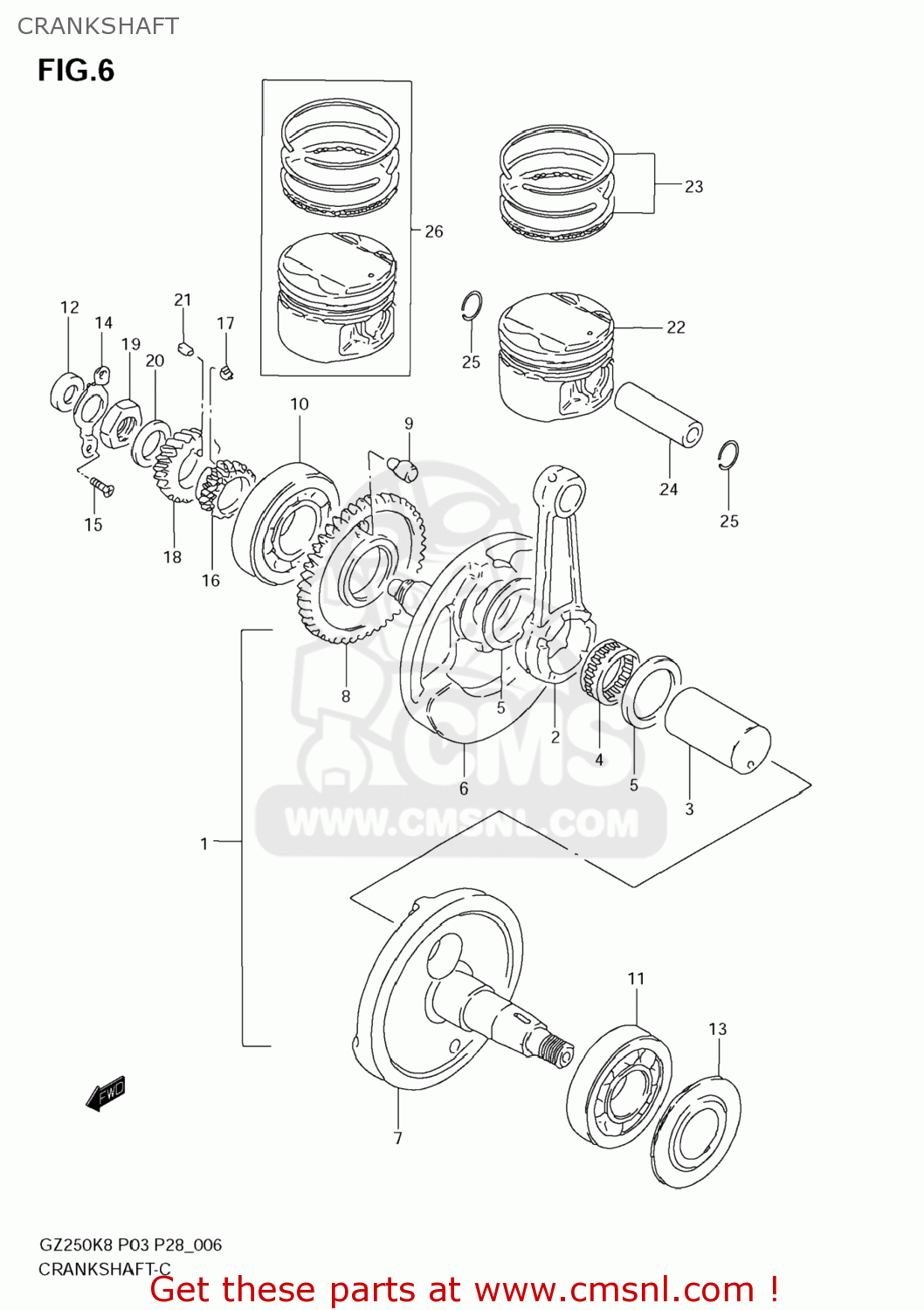

CRANKSHAFT

ref

part #

description

quantity

1

1220026G01
ref: 1

CRANKSHAFT ASSY

€ 646.50

2

1216138201
ref: 2

ROD,CONNECTING

€ 129.50

3

1221138211
ref: 3

PIN,CRANK

€ 38.00

4

09263310120B0
ref: 4

BEARING(31X39X21)

€ 42.00

5

0916031002
ref: 5

WASHER(31X48.5X1)

€ 7.00

6

1222138200
ref: 6

CRANKSHAFT,R

€ 196.00

7

1226126G00
ref: 7

CRANKSHAFT,L

€ 199.50

8

1266138202
ref: 8

GEAR,CRANK BALANCER DRIVE

€ 128.00

9

0920912006
ref: 9

PIN

€ 6.50

10

0926230070
ref: 10
09262-30077

BEARING

€ 47.50

11

0926235028
ref: 11

BEARING(35X80X21)

€ 50.50

12

0928214001
ref: 12

SEAL,OIL(14X26X6)

€ 38.00

13

1252138300
ref: 13

WASHER,CRANKSHAFT OIL SEALING

€ 6.00

14

1254838200
ref: 14

RETAINER,CRANKSHAFT BEARING,R

€ 4.50

15

021220510B
ref: 15

SCREW

€ 2.00

16

1273138200
ref: 16

SPROCKET,CAM CHAIN DRIVE(NT:21

€ 36.00

17

1274932400
ref: 17

KEY,SPROCKET

€ 13.50

18

2111138200
ref: 18

GEAR,PRIMARY DRIVE NO.21

€ 62.00

19

0914020008
ref: 19
09140-20013

NUT (20MM)

€ 4.00

20

0916420003
ref: 20

WASHER

€ 2.50

21

0942107002
ref: 21

KEY

€ 4.00

22

12111382010F0
ref: 22

PISTON

€ 76.00

23

1214049280
ref: 23

RING SET,PISTON

€ 57.00

24

1215115501
ref: 24

PIN,PISTON

€ 15.00

25

0938118002
ref: 25

CIRCLIP

€ 1.50

26

1210038210050
ref: 26

PISTON SET(OS:0.5)

€ 113.00
