MAGNETO

GZ250 MARAUDER 2008 (K8) USA (E03)

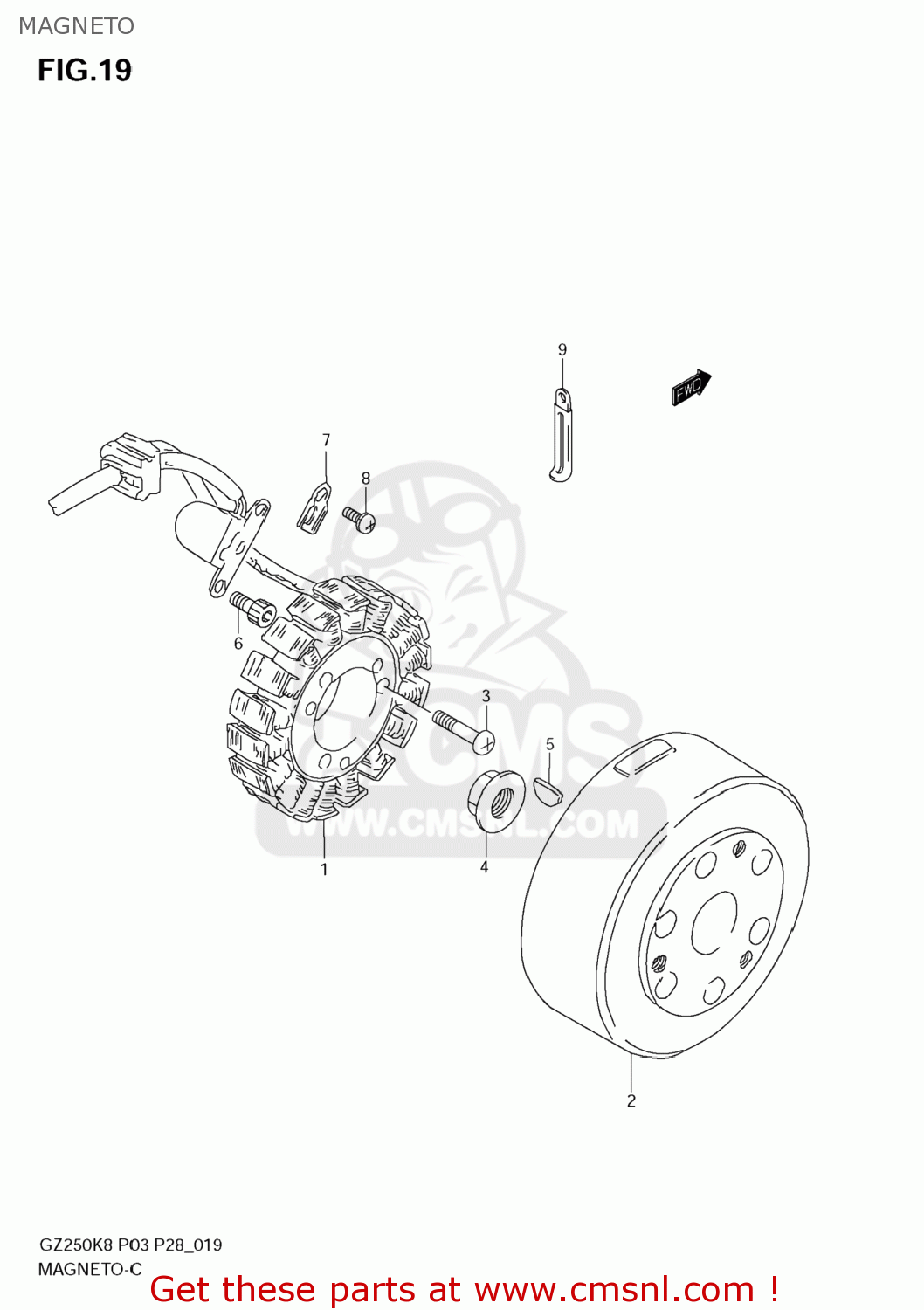

Magneto diagram GZ250 MARAUDER 2008 (K8) USA (E03)

MAGNETO GZ250 MARAUDER 2008 (K8) USA (E03)

MAGNETO GZ250 MARAUDER 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210113F00
ref: 1

STARTER ASSY

€ 676.00

2

3210213F01
ref: 2

ROTOR ASSY

€ 469.50

3

021120625B
ref: 3

SCREW

€ 1.50

4

3179249200
ref: 4

NUT,GENERATOR ROTOR

€ 10.00

5

0834131039
ref: 5

KEY

€ 2.00

6

071300512B
ref: 6

BOLT

€ 2.50

7

3149745000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 1.50

8

021423508B
ref: 8

SCREW

€ 2.50

9

0940406429
ref: 9

CLAMP(L:45)

€ 2.50
