LABEL

GZ250 MARAUDER 2008 (K8) USA (E03)

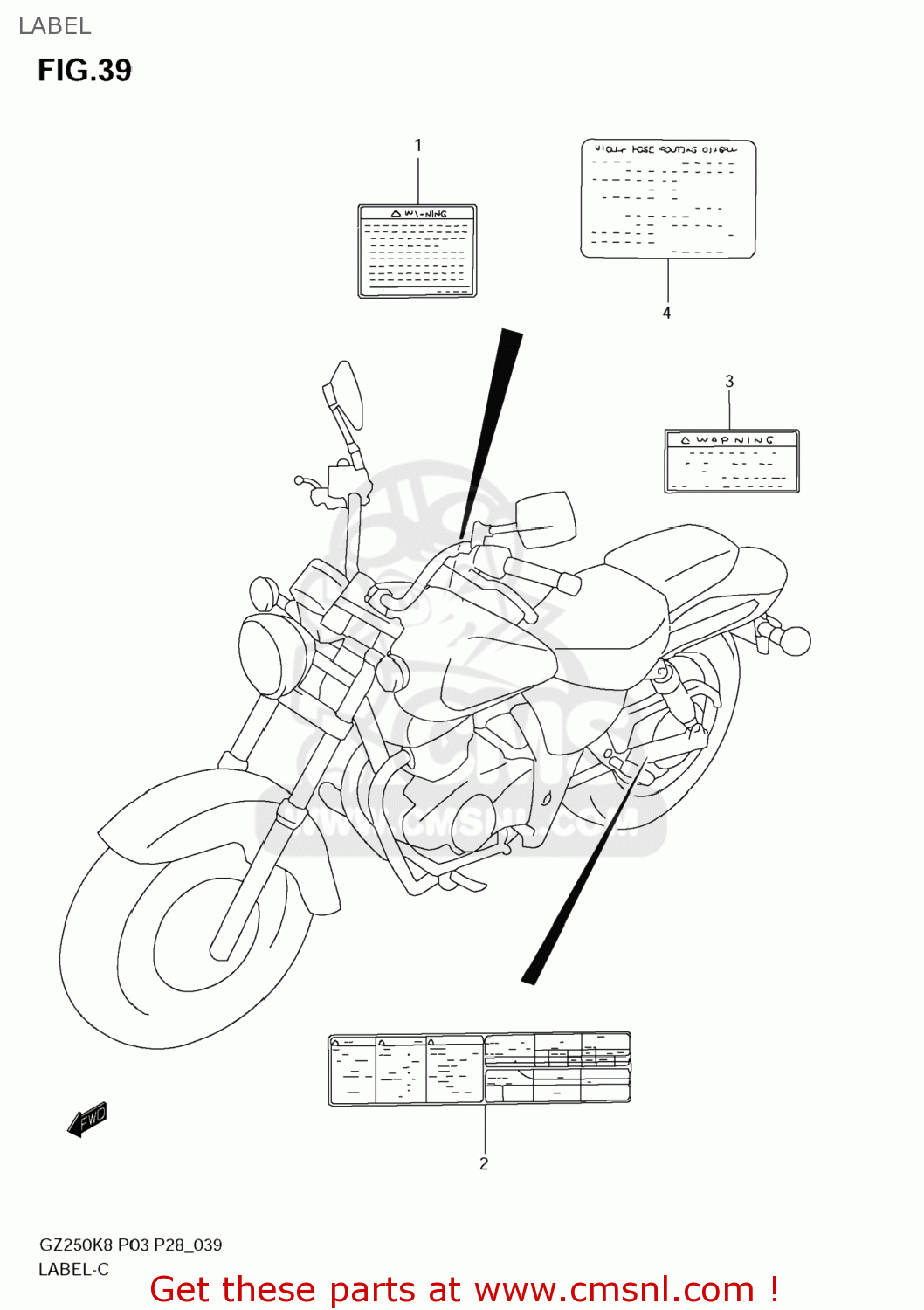

Label diagram GZ250 MARAUDER 2008 (K8) USA (E03)

LABEL GZ250 MARAUDER 2008 (K8) USA (E03)

LABEL GZ250 MARAUDER 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6831929F00
ref: 1

LABEL,GENERAL WARNING

€ 6.00

2

683320AE21
ref: 2

LABEL, TIRE INFORMATION

€ 0.00

3

6835326E02
ref: 3

LABEL,MANUAL NOTICE

€ 3.50

4

6838713F00
ref: 4

LABEL,VACUUM HOSE ROUTING

€ 0.00

5-1

9901113F5903A
ref: 5-1

O/M GZ250 2007-

€ 14.50

5-2

9901113F6003A
ref: 5-2

O/M GZ250 2009

€ 14.50

5-3

9901113F6103A
ref: 5-3

O/M GZ250 2010

€ 14.50
