MUFFLER

GZ250 MARAUDER 2008 (K8) USA (E03)

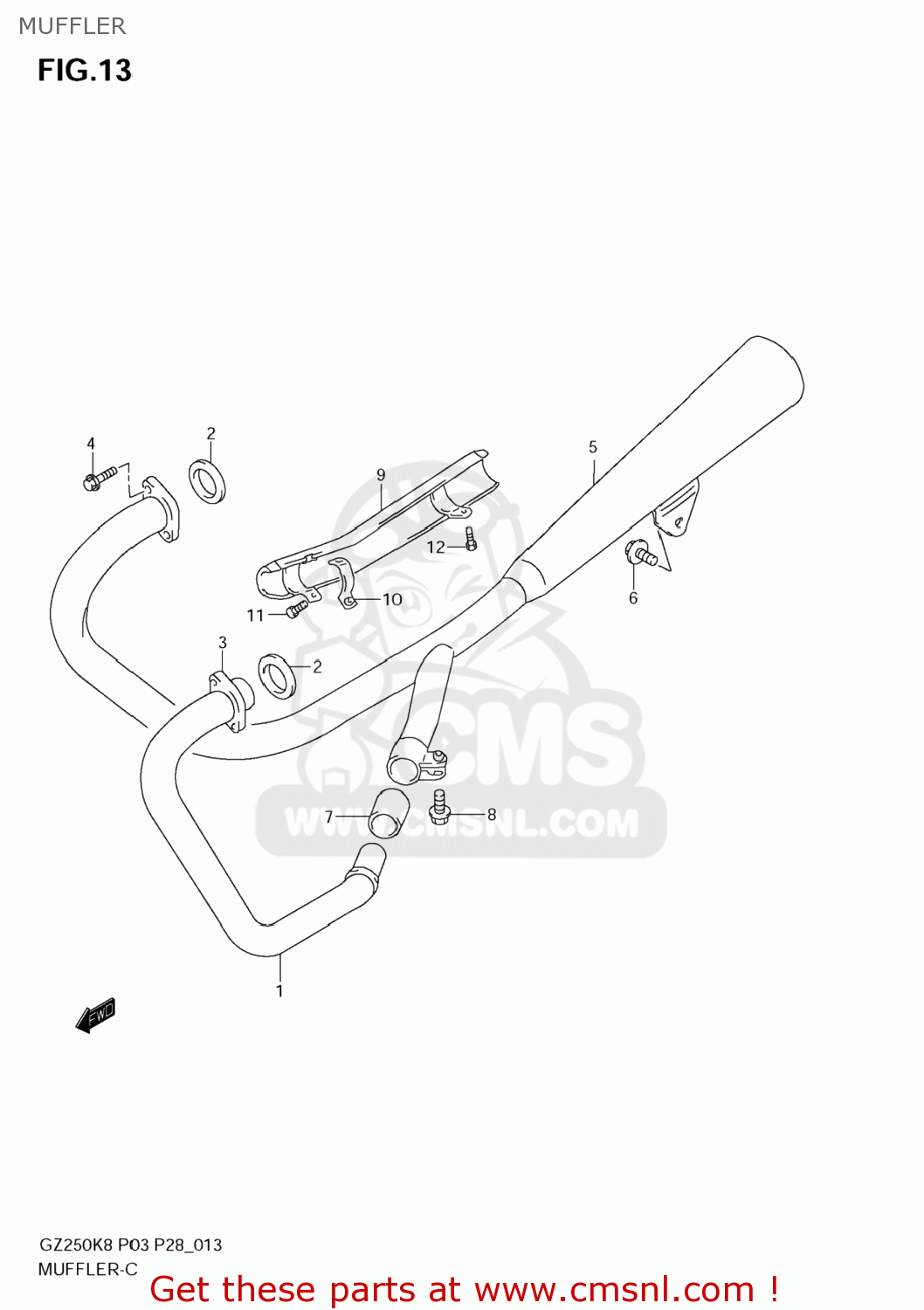

Muffler diagram GZ250 MARAUDER 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1416013F00
ref: 1

PIPE,EXHAUST,L

€ 147.00

1418137D00
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 7.00

1418237D00
ref: 3

CLAMP,EXHAUST PIPE,L

€ 11.00

0910306203
ref: 4

BOLT(6X25)

€ 3.00

1430513F01
ref: 5
14305-13F02-H01

MUFFLER

€ 343.50

015801030B
ref: 6

BOLT

€ 3.50

1477119B00
ref: 7

CONNECTOR,MUFFLER

€ 12.50

015500835B
ref: 8

BOLT

€ 3.50

1478013F01
ref: 9

COVER,MUFFLER

€ 61.50

1478538301
ref: 10

CLAMP,MUFFLER COVER

€ 5.00

021120520B
ref: 11

SCREW

€ 2.50

021127610B
ref: 12

SCREW

€ 0.00

all assemblies
