FOOTREST
GZ250 MARAUDER 2008 (K8) USA (E03)

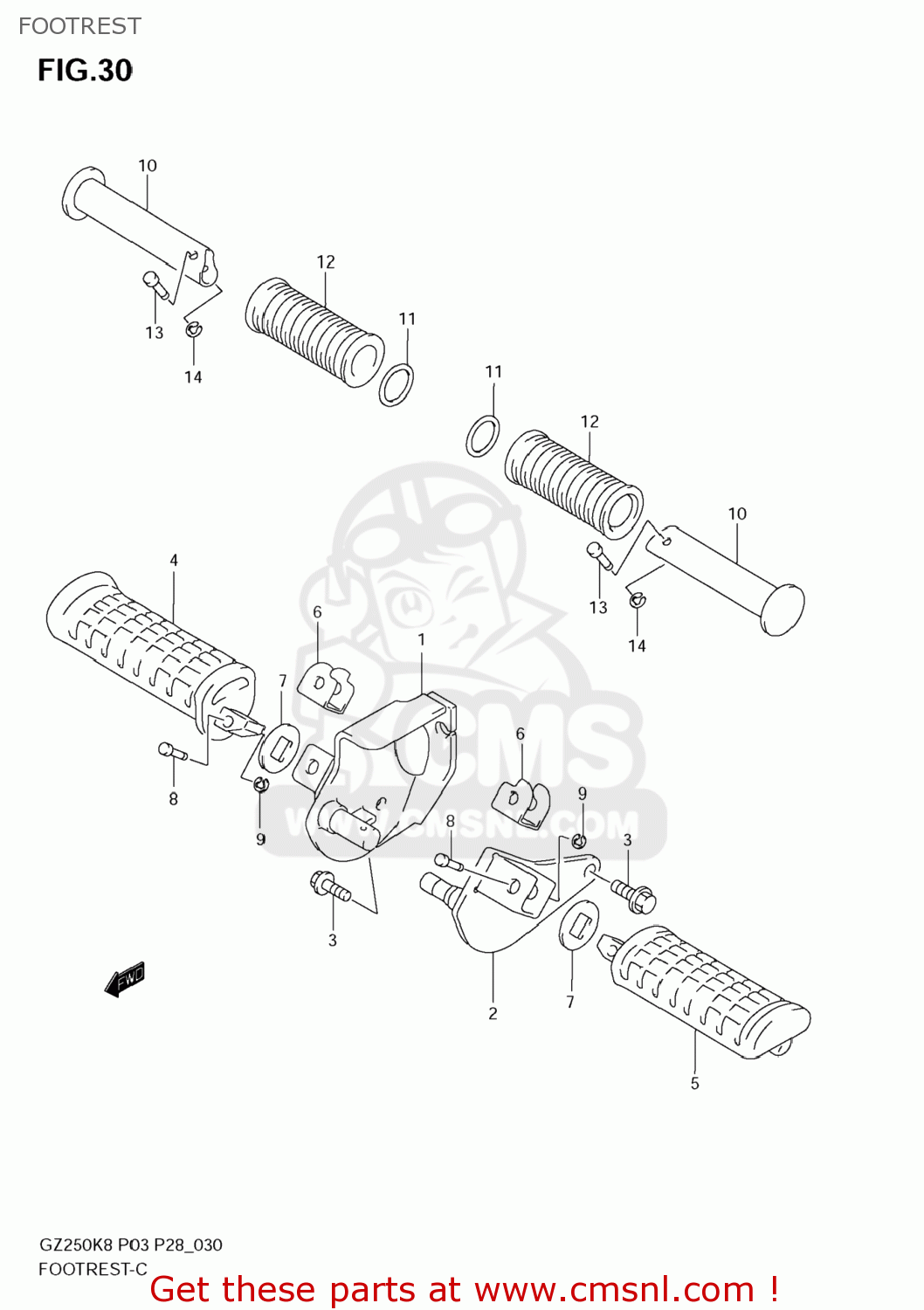

Footrest diagram GZ250 MARAUDER 2008 (K8) USA (E03)
FOOTREST GZ250 MARAUDER 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351013FA0EE3
ref: 1
BRACKET COMP.
€ 23.50
2
4352013FA0EE3
ref: 2
BRACKET COMP.
€ 24.50
3
015500820B
ref: 3
BOLT
€ 3.00
4
43550C12FA0JE0Z
ref: 4
43550-12FA0
RUBBER, FRONT FOOTREST RH
€ 0.00
5
43560C12FA0JE0Z
ref: 5
43560-12FA0
RUBBER, FRONT FOOTREST LH
€ 41.00
6
4357004F00
ref: 6
CUSHION,FR FOOTREST
€ 17.00
7
4363134A01
ref: 7
WASHER,FOOTREST RUBBER
€ 6.50
8
0920806008
ref: 8
PIN(6X29.5)
€ 2.50
9
083321104B
ref: 9
E RING
€ 2.00
10
4361003001
ref: 10
BAR,FOOTREST RUBBER
€ 5.50
11
0916019024
ref: 11
WASHER(19.5X32X2)
€ 2.00
12
436120AE00
ref: 12
RUBBER PILLION
€ 4.50
13
4363625D00
ref: 13
PIN,PILLION FOOTREST
€ 5.50
14
083321104B
ref: 14
E RING
€ 2.00
