FUEL TANK (MODEL L0)

GZ250 MARAUDER 2008 (K8) USA (E03)

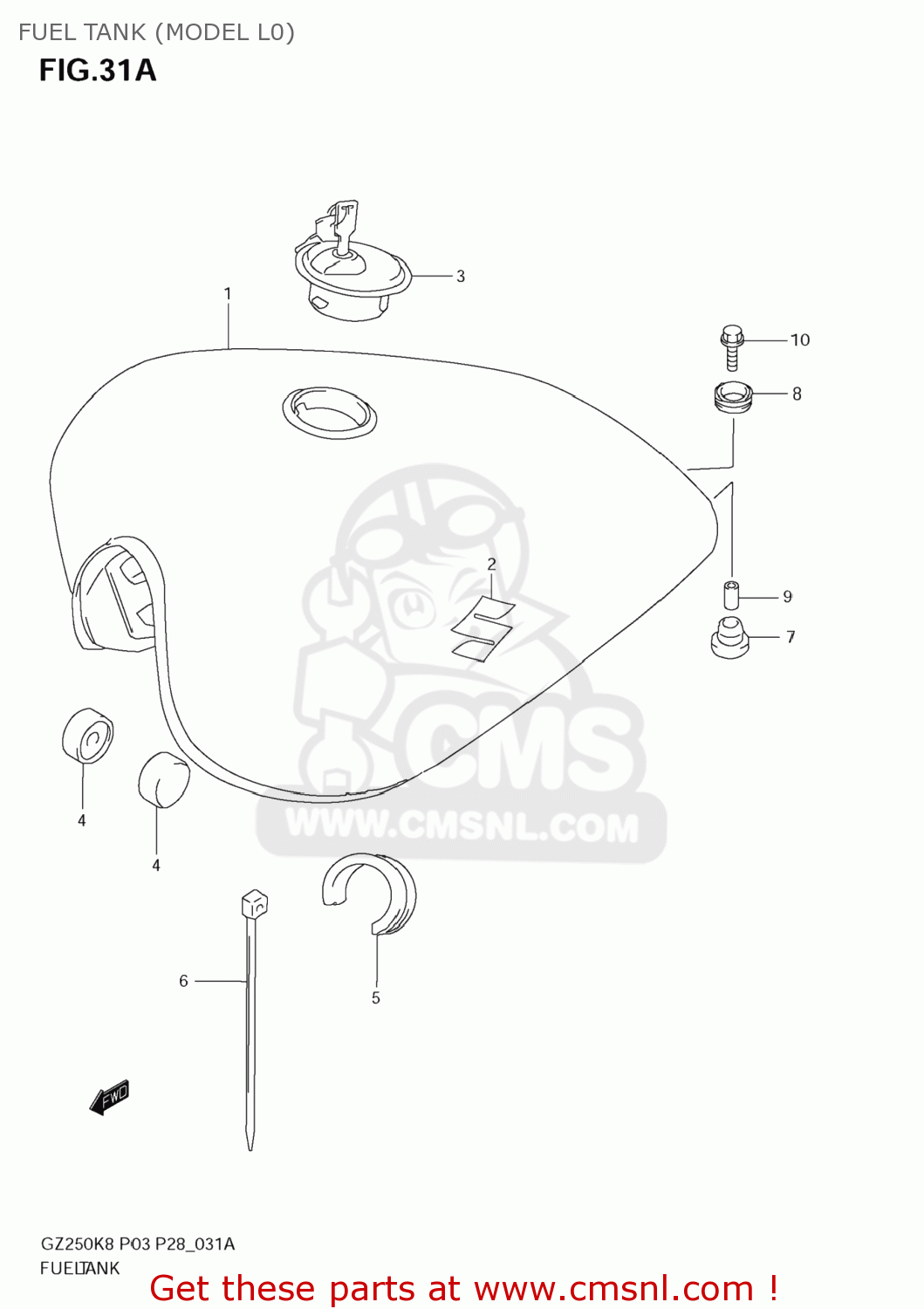

Fuel tank (model l0) diagram GZ250 MARAUDER 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410012FU0YAY
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 554.50

1-2

4410012FU0YC3
ref: 1-2

TANK ASSY,FUEL(WHITE)

€ 554.50

1-3

4910012F00YAY
ref: 1-3

TANK ASSY,FUEL(BLACK)

€ 554.50

1-4

4910012F00YC3
ref: 1-4

TANK ASSY,FUEL(WHITE)

€ 554.50

6811118G20
ref: 2

EMBLEM,S

€ 22.50

3-1

4420041830
ref: 3-1

CAP SET,FUEL TANK

€ 164.50

3-2

4420041840
ref: 3-2

CAP SET,FUEL TANK

€ 114.00

0932910007
ref: 4

CUSHION

€ 3.00

4454103F00
ref: 5

CUSHION,FUEL TANK SIDE

€ 17.50

0940720405
ref: 6
09407-25402

CLAMP

€ 4.50

0932010020
ref: 7

CUSHION

€ 4.00

4451242E00
ref: 8

CUSHION,FUEL TANK RR

€ 3.50

0918006271
ref: 9

SPACER(6.5X9X18)

€ 2.00

D15570630B
ref: 10
01550-0630B

BOLT

€ 2.00
