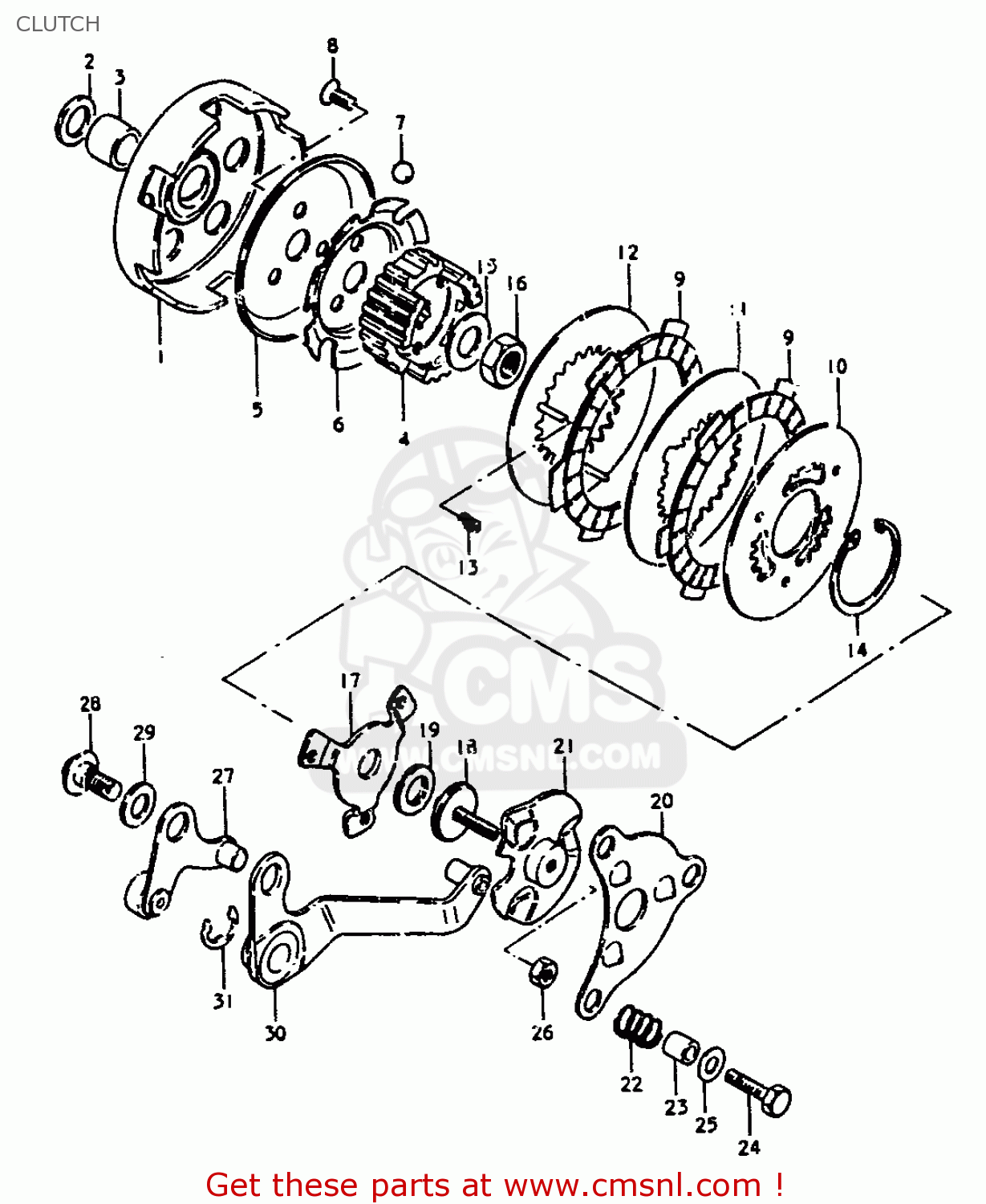

CLUTCH

ref

part #

description

quantity

1

2111004400
ref: 1

GEAR,PRIMARY DRIVE

€ 72.50

2

0916014012
ref: 2

WASHER(14X23X3)

€ 57.50

3

0918014003
ref: 3

SPACER(14X19X18)

€ 13.00

4

2141104400
ref: 4

HUB,CLUTCH SLEEVE

€ 19.50

5

2143104400
ref: 5

PLATE,CLUTCH BALL

€ 14.00

6

2163104400
ref: 6

GUIDE,CLUTCH BALL

€ 9.50

7

0611112004
ref: 7

BALL

€ 1.50

8

0212206167
ref: 8

SCREW

€ 2.00

9

2144104400
ref: 9

PLATE,CLUTCH DRIVE (NAS)

€ 9.50

10

2145104400
ref: 10

PLATE,CLUTCH DRIVEN OUTER (NAS)

€ 12.50

11

2145204400
ref: 11

PLATE,CLUTCH DRIVEN (NAS)

€ 3.50

12

2145404400
ref: 12

PLATE,CLUTCH INNER

€ 11.00

13

0944006007
ref: 13

SPRING

€ 2.00

14

0833141389
ref: 14

CIRCLIP

€ 2.50

15

0916412016
ref: 15

WASHER

€ 5.00

16

0914012012
ref: 16

NUT

€ 3.00

17

2146104400
ref: 17

PLATE,CLUTCH PRESSURE

€ 9.50

18

2312104400
ref: 18

PIECE,CLUTCH PUSH

€ 12.00

19

0926310002
ref: 19

BEARING(10X22X2.8)

€ 8.50

20

2324104400
ref: 20

PLATE,CLUTCH RELEASE

€ 0.00

21

2323004400
ref: 21

PLATE,CLUTCH RELEASE,INNER

€ 109.50

22

0944012018
ref: 22

SPRING

€ 3.50

23

0918006065
ref: 23

SPACER(6X9X10.3)

€ 0.00

24

0110706207
ref: 24

BOLT

€ 2.00

25

0832221067
ref: 25

WASHER

€ 2.00

26

0831011067
ref: 26

NUT 6MM

€ 2.50

27

2321004400
ref: 27

PLATE,CLUTCH RELEASE ARM LINK

€ 23.50

28

0911108032
ref: 28

BOLT(8X17)

€ 0.00

29

0821108161
ref: 29

WASHER

€ 2.00

30

2322004400
ref: 30

ARM,CLUTCH RELEASE PLATE

€ 0.00

31

0833211098
ref: 31

E RING

€ 1.50
