CRANKCASE
JR50 1988 (J)

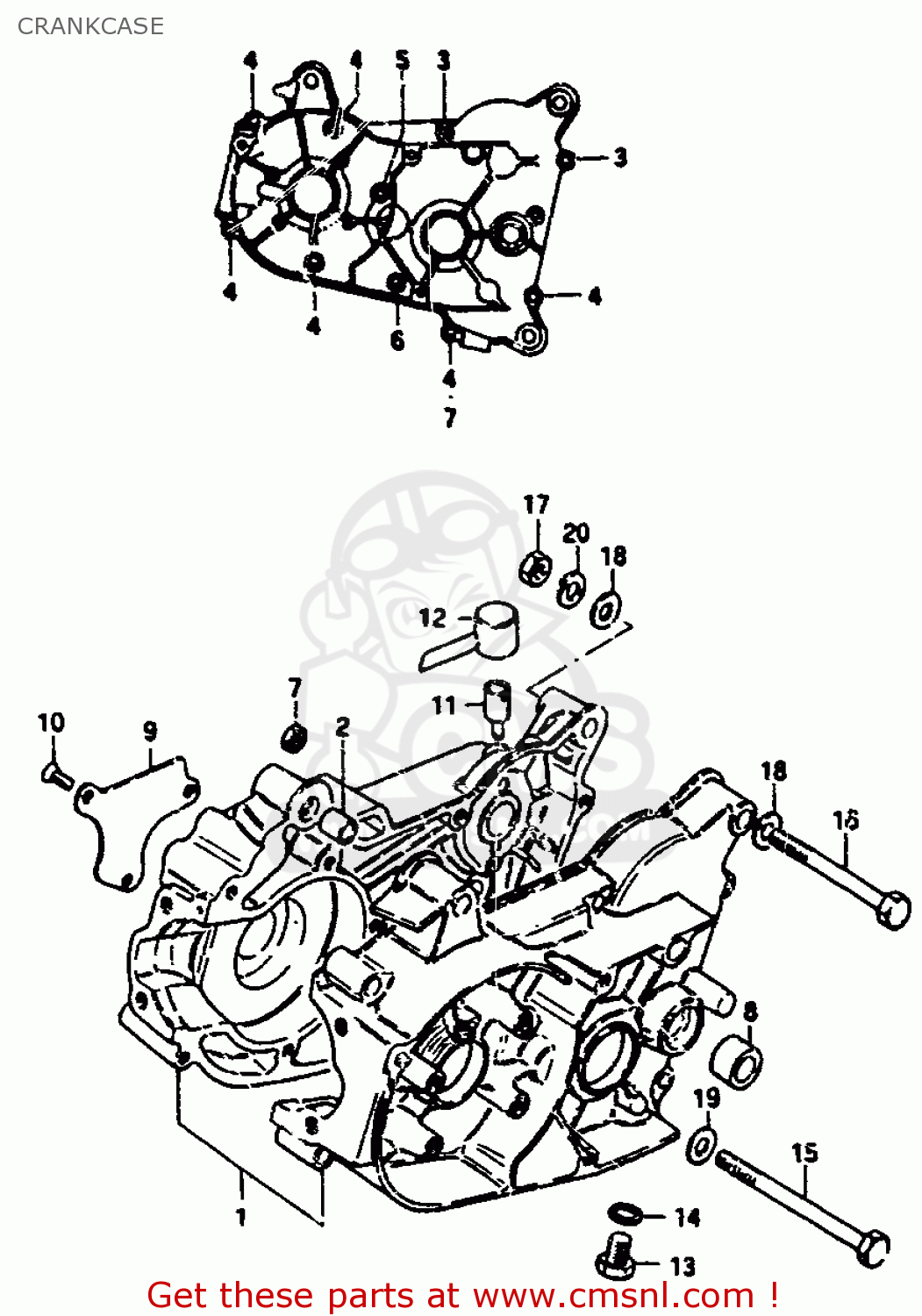

Crankcase diagram JR50 1988 (J)
CRANKCASE JR50 1988 (J)
×
prices are in EUR
ref
part #
description
quantity
1
1130004840
ref: 1
CRANKCASE ASSEMBLY
€ 291.00
2
0421111129
ref: 2
PIN
€ 2.00
3
0211206308
ref: 3
SCREW 6X30
€ 2.50
4
0211206357
ref: 4
SCREW
€ 2.50
5
0211206407
ref: 5
SCREW
€ 2.00
6
0211206558
ref: 6
SCREW
€ 2.50
7
0831011067
ref: 7
NUT 6MM
€ 2.50
8
0930410005
ref: 8
BUSH
€ 6.00
9
1252104000
ref: 9
PLATE,OIL RESERVOIR
€ 6.50
10
0212204108
ref: 10
SCREW
€ 2.50
11
2482109000
ref: 11
PLUG,TRANSMISSION BREATHER
€ 5.50
12
2482220000
ref: 12
GASKET (NAS)
€ 16.00
13
0924710001
ref: 13
PLUG
€ 3.00
14
0916810002
ref: 14
GASKET(10X14X3.6) (NAS)
€ 2.00
15
0110708858
ref: 15
BOLT
€ 2.50
16
0110708708
ref: 16
BOLT
€ 2.50
17
0831012088
ref: 17
NUT
€ 2.00
18
0832211088
ref: 18
WASHER
€ 2.00
19
0916008030
ref: 19
WASHER
€ 2.50
20
0832121088
ref: 20
LOCK WASHER
€ 2.00
