GEAR SHIFTING

JR50 1988 (J)

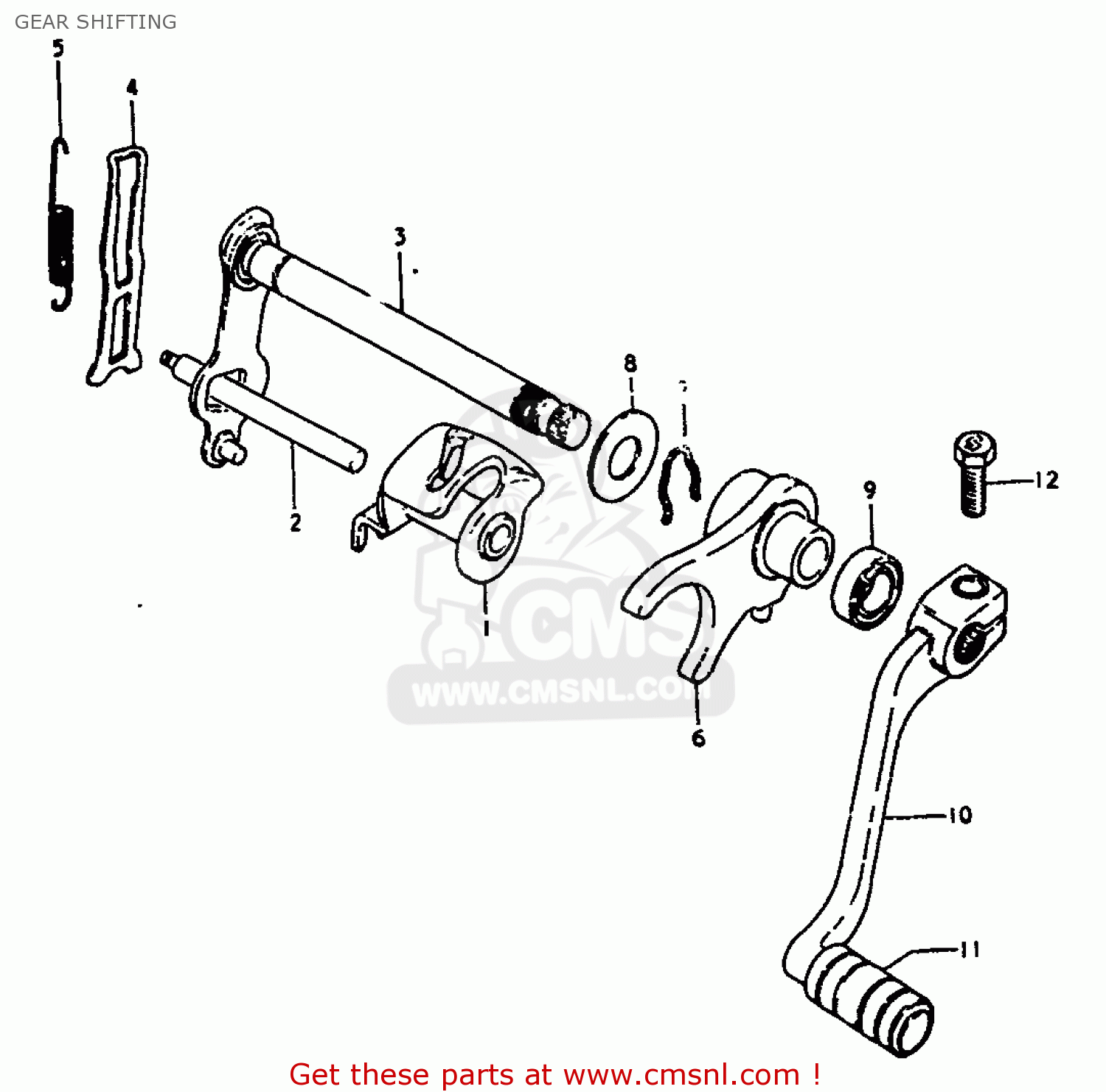

Gear shifting diagram JR50 1988 (J)

GEAR SHIFTING JR50 1988 (J)

GEAR SHIFTING JR50 1988 (J)

prices are in EUR

ref

part #

description

quantity

1

2531004000
ref: 1

CAM,GEAR SHIFT

€ 32.50

2

2541104000
ref: 2

SHAFT,GEAR SHIFT CAM

€ 9.00

3

2551004400
ref: 3

SHAFT,GEAR SHIFT

€ 127.50

4

2535204000
ref: 4

ARM,GEAR SHIFT CAM STOPPER

€ 65.50

5

0944308008
ref: 5

SPRING

€ 3.00

6

2521004001
ref: 6

FORK,GEAR SHIFT NO.1

€ 36.50

7

0938412001
ref: 7

SPRING,RETAINER

€ 2.00

8

0821112261
ref: 8

WASHER

€ 2.50

9

0928512002
ref: 9

OIL SEAL

€ 7.00

10

2560029300
ref: 10

LEVER ASSY,GEAR SHIFT

€ 30.50

11

2565216500
ref: 11

RUBBER,GEAR SHIFT PEDAL

€ 4.00

12

0910006091
ref: 12

BOLT

€ 2.00
