HANDLEBAR-CABLE
JR50 1988 (J)

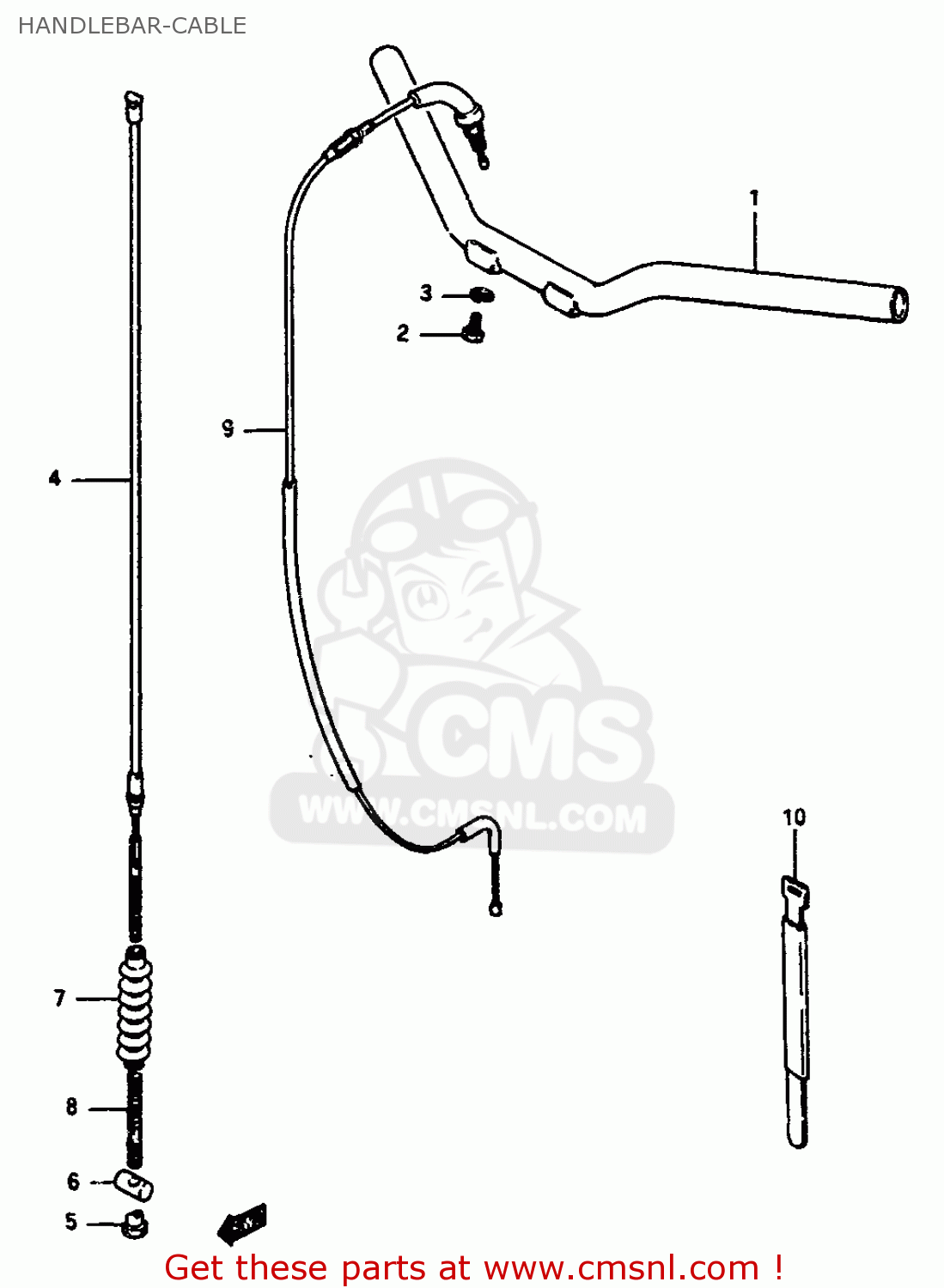

Handlebar-cable diagram JR50 1988 (J)
HANDLEBAR-CABLE JR50 1988 (J)
×
prices are in EUR
ref
part #
description
quantity
1-1
561100441119T
ref: 1-1
MODEL F/G
HANDLEBAR
€ 0.00
1-2
5611004411291
ref: 1-2
MODEL H/J/K/L
HANDLEBAR
€ 28.50
2
0110708167
ref: 2
BOLT,8X16
€ 2.00
3
0832121088
ref: 3
LOCK WASHER
€ 2.00
4
5810004420
ref: 4
CABLE ASSEMBLY,FRONT BRAKE
€ 30.50
5
0915005101
ref: 5
NUT
€ 3.00
6
0920910001
ref: 6
PIN,10X19
€ 2.00
7
0928707001
ref: 7
SEAL,DUST(7X16X75)
€ 2.00
8
0944006003
ref: 8
SPRING
€ 2.00
9-1
5830004402
ref: 9-1
MODEL F/G
CABLE ASSEMBLY,THROTTLE
€ 57.00
9-2
5830004420
ref: 9-2
MODEL H/J/K/L
CABLE ASSEMBLY,THROTTLE
€ 57.00
10
0940718301
ref: 10
CLAMP
€ 6.00
