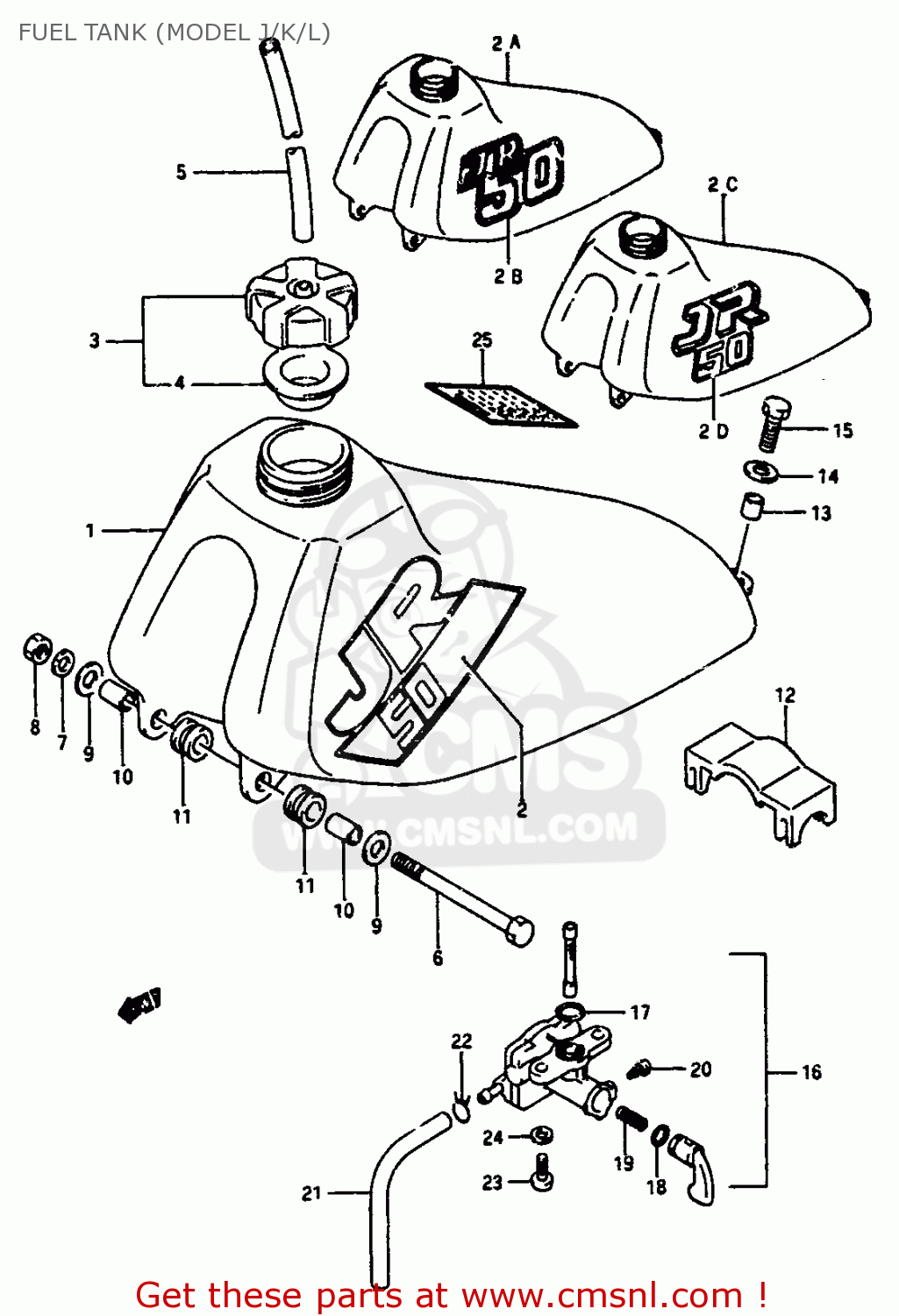

FUEL TANK (MODEL J/K/L)

ref

part #

description

quantity

1

441000440025Y
ref: 1
MODEL J

TANK ASSEMBLY,FUEL

€ 151.50

2

68110044909UR
ref: 2
MODEL J

TAPE SET,FUEL TANK

€ 20.00

2A

4410009A0025Y
ref: 2A
MODEL K

TANK ASSEMBLY,FUEL

€ 151.50

2B

6811509A000FB
ref: 2B
MODEL K

TAPE,FUEL TANK

€ 20.00

2C

441100442025Y
ref: 2C
MODEL L

TANK,FUEL

€ 151.50

2D

68120044003SG
ref: 2D
MODEL L

EMBLEM,FUEL TANK

€ 0.00

3

4420040810
ref: 3

CAP,FUEL TANK FILLER

€ 20.00

4

4424840400
ref: 4

GASKET,FUEL TANK CAP (NAS)

€ 4.50

5-1

0935250823240
ref: 5-1
MODEL J/K

HOSE

€ 13.00

5-2

0935250823300
ref: 5-2
MODEL L

HOSE

€ 13.00

6

0110706908
ref: 6

BOLT

€ 1.50

7

0832121067
ref: 7

WASHER,LOCK

€ 2.50

8

0831011067
ref: 8

NUT 6MM

€ 2.50

9

0916006028
ref: 9

WASHER(6.5X18X1)

€ 1.50

10

0918006006
ref: 10

SPACER (6.8X10X11.5)

€ 3.00

11

0932010008
ref: 11

CUSHION

€ 2.50

12

4454204420
ref: 12

CUSHION,FUEL TANK UPR

€ 5.50

13

0918006111
ref: 13

SPACER

€ 3.50

14

0916006028
ref: 14

WASHER(6.5X18X1)

€ 1.50

15

0110706167
ref: 15

BOLT

€ 3.00

16

4430004420
ref: 16

COCK ASSY,FUEL

€ 21.00

17

4434841370
ref: 17

O RING

€ 1.50

18

4435341370
ref: 18

O RING,LEVER

€ 4.00

19

4435741370
ref: 19

SPRING,FUEL COCK VALUE

€ 2.00

20

4434341370
ref: 20

SCREW

€ 2.00

21-1

0935250823150
ref: 21-1
MODEL J/K

HOSE

€ 13.00

21-2

0935250823300
ref: 21-2
MODEL L

HOSE

€ 13.00

22

0940108401
ref: 22

CLIP

€ 1.50

23

0211206167
ref: 23

SCREW

€ 2.50

24

0832121067
ref: 24

WASHER,LOCK

€ 2.50

25

6836904420
ref: 25

LABEL (WARNING)

€ 0.00

all assemblies
