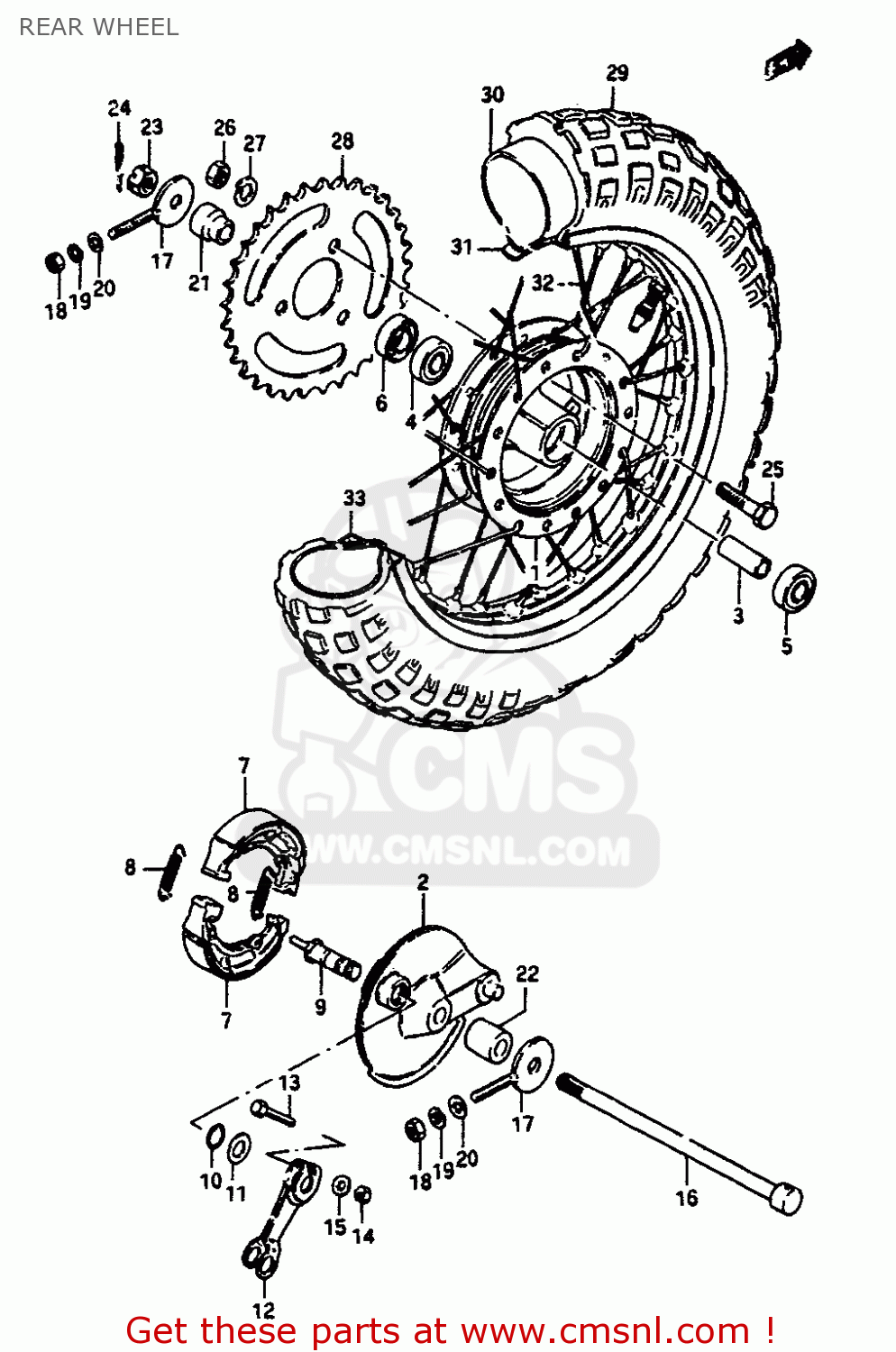

REAR WHEEL

ref

part #

description

quantity

1

6411004400
ref: 1

HUB,RR WHEEL

€ 157.00

2

6421004400
ref: 2

PANEL,RR BRAKE ANCHOR

€ 36.50

3

0918010013
ref: 3

SPACER (10.2X16X55)

€ 4.50

4

0811360000
ref: 4

BALL BEARING K

€ 12.00

5

0814360007
ref: 5

BEARING

€ 8.50

6

0928415004
ref: 6

SEAL,OIL(15X27X6)

€ 4.50

7-1

5441004001
ref: 7-1
MODEL F TO 54410-040

SHOE,BRAKE

€ 19.00

7-2

5441004002
ref: 7-2
MODEL G/H/J/K/L

SHOE,BRAKE

€ 19.00

8-1

0944307001
ref: 8-1
MODEL F FOR 54410-04

SPRING(L:34)

€ 2.50

8-2

0944307025
ref: 8-2
MODEL G/H/J/K/L FOR

SPRING(L:35.8)

€ 2.50

9

5444104000
ref: 9

CAM,FRONT BRAKE

€ 8.50

10

0928010006
ref: 10

O RING(D:2.4,ID:9.8)

€ 5.50

11

0916010026
ref: 11

WASHER (10.5X18X1)

€ 2.00

12

6445104000
ref: 12

LEVER,RR BRAKE CAM

€ 24.50

13

0110705258
ref: 13

BOLT

€ 2.00

14

0831011058
ref: 14

NUT

€ 2.50

15

0832221057
ref: 15

WASHER

€ 2.50

16

5471104410
ref: 16

AXLE,RR

€ 27.50

17

6141104000
ref: 17

ADJUSTER,CHAIN

€ 4.50

18

0831011067
ref: 18

NUT 6MM

€ 2.50

19

0832121067
ref: 19

WASHER,LOCK

€ 2.50

20

0832221067
ref: 20

WASHER

€ 2.00

21

6475104410
ref: 21

SPACER,RR AXLE,L

€ 4.50

22

6474104410
ref: 22

SPACER,RR AXLE,R

€ 3.00

23

0831431108
ref: 23

NUT

€ 1.50

24

0411120208
ref: 24

PIN 20X20

€ 1.50

25

0910508008
ref: 25

BOLT

€ 2.00

26

0831012088
ref: 26

NUT

€ 2.00

27

0832121088
ref: 27

LOCK WASHER

€ 2.00

28

6451104411
ref: 28

SPROCKET,RR

€ 22.50

29

5510004410
ref: 29

TIRE

€ 141.50

30

5520004410
ref: 30

TUBE,INNER

€ 17.00

31

5526104410
ref: 31

PROTECTOR,INNER TUBE

€ 4.50

32

5530004820
ref: 32

SPOKE SET,RR

€ 51.50

33

5531104410
ref: 33

RIM,WHEEL

€ 269.00
