AIR CLEANER

LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

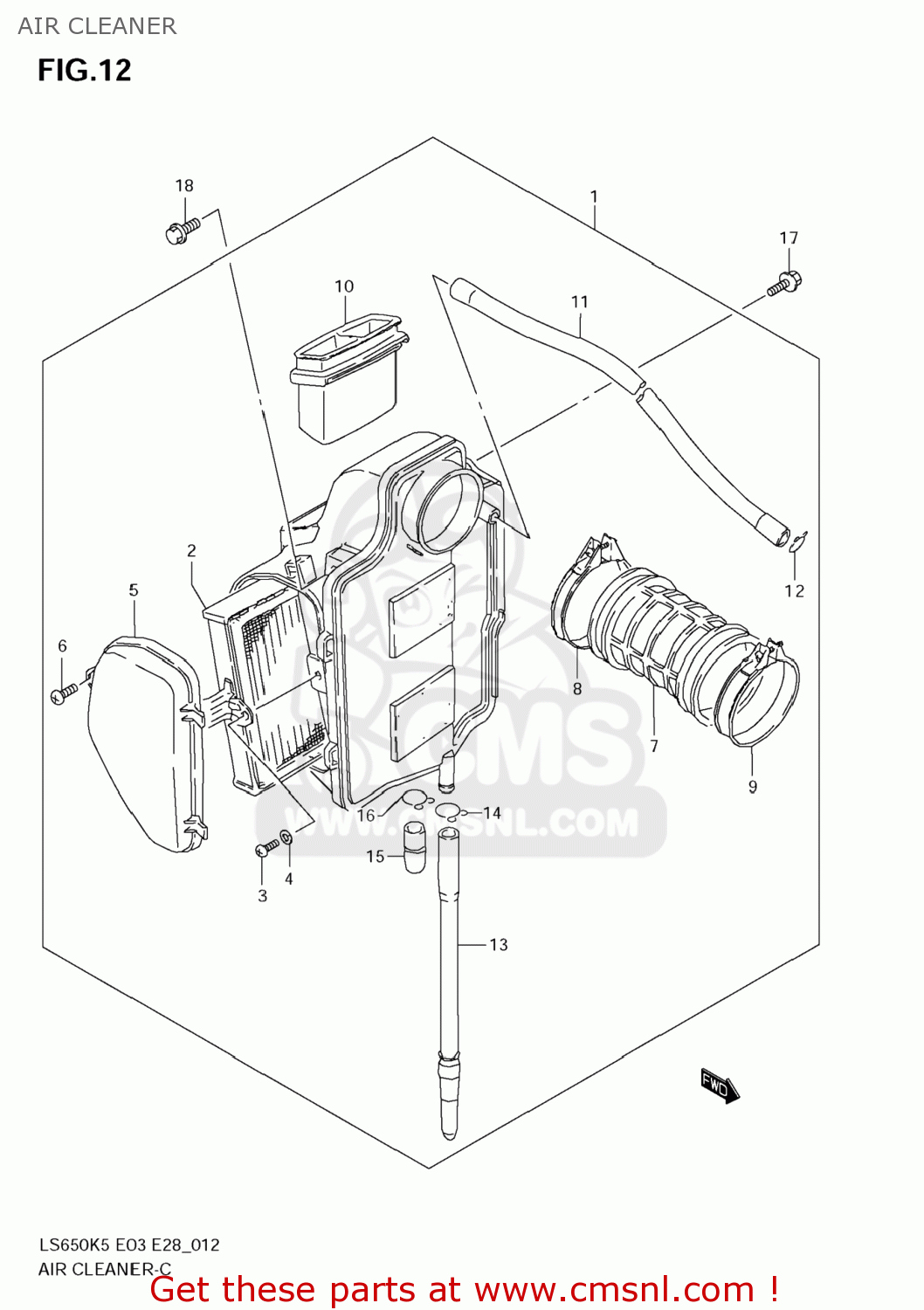

Air cleaner diagram LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

prices are in EUR

ref

part #

description

quantity

1370024B05
ref: 1

CLEANER ASSY,AIR

€ 81.00

1378024B01
ref: 2

FILTER ASSY,AIR

€ 31.50

0211205107
ref: 3

SCREW

€ 2.00

083210105A
ref: 4

WASHER,LOCK

€ 2.00

1374024B01
ref: 5

CAP,AIR CLEANER

€ 13.50

021420512B
ref: 6

SCREW

€ 1.50

1388124B01
ref: 7

TUBE,AIR CLEANER OUTLET

€ 17.50

0940270203
ref: 8
09402-70902

CLAMP

€ 6.00

0940264203
ref: 9

CLAMP

€ 6.00

1389124B00
ref: 10

TUBE,INLET

€ 13.00

0935211153600
ref: 11

HOSE(11X15X600)

€ 13.50

0940114301
ref: 12

CLIP

€ 2.00

1387011458
ref: 13

TUBE,DRAIN

€ 13.50

0940113409
ref: 14

CLIP

€ 2.50

1385941B10
ref: 15

PLUG

€ 5.50

0940114301
ref: 16

CLIP

€ 2.00

0911606006
ref: 17

BOLT(6X16)

€ 2.00

015500612B
ref: 18

BOLT

€ 2.50
