REAR SWINGING ARM

LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

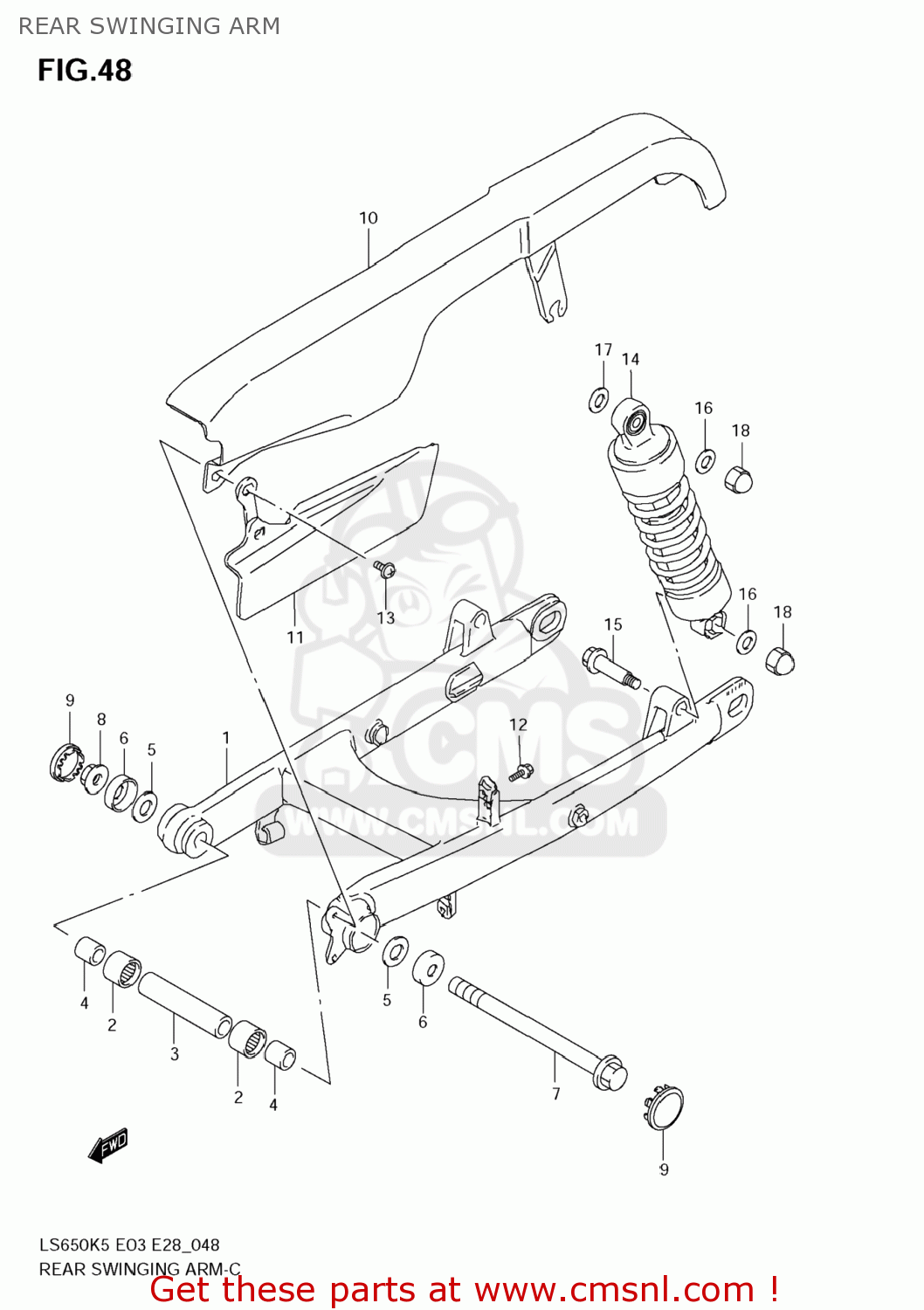

Rear swinging arm diagram LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

prices are in EUR

ref

part #

description

quantity

6110024B03019
ref: 1

SWINGINGARM,RR

€ 404.00

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

6128224B01
ref: 3

SPACER,RR SWGARM PIVOT CTR

€ 7.50

6125124B00
ref: 4

SPACER,RR SWGARM PIVOT

€ 9.00

0821114341
ref: 5

WASHER

€ 3.00

6126245002
ref: 6

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

6121124B00
ref: 7

SHAFT,RR SWINGINGARM PIVOT

€ 15.50

083193114A
ref: 8

NUT

€ 9.00

6122238A01
ref: 9

CAP,RR SWINGING ARM PIVOT,R

€ 6.50

6131024B02
ref: 10

BELT CASE,UPR

€ 155.50

6132024B02
ref: 11

BELT CASE,LWR

€ 29.50

015500612B
ref: 12

BOLT

€ 2.50

021127612B
ref: 13

SCREW

€ 2.00

6210024B00
ref: 14

ABSORBER ASSY,RR SHOCK

€ 214.00

6231324B00
ref: 15

BOLT,RR SHOCK ABSORBER LWR

€ 9.00

0916010035
ref: 16

WASHER(10.5X28X2.3)

€ 2.00

0916014009
ref: 17

WASHER(14.5X29X2.3)

€ 3.50

0916014009
ref: 17

WASHER(14.5X29X2.3)

€ 3.50

0831310107
ref: 18

NUT

€ 2.50
