FRAME

LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

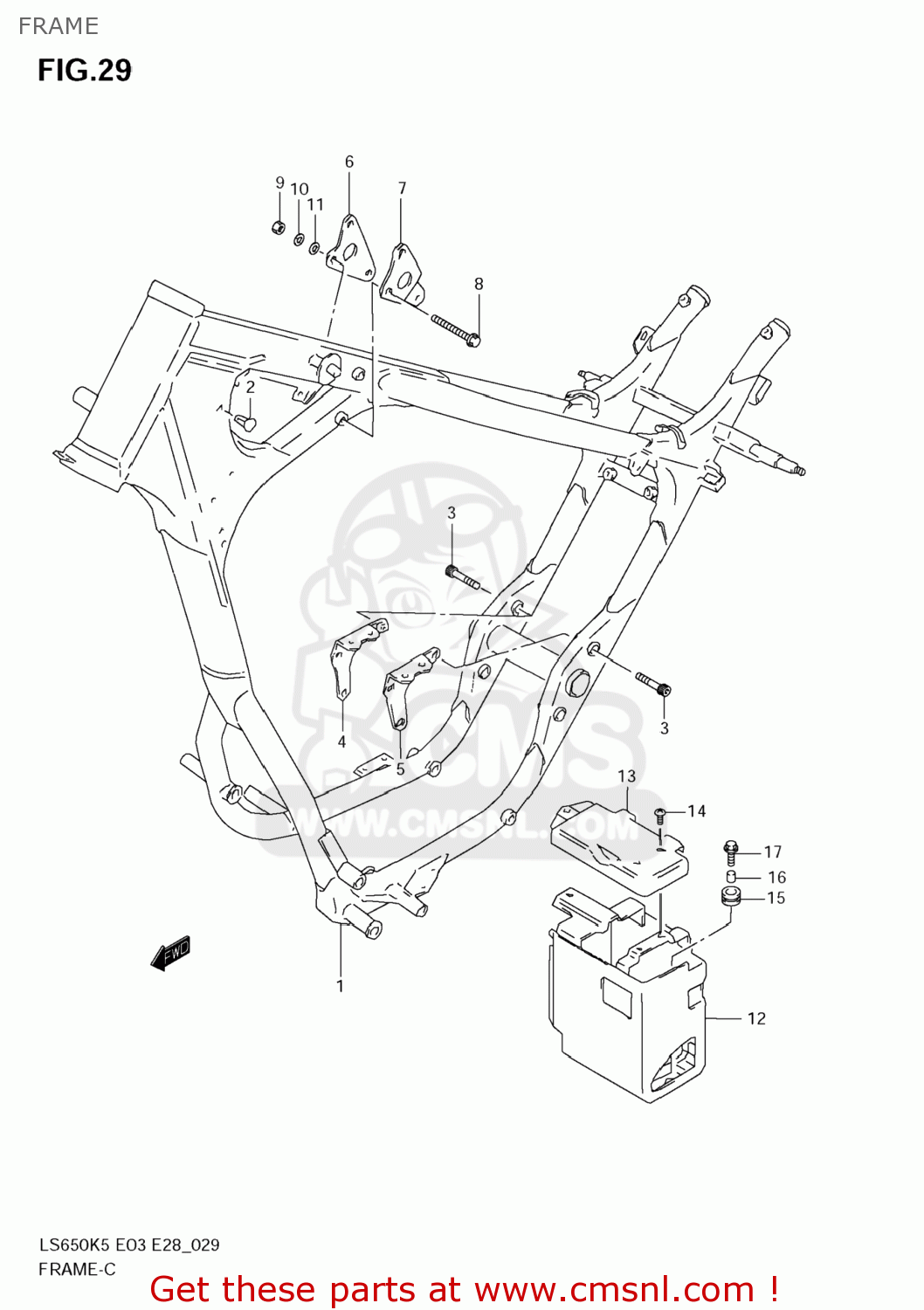

Frame diagram LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

prices are in EUR

ref

part #

description

quantity

4110024B01019
ref: 1

FRAME(BLACK)

€ 562.50

0940906306
ref: 2

CLIP

€ 2.00

0910608074
ref: 3

BOLT(8X40)

€ 3.50

4197024B00019
ref: 4

PLATE,ENGINE MOUNT NO.4,R

€ 10.50

4198024B00019
ref: 5

PLATE,ENGINE MOUNT NO.4,L

€ 10.50

4199124B00019
ref: 6

PLATE,ENGINE MOUNT NO.5,R

€ 7.50

4199224B00019
ref: 7

PLATE,ENGINE MOUNT NO.5,L

€ 7.50

0910308279
ref: 8

BOLT(8X72)

€ 4.50

083192108A
ref: 9

NUT

€ 1.50

083210108B
ref: 10

WASHER,LOCK

€ 2.50

083220108B
ref: 11

WASHER

€ 1.50

4154024B01
ref: 12

HOLDER,BATTERY

€ 87.50

4157624B01
ref: 13

COVER,BATTERY

€ 20.00

0214204107
ref: 14

SCREW

€ 1.50

0932008021
ref: 15

CUSHION

€ 4.00

0918006260
ref: 16

SPACER(6.5X9X7.2)

€ 3.50

0911606010
ref: 17

BOLT(6X20)

€ 2.00

FRAME

all assemblies
