FUEL TANK (MODEL K9)

LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

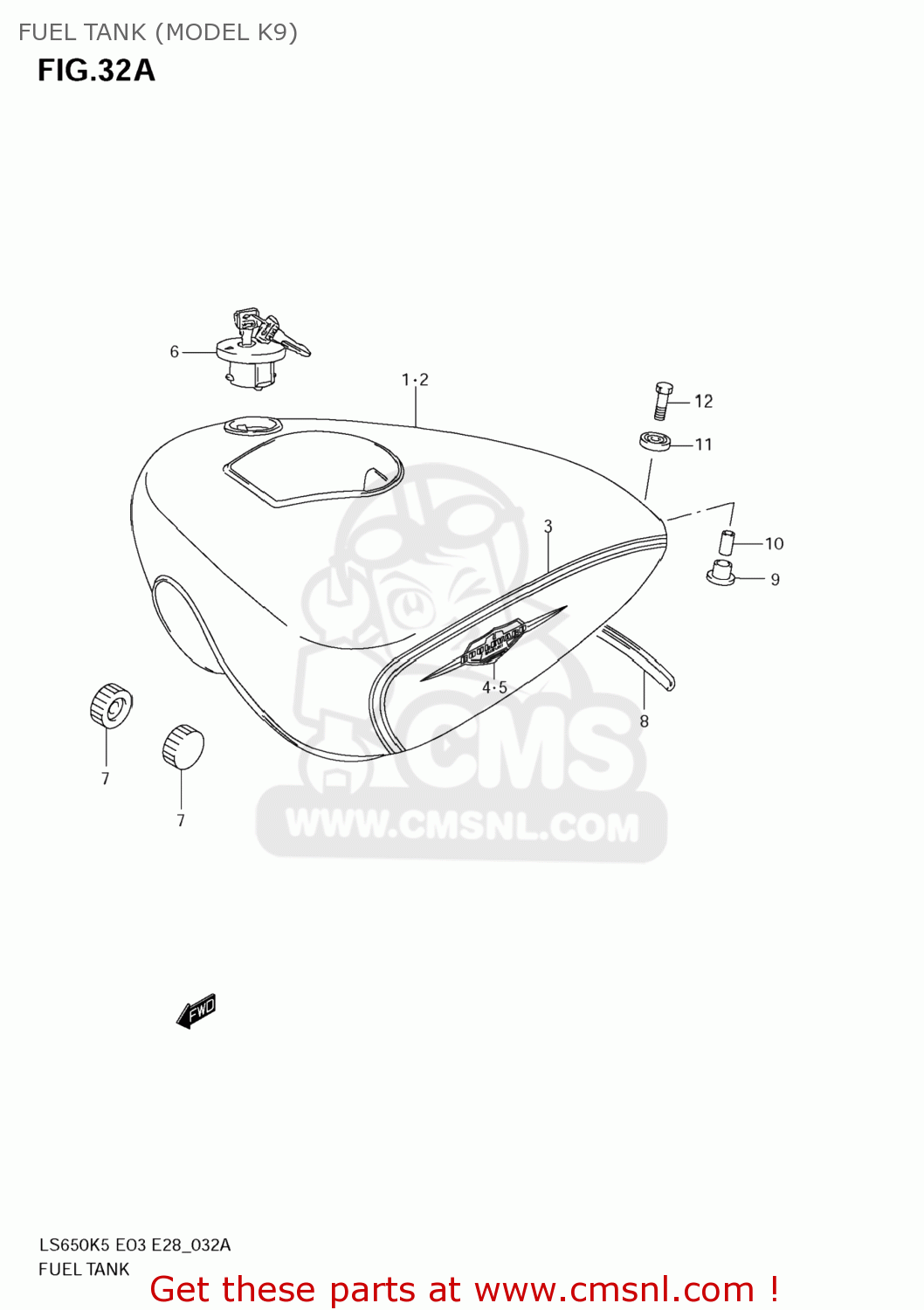

Fuel tank (model k9) diagram LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

prices are in EUR

ref

part #

description

quantity

1-1

4410024C11YAY
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 455.00

1-2

4410024C21YAY
ref: 1-2

TANK ASSY,FUEL(BLACK)

€ 455.00

2-1

4410024C30EAH
ref: 2-1

TANK ASSY,FUEL

€ 548.00

2-2

4410024C30GDW
ref: 2-2

TANK ASSY,FUEL

€ 548.00

2-3

4410024C40EAH
ref: 2-3

TANK ASSY,FUEL

€ 548.00

2-4

4410024C40GDW
ref: 2-4

TANK ASSY,FUEL

€ 548.00

3-1

6811024C00GEY
ref: 3-1

TAPE SET,FUEL TANK

€ 48.50

3-2

6811024C00GEZ
ref: 3-2

TAPE SET,FUEL TANK

€ 48.50

6811124C00
ref: 4
68111-24C01

EMBLEM, RH

€ 37.50

6812124C00
ref: 5
68121-24C01

EMBLEM, LH

€ 37.50

6-1

4420024830
ref: 6-1

CAP SET,FUEL TANK

€ 109.50

6-2

4420024820
ref: 6-2

CAP SET,FUEL TANK

€ 150.50

0932910016
ref: 7

CUSHION

€ 3.00

4455224B00
ref: 8

MOLDING,FUEL TANK RR

€ 3.50

0932010020
ref: 9

CUSHION

€ 4.00

0918006271
ref: 10

SPACER(6.5X9X18)

€ 2.00

0932014013
ref: 11

CUSHION

€ 3.00

015000630B
ref: 12

BOLT

€ 2.00
