CYLINDER

LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

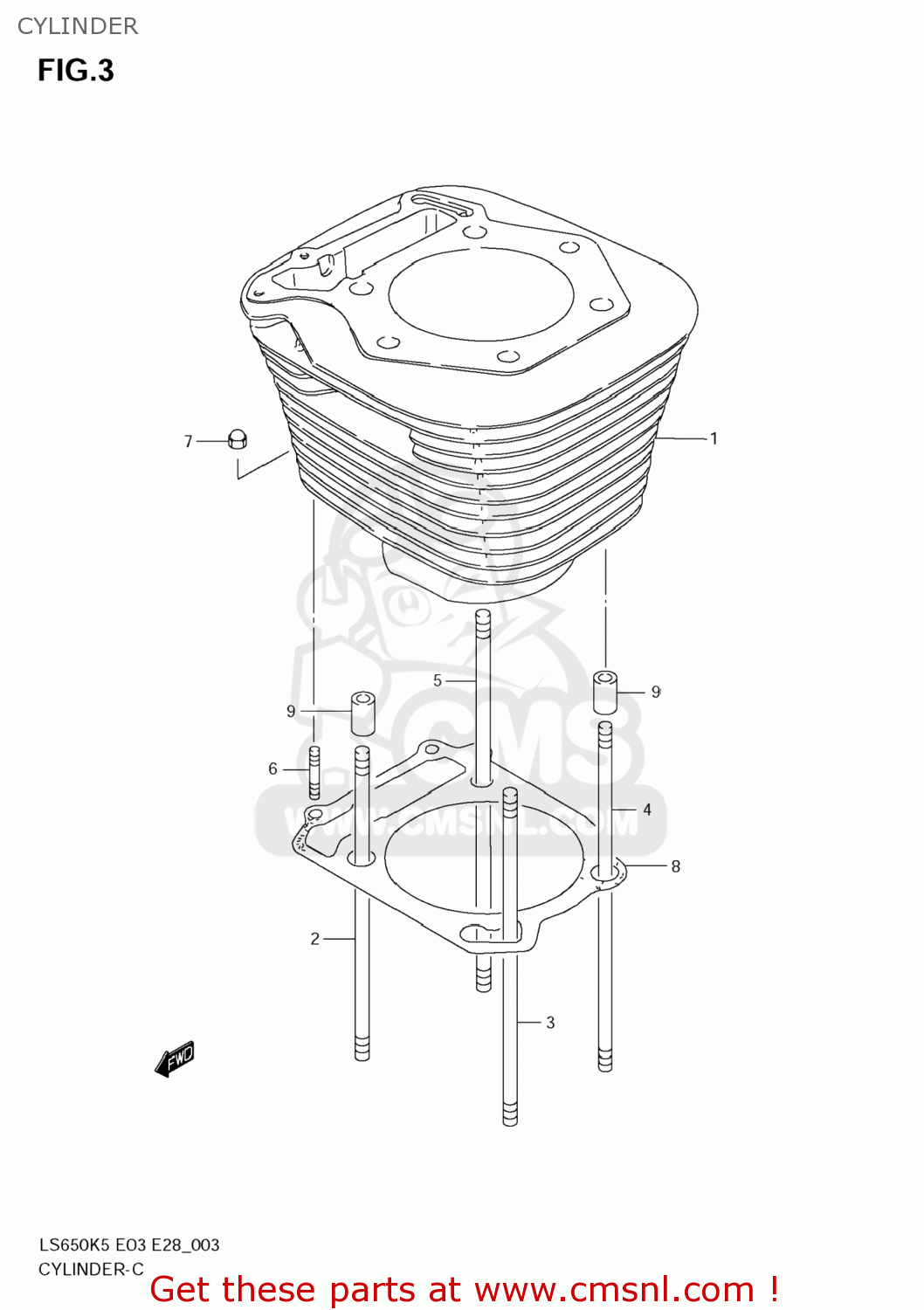

Cylinder diagram LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

CYLINDER LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

CYLINDER LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

prices are in EUR

ref

part #

description

quantity

1

1121024B100F0
ref: 1

CYLINDER

€ 490.50

2

0910809001
ref: 2

BOLT,STUD

€ 7.50

3

0910809002
ref: 3

BOLT,STUD

€ 8.50

4

0910809003
ref: 4

BOLT,STUD

€ 9.00

5

0910809004
ref: 5

BOLT,STUD

€ 9.00

6

014210620B
ref: 6

BOLT,STUD

€ 2.00

7

0914506007
ref: 7

NUT

€ 0.00

8

1124124B01H17
ref: 8

GASKET,CYLINDER (NAS)

€ 10.00

9

0421113189
ref: 9

PIN

€ 2.50
