MAGNETO

LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

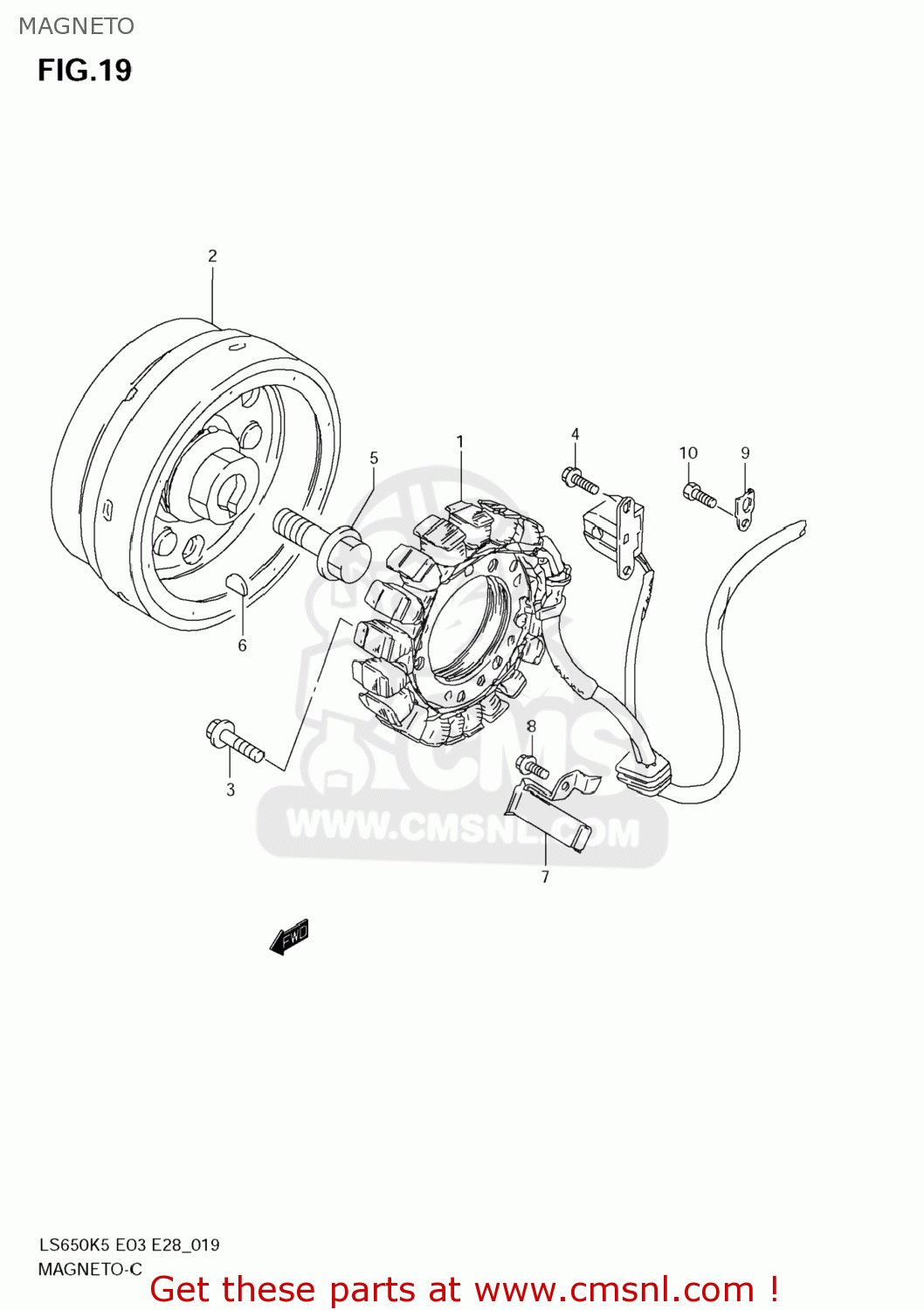

Magneto diagram LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

MAGNETO LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

MAGNETO LS650 BOULEVARD S40 2009 (K9) USA CANADA (E03 E28)

prices are in EUR

ref

part #

description

quantity

1

3210124B02
ref: 1

STARTER ASSY

€ 603.00

2

3210224B10
ref: 2

ROTOR ASSY

€ 463.00

3

015470625B
ref: 3

BOLT

€ 2.50

4

015470510B
ref: 4

BOLT

€ 2.50

5

0910314001
ref: 5

BOLT(14X43)

€ 7.00

6

0942005007
ref: 6

KEY

€ 3.00

7

3237124B00
ref: 7

CLAMP,MAGNETO LEAD WIRE NO.1

€ 3.00

8

015470510B
ref: 8

BOLT

€ 2.50

9

3149745000
ref: 9

CLAMP,GENERATOR LEAD WIRE

€ 1.50

10

0910005019
ref: 10

BOLT(5X10)

€ 1.50
