AIR CLEANER

LS650 BOULEVARD S40 2011 (L1) USA CALIFORNI CANADA (E03 E33 E28)

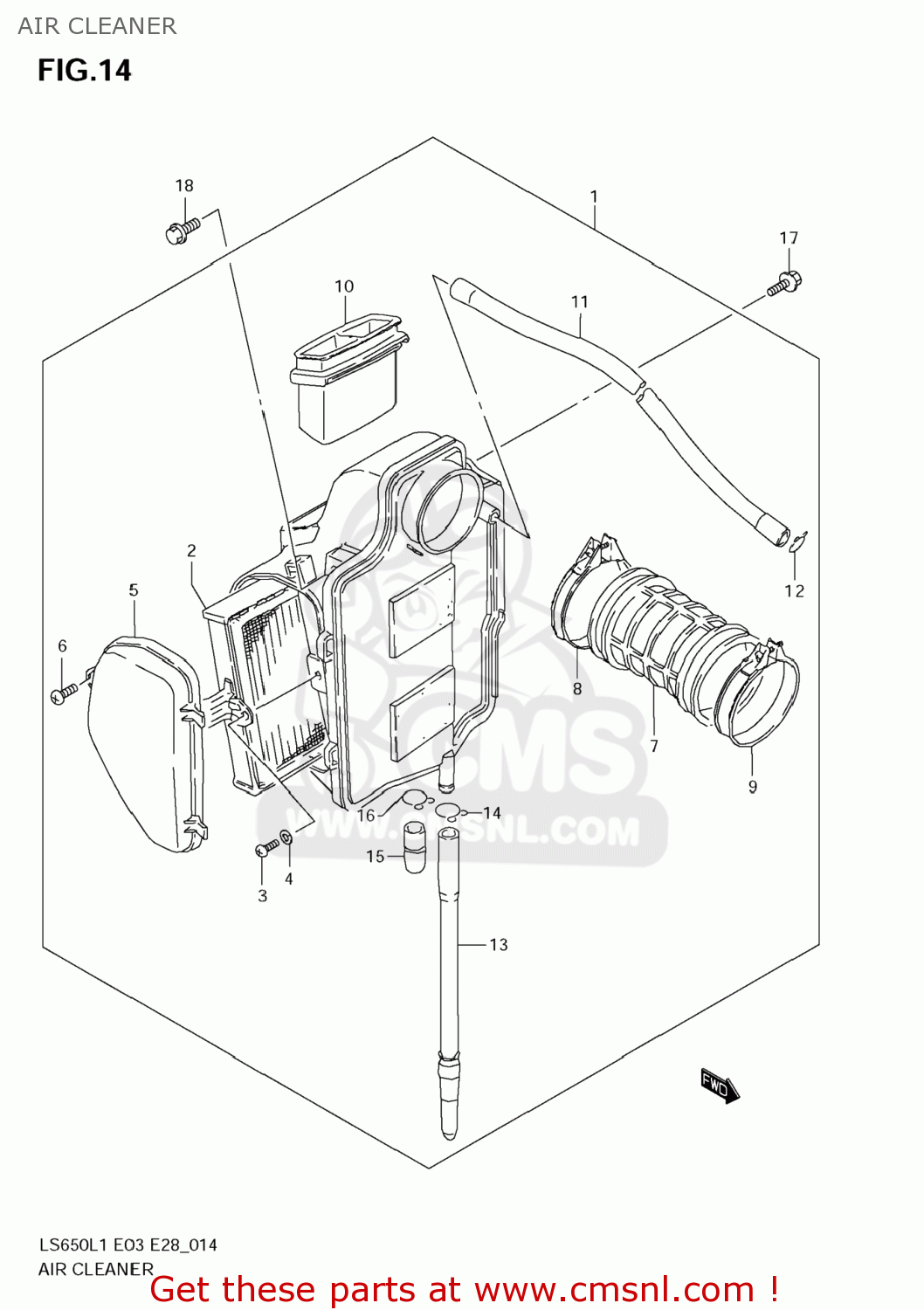

Air cleaner diagram LS650 BOULEVARD S40 2011 (L1) USA CALIFORNI CANADA (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1370024B05
ref: 1

CLEANER ASSY,AIR

€ 81.00

1378024B01
ref: 2

FILTER ASSY,AIR

€ 31.50

0211205107
ref: 3

SCREW

€ 2.00

083210105A
ref: 4

WASHER,LOCK

€ 2.00

1374024B01
ref: 5

CAP,AIR CLEANER

€ 13.50

021420512A
ref: 6

SCREW

€ 1.50

1388124B01
ref: 7

TUBE,AIR CLEANER OUTLET

€ 17.50

0940270902
ref: 8

CLAMP

€ 6.00

0940264203
ref: 9

CLAMP

€ 6.00

1389124B00
ref: 10

TUBE,INLET

€ 13.00

0935211153600
ref: 11

HOSE(11X15X600)

€ 13.50

0940114301
ref: 12

CLIP

€ 2.00

1387011458
ref: 13

TUBE,DRAIN

€ 13.50

0940113409
ref: 14

CLIP

€ 2.50

1385941B10
ref: 15

PLUG

€ 5.50

0940114301
ref: 16

CLIP

€ 2.00

0911606006
ref: 17

BOLT(6X16)

€ 2.00

015500612B
ref: 18

BOLT

€ 2.50
