LS650 BOULEVARD S40 2011 (L1) USA CALIFORNI CANADA (E03 E33 E28)

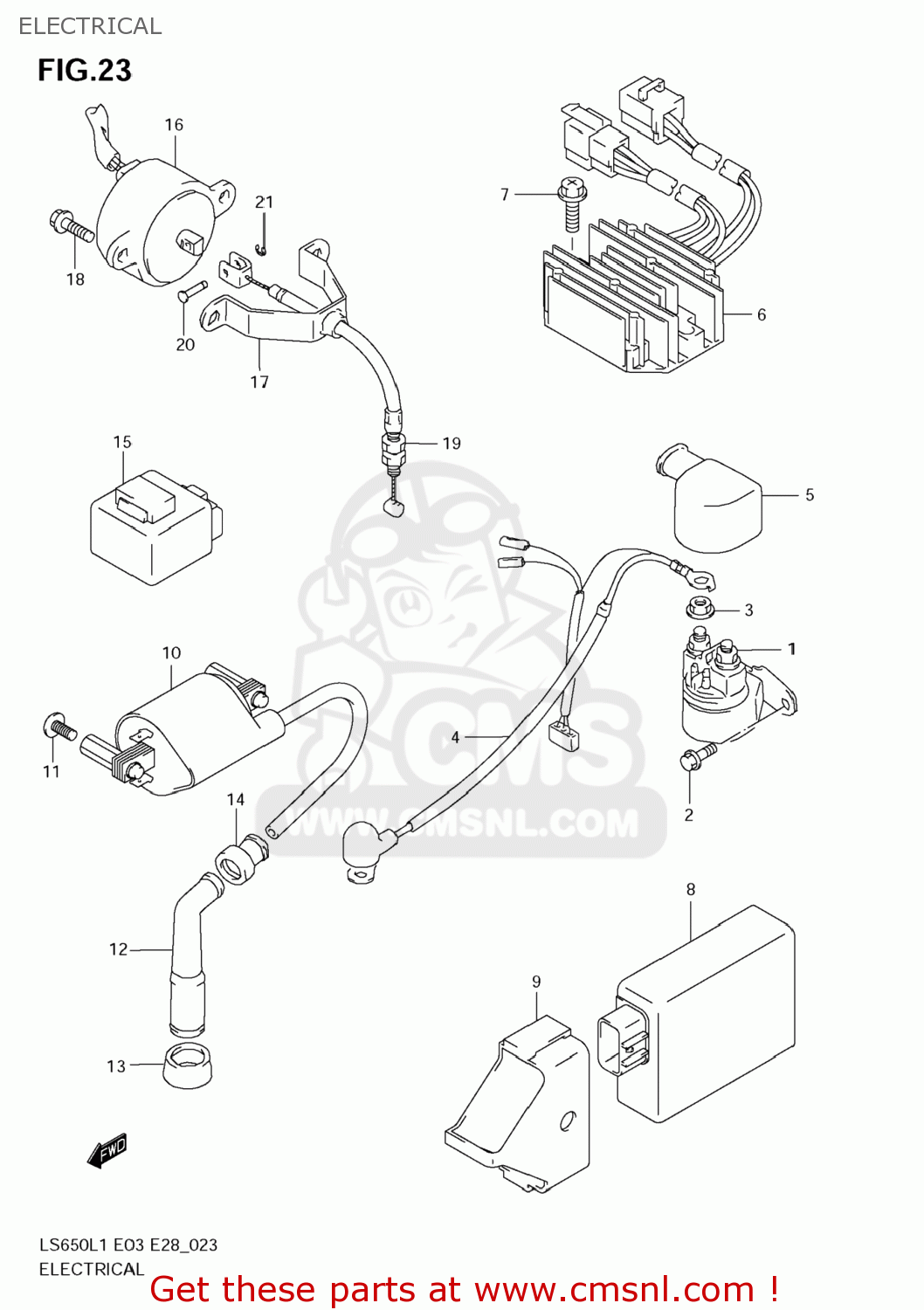

Electrical diagram LS650 BOULEVARD S40 2011 (L1) USA CALIFORNI CANADA (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

015500610B
ref: 2

BOLT

€ 2.50

083613506A
ref: 3

NUT

€ 2.00

3385024B10
ref: 4

WIRE,STARTER MOTOR

€ 27.00

3362449401
ref: 5

CAP,STARTER RELAY TERMINAL

€ 5.00

3280024B11
ref: 6

RECTIFIER ASSY

€ 243.50

021620620B
ref: 7

SCREW

€ 2.00

3290024B30
ref: 8

IGNITOR ASSY

€ 423.50

3298024B00
ref: 9

CUSHION,IGNITOR

€ 8.50

3341024B00
ref: 10

COIL ASSY,IGNITION

€ 121.50

021420512B
ref: 11

SCREW

€ 1.50

3351045010
ref: 12

CAP ASSY,SPARK PLUG

€ 23.00

3354138210
ref: 13

SEAL,SPARK PLUG

€ 7.00

3354238B00
ref: 14

SEAL,HIGH TENSION CORD

€ 4.50

3291024B10
ref: 15

CONTROL UNIT,DECOMP

€ 69.50

3397024B00
ref: 16

SOLENOID ASSY,DECOMP

€ 174.00

3397124B00
ref: 17

BRACKET,DECOMP SOLENOID

€ 10.00

015500616B
ref: 18

BOLT

€ 2.50

5890024B01
ref: 19

CABLE ASSY,DECOMP

€ 21.00

0920904020
ref: 20

PIN(4X12.5)

€ 5.50

083321103A
ref: 21

E RING

€ 1.50
