REAR COMBINATION LAMP

LS650 BOULEVARD S40 2011 (L1) USA CALIFORNI CANADA (E03 E33 E28)

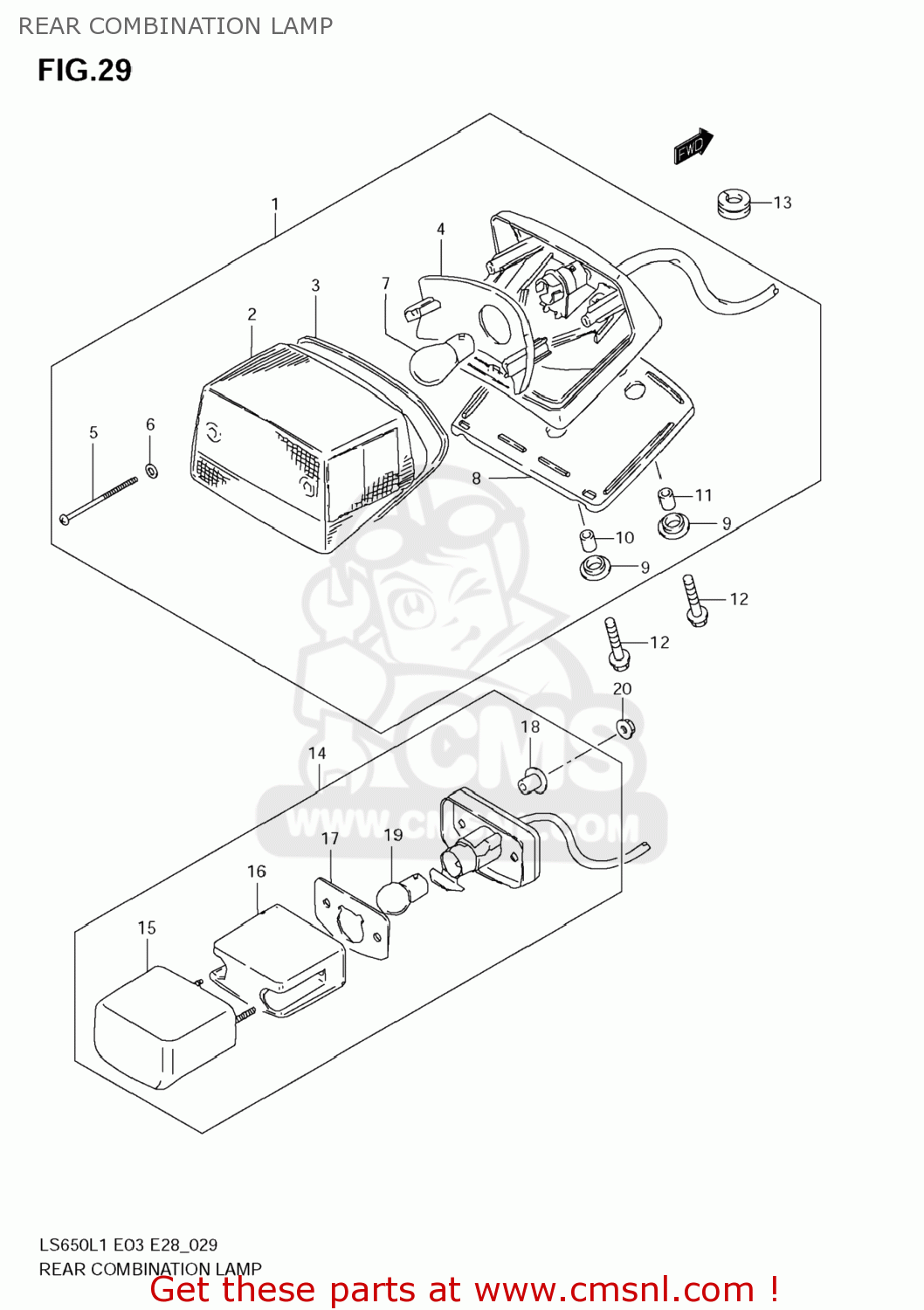

Rear combination lamp diagram LS650 BOULEVARD S40 2011 (L1) USA CALIFORNI CANADA (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

3571024B40
ref: 1

LAMP ASSY,RR COMBINATION

€ 0.00

3571224B30
ref: 2

LENS

€ 28.50

3571324B00
ref: 3

GASKET (NAS)

€ 5.50

3571438A00
ref: 4

REFLECTOR

€ 16.50

3572344130
ref: 5

SCREW

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0947112128
ref: 7

BULB(12V21/5W,BF141-49642A)

€ 6.00

3576524B00
ref: 8

CUSHION

€ 12.00

3576426470
ref: 9

CUSHION

€ 2.50

3576640640
ref: 10

SPACER

€ 0.00

3576624B40
ref: 11

SPACER

€ 0.00

0911606093
ref: 12

BOLT(6X25)

€ 2.00

0930809004
ref: 13

GROMMET

€ 0.00

3591024B50
ref: 14

LAMP ASSY,LICENSE

€ 0.00

3591717C10
ref: 15

COVER,LENS

€ 72.00

3591238A30
ref: 16

LENS

€ 11.50

3591338A30
ref: 17

GASKET,LICENSE LAMP (NAS)

€ 2.00

3596624B40
ref: 18

SPACER

€ 0.00

0947112140
ref: 19
09471-12058

BULB(12V5W,BF150-40160A)

€ 4.00

083161004B
ref: 20

NUT

€ 2.00
