Buy Suzuki LS Parts Online


FOOTREST

LS650 BOULEVARD S40 2011 (L1) USA CALIFORNI CANADA (E03 E33 E28)

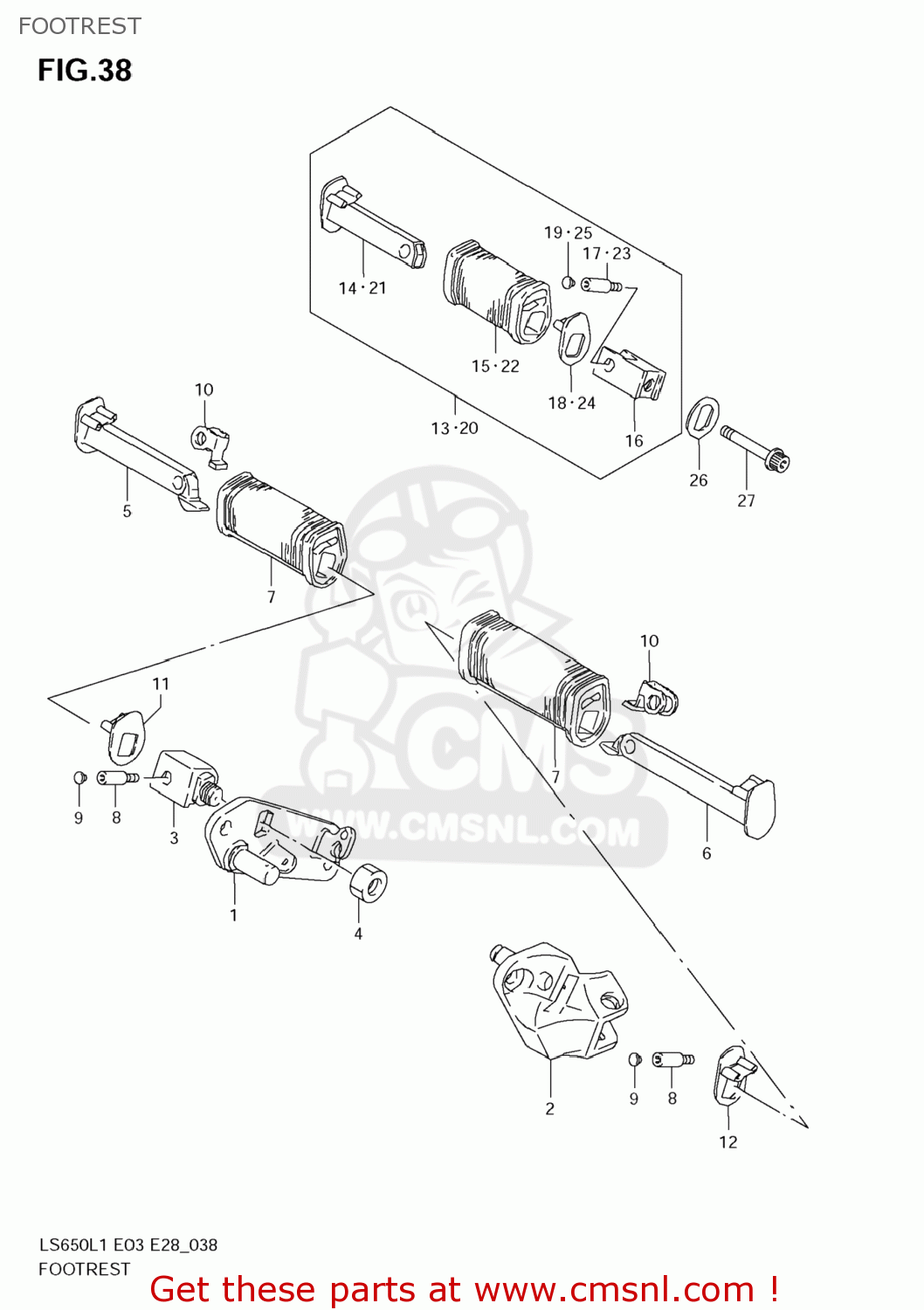

Footrest diagram LS650 BOULEVARD S40 2011 (L1) USA CALIFORNI CANADA (E03 E33 E28)

FOOTREST LS650 BOULEVARD S40 2011 (L1) USA CALIFORNI CANADA (E03 E33 E28)
FOOTREST LS650 BOULEVARD S40 2011 (L1) USA CALIFORNI CANADA (E03 E33 E28)
FOOTREST LS650 BOULEVARD S40 2011 (L1) USA CALIFORNI CANADA (E03 E33 E28)
prices are in EUR
ref
part #
description
quantity
1
4351024B00
ref: 1
BRACKET,FR FOOTREST,R
4351024B00
€ 144.00
2
4352024B22
ref: 2
BRACKET,FR FOOTREST,L
4352024B22
€ 166.00
3
4351724B01
ref: 3
HOLDER,FR FOOTREST,R
4351724B01
€ 59.00
4
0914016029
ref: 4
NUT
0914016029
€ 3.50
5
4353024B02
ref: 5
BAR,FR FOOTREST,R
4353024B02
€ 39.00
6
4354024B02
ref: 6
BAR,FR FOOTREST,L
4354024B02
€ 39.00
7
4355138A00
ref: 7
RUBBER,FR FOOTREST
4355138A00
€ 9.00
8
0910606100
ref: 8
BOLT(6X8)
0910606100
€ 5.00
9
4357624B00
ref: 9
CAP,PILLION FOOTREST BOLT
4357624B00
€ 3.00
9
4357624B00
ref: 9
CAP,PILLION FOOTREST BOLT
4357624B00
€ 3.00
10
4357024B01
ref: 10
CUSHION,FR FOOTREST
4357024B01
€ 5.50
11
4347024B00
ref: 11
WASHER,FR FOOTREST,R
4347024B00
€ 4.50
12
4348024B00
ref: 12
WASHER,FR FOOTREST,L
4348024B00
€ 4.50
13
4360024B00
ref: 13
FOOTREST ASSY,PILLION,R
4360024B00
€ 81.00
14
4361024B01
ref: 14
BAR,PILLION FOOTREST,R
4361024B01
€ 20.50
15
4365124B00
ref: 15
RUBBER,PILLION FOOTREST
4365124B00
€ 9.50
16
4362124B10
ref: 16
HOLDER,PILLION FOOTREST
4362124B10
€ 38.50
17
0910606100
ref: 17
BOLT(6X8)
0910606100
€ 5.00
18
4357038A00
ref: 18
WASHER,FR FOOTREST,R
4357038A00
€ 5.00
19
4357624B00
ref: 19
CAP,PILLION FOOTREST BOLT
4357624B00
€ 3.00
20
4370024B00
ref: 20
FOOTREST ASSY,PILLION,L
4370024B00
€ 81.00
21
4371024B01
ref: 21
BAR,PILLION FOOTREST,L
4371024B01
€ 24.00
22
4365124B00
ref: 22
RUBBER,PILLION FOOTREST
4365124B00
€ 9.50
23
0910606100
ref: 23
BOLT(6X8)
0910606100
€ 5.00
24
4358038A00
ref: 24
WASHER,FR FOOTREST,L
4358038A00
€ 8.50
25
4357624B00
ref: 25
CAP,PILLION FOOTREST BOLT
4357624B00
€ 3.00
26
4362224B00
ref: 26
WASHER,PILLION FOOTREST HOLDER
4362224B00
€ 2.00
26
4362224B00
ref: 26
WASHER,PILLION FOOTREST HOLDER
4362224B00
€ 2.00
27
0910610086
ref: 27
BOLT(10X45)
€ 3.50
