OIL PUMP

LS650 BOULEVARD S40 2011 (L1) USA CALIFORNI CANADA (E03 E33 E28)

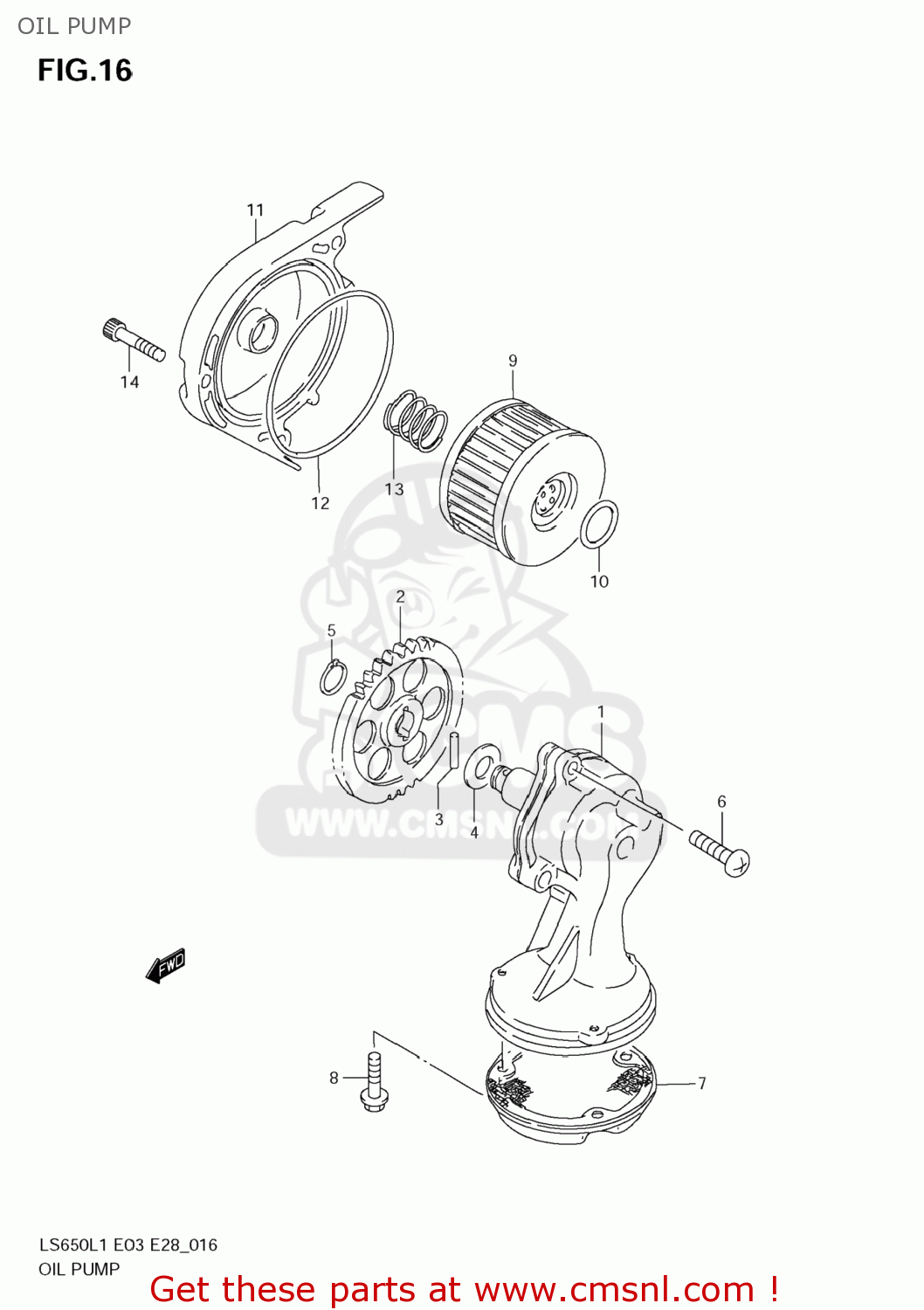

Oil pump diagram LS650 BOULEVARD S40 2011 (L1) USA CALIFORNI CANADA (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1640024B00
ref: 1

PUMP ASSY,ENGINE OIL

€ 150.00

1633124B00
ref: 2

GEAR,ENG OIL PUMP DRIVEN

€ 43.00

0926104009
ref: 3

PIN(4X15.8)

€ 1.50

0918110158
ref: 4

SHIM(10X18X0.5)

€ 2.50

083313110A
ref: 5

CIRCLIP

€ 2.00

021120625A
ref: 6

SCREW

€ 2.00

1652024B00
ref: 7

STRAINER,ENGINE OIL

€ 10.00

015800512A
ref: 8

BOLT

€ 2.00

1651037450
ref: 9

FILTER ASSY,ENGINE OIL

€ 7.50

0928015007
ref: 10

O RING(D:2.4,ID:15.8)

€ 2.00

1651224B00
ref: 11

CAP,OIL FILTER

€ 48.50

0928072001
ref: 12

O RING(D:2.4,ID:73)

€ 5.00

0944021006
ref: 13

SPRING

€ 2.50

0910606090
ref: 14

BOLT(6X25)

€ 2.50
