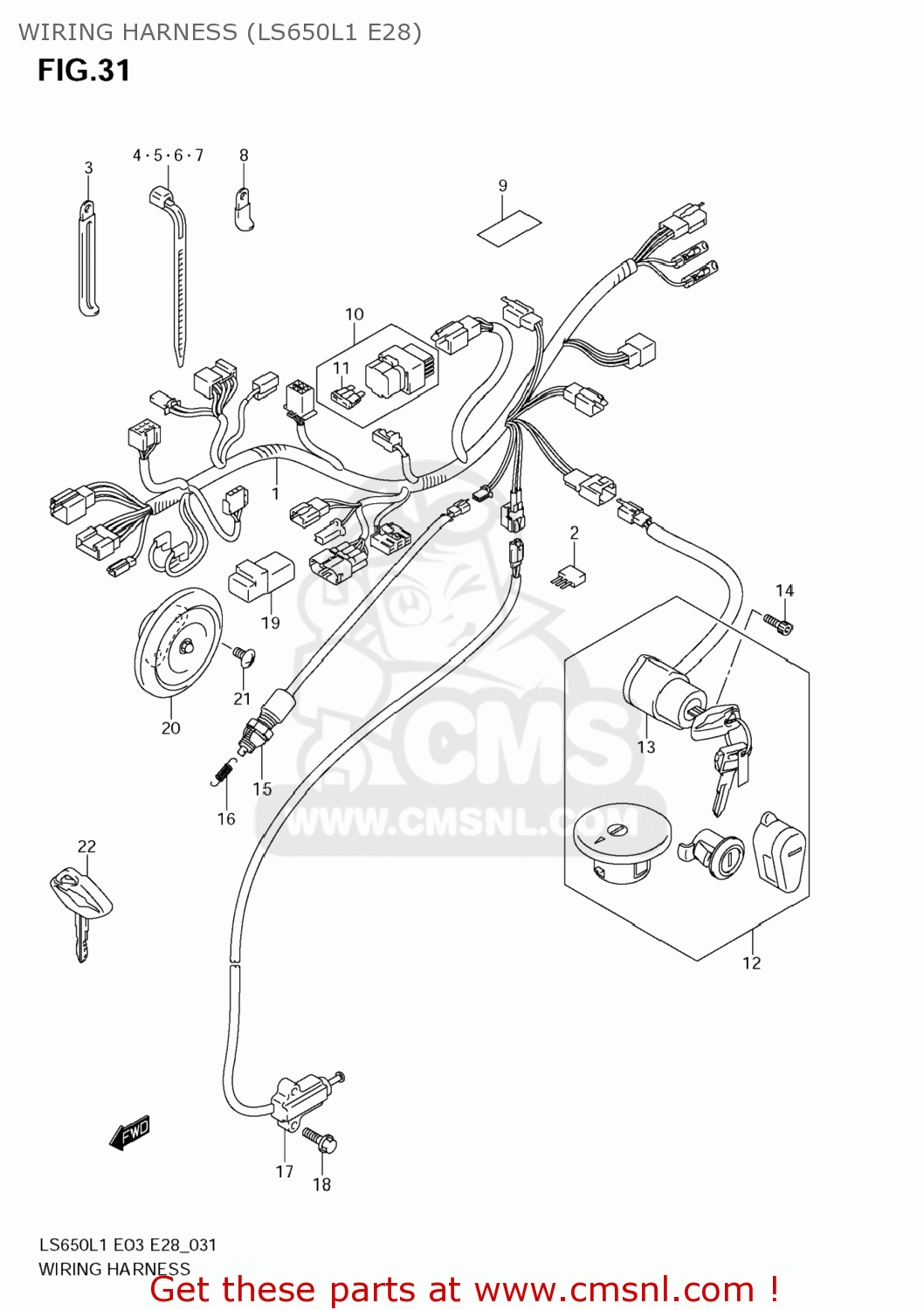

WIRING HARNESS (LS650L1 E28)

ref

part #

description

quantity

1

3661024BD0
ref: 1

HARNESS,WIRING

€ 0.00

2

3661138A00
ref: 2

DIODE(STANLEY DE8804)

€ 13.00

3

0940408419
ref: 3

CLAMP(L:80)

€ 2.00

4

0940711401
ref: 4

CLAMP(L:95)

€ 2.50

5

0940714403
ref: 5

CLAMP(L:125)

€ 2.50

6

0940718402
ref: 6

CLAMP(L:165)

€ 2.50

7

0940725401
ref: 7

CLAMP(L:235)

€ 4.00

8

3665124B10
ref: 8

CLAMP,WIRING HARNESS

€ 0.00

9

3693060A10
ref: 9

COVER

€ 5.00

10

3674024B01
ref: 10

BOX ASSY,FUSE

€ 18.00

11

0948120101
ref: 11

FUSE(20A)

€ 2.00

12

3710124830
ref: 12

LOCK SET

€ 0.00

13

3711024B10
ref: 13

SWITCH ASSY,IGNITION

€ 134.50

14

071300516B
ref: 14

BOLT

€ 2.00

15

3774045D00
ref: 15
37740-31D00

SWITCH ASSY,STOP LAMP

€ 20.50

16

0944306077
ref: 16

SPRING

€ 4.50

17

3784012X50
ref: 17

SWITCH ASSY,SIDE STAND WARNING

€ 76.00

18

015500620B
ref: 18

BOLT

€ 2.50

19

3874024X50
ref: 19

RELAY ASSY

€ 37.50

20

3850024B00
ref: 20

HORN ASSY

€ 52.00

21

021420612B
ref: 21

SCREW

€ 2.00

22-1

3714638B00
ref: 22-1

KEY,BLANK(TYPE:C)

€ 0.00

22-2

3714638B10
ref: 22-2

KEY,BLANK(TYPE:D)

€ 51.50

22-3

3714638B20
ref: 22-3

KEY,BLANK(TYPE:E)

€ 0.00

22-4

3714638B30
ref: 22-4

KEY,BLANK(TYPE:F)

€ 51.50
