FRAME

LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)

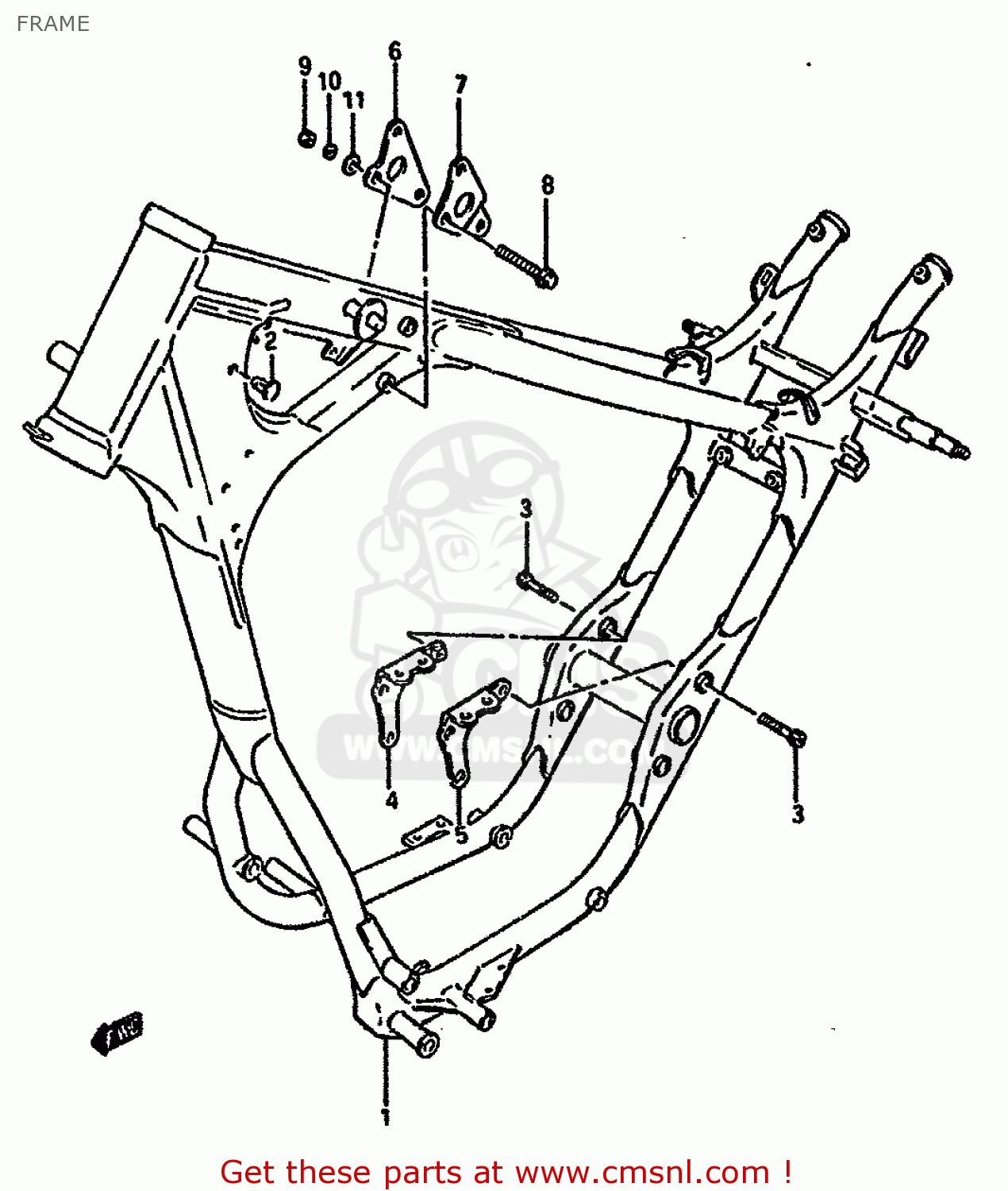

Frame diagram LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

1-1

4110024B00019
ref: 1-1
MODEL G/J

FRAME

€ 562.50

1-2

4110024B01019
ref: 1-2
MODEL K/L/M/R

FRAME(BLACK)

€ 562.50

0940906306
ref: 2

CLIP

€ 2.00

0910608074
ref: 3

BOLT(8X40)

€ 3.50

4197024B00019
ref: 4

PLATE,ENGINE MOUNT NO.4,R

€ 10.50

4198024B00019
ref: 5

PLATE,ENGINE MOUNT NO.4,L

€ 10.50

4199124B00019
ref: 6

PLATE,ENGINE MOUNT NO.5,R

€ 7.50

4199224B00019
ref: 7

PLATE,ENGINE MOUNT NO.5,L

€ 7.50

8-1

0910308037
ref: 8-1
MODEL G/J/K/L/M

BOLT(8X67)

€ 6.50

8-2

0910308279
ref: 8-2
MODEL R

BOLT(8X72)

€ 4.50

0831921086
ref: 9

NUT,T/F SHIFT LEVER

€ 1.50

0832121086
ref: 10

WASHER,LOCK,8.

€ 2.50

0832211086
ref: 11

WASHER 8MM

€ 1.50
