Buy Suzuki LS Parts Online


FRONT FORK

LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)

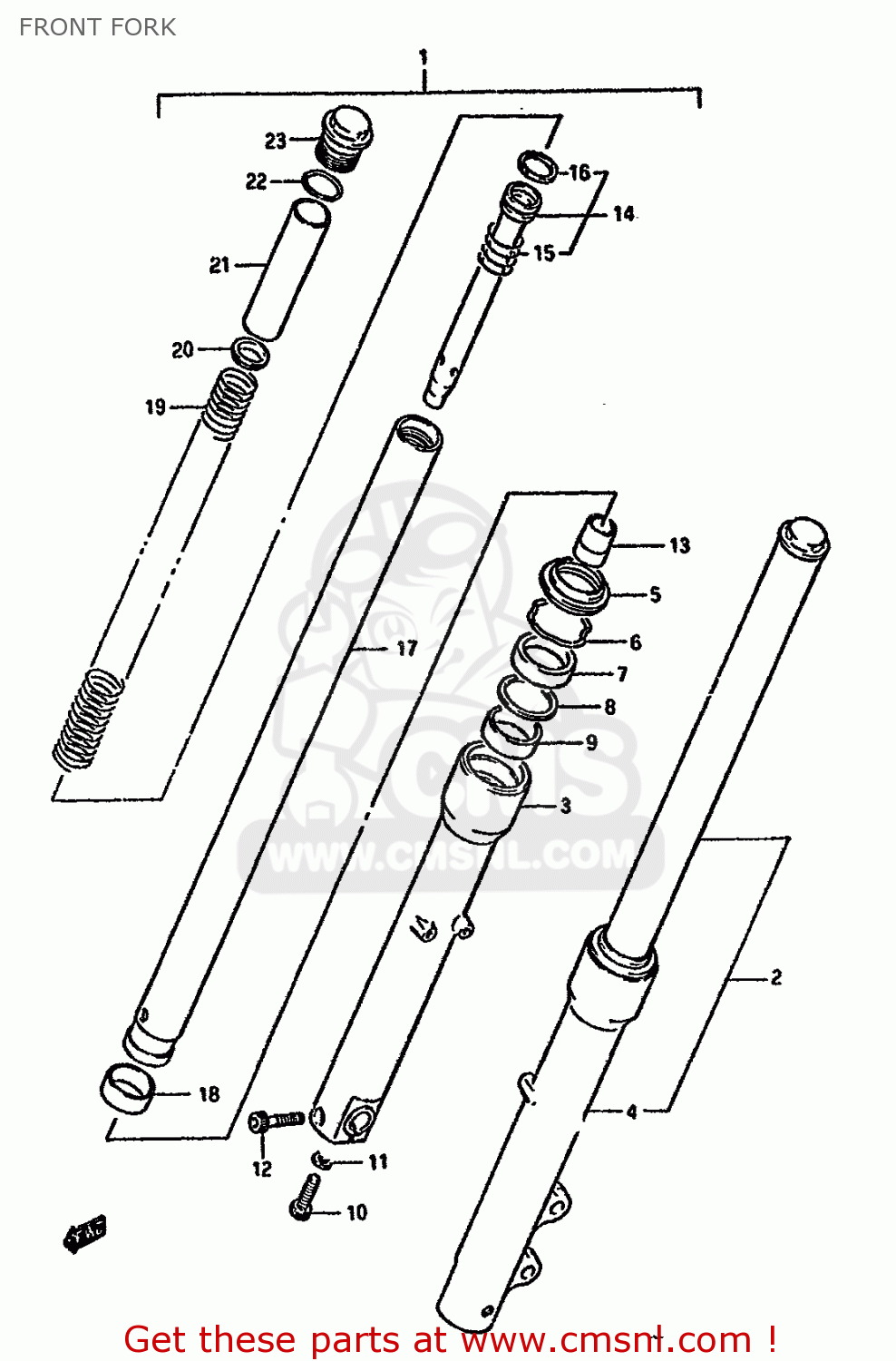

Front fork diagram LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)

FRONT FORK LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)
FRONT FORK LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)
FRONT FORK LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
5110324B00
ref: 1-1
MODEL G
DAMPER ASSEMBLY,RIGHT
5110324B00
€ 454.50
1-2
5110324B01
ref: 1-2
MODEL J/K/L/M/R
DAMPER ASSY,FR FORK,R
€ 454.50
2-1
5110424B00
ref: 2-1
MODEL G
DAMPER ASSEMBLY,LEFT
€ 454.50
2-2
5110424B01
ref: 2-2
MODEL J/K/L/M/R
DAMPER ASSY,FR FORK,L
5110424B01
€ 454.50
3
5113024B00
ref: 3
TUBE,OUTER,R
5113024B00
€ 275.00
4
5114024B00
ref: 4
TUBE,OUTER,L
5114024B00
€ 275.00
5
5117320A00
ref: 5
SEAL,DUST
5117320A00
€ 11.50
6
5115640301
ref: 6
RING,STOPPER
5115640301
€ 4.50
7
5115320A00
ref: 7
SEAL,OIL
5115320A00
€ 13.50
8
5115814100
ref: 8
WASHER(40X50X2.3)
5115814100
€ 2.50
9-1
5116714100
ref: 9-1
MODEL G/J/K
METAL,SLIDE
5116714100
€ 7.00
9-2
5116713A00
ref: 9-2
MODEL L/M/R
METAL,SLIDE
5116713A00
€ 7.00
10
5114716510
ref: 10
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
11
5114841310
ref: 11
GASKET (NAS)
5114841310
€ 2.50
12
0711008388
ref: 12
BOLT
€ 3.50
13-1
5119524B00
ref: 13-1
MODEL G
PIECE,OIL LOCK
€ 0.00
13-2
5119524B01
ref: 13-2
MODEL J/K/L/M/R
PIECE,OIL LOCK
5119524B01
€ 9.50
14-1
5114624B00
ref: 14-1
MODEL G
CYLINDER
€ 0.00
14-2
5114624B01
ref: 14-2
MODEL J/K/L/M/R
CYLINDER
5114624B01
€ 53.00
15
5117749440
ref: 15
SPRING,REBOUND
5117749440
€ 6.50
16
5119605A00
ref: 16
RING,PISTON
5119605A00
€ 7.50
17-1
5112024B00
ref: 17-1
MODEL G
TUBE,FORK,INNER
€ 248.50
17-2
5112024B01
ref: 17-2
MODEL J/K/L/M/R
TUBE,INNER
€ 301.50
18
5112114100
ref: 18
PISTON
5112114100
€ 10.50
19
5117124B00
ref: 19
SPRING
5117124B00
€ 55.00
20
5117224A00
ref: 20
GUIDE,SPRING
€ 3.00
21-1
5117624B00
ref: 21-1
MODEL G
SPACER
€ 0.00
21-2
5117624B01
ref: 21-2
MODEL J/K/L/M/R
SPACER,SPRING
5117624B01
€ 6.50
22
5111740300
ref: 22
O RING
5111740300
€ 2.50
23
5135124B00
ref: 23
CAP
5135124B00
€ 46.00
