REAR COMBINATION LAMP

LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)

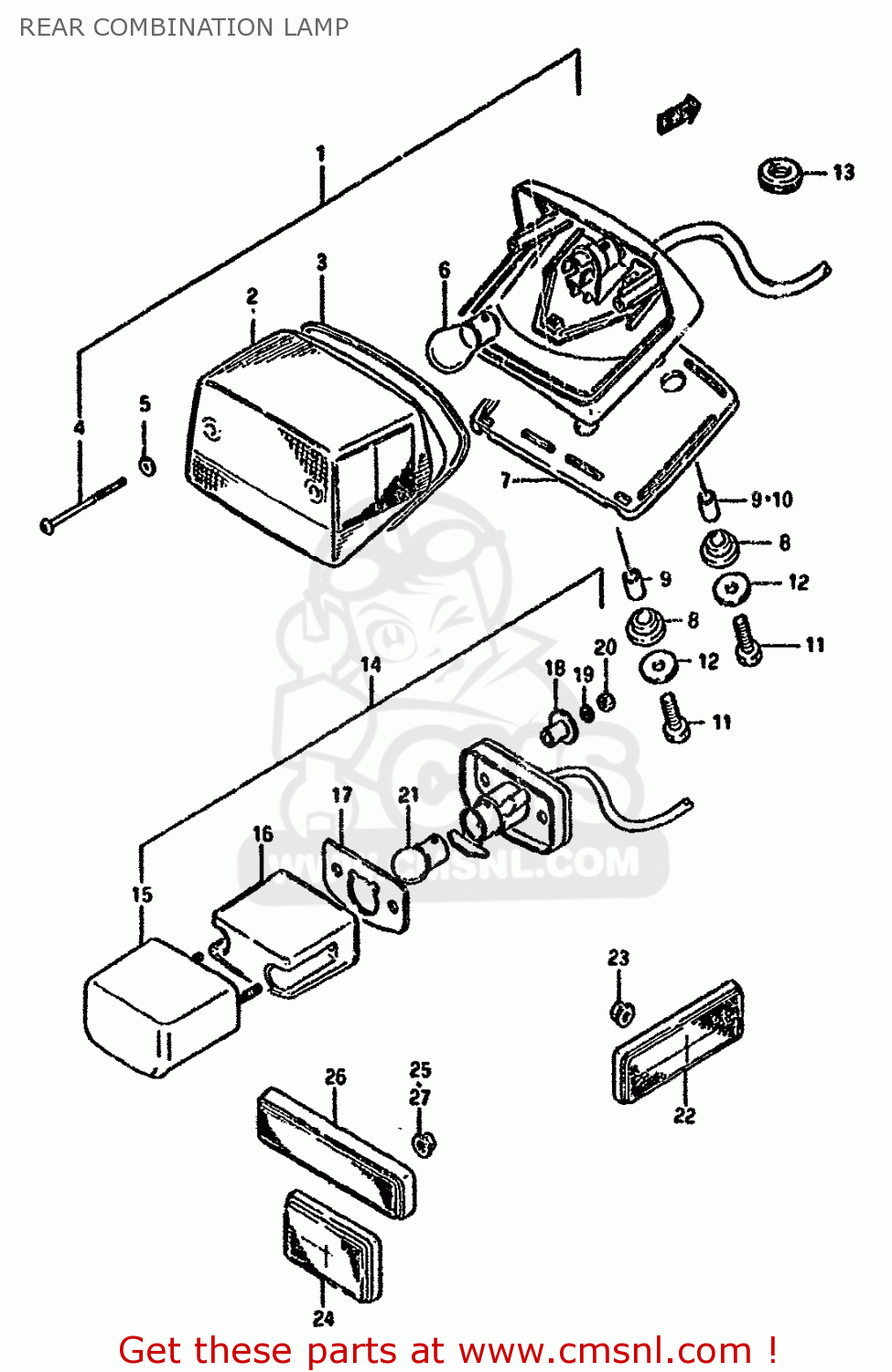

Rear combination lamp diagram LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)

REAR COMBINATION LAMP LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)
REAR COMBINATION LAMP LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)
REAR COMBINATION LAMP LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
3571024B21
ref: 1-1
MODEL G
LAMP ASSY,RR C
€ 512.00
1-2
3571024B00
ref: 1-2
MODEL J/K/L/M/P/R
LAMP ASSY,RR COMBINATION
€ 512.00
2
3571224B21
ref: 2
LENS
3571224B21
€ 127.00
3
3571338A00
ref: 3
GASKET (NAS)
3571338A00
€ 9.50
4
3572344130
ref: 4
SCREW
3572344130
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112083
ref: 6
BULB(12V21/5W)
0947112083
€ 6.00
7-1
3576524B30
ref: 7-1
MODEL G
CUSHION,REAR COMBINATION LAMP
€ 12.00
7-2
3576524B00
ref: 7-2
MODEL J/K/L/M/P/R
CUSHION
€ 12.00
8
3576426470
ref: 8
CUSHION
3576426470
€ 2.50
9-1
3576637190
ref: 9-1
MODEL G
SPACER
3576637190
€ 2.00
9-2
3576637190
ref: 9-2
MODEL J/K/L/M/P/R
SPACER
3576637190
€ 2.00
10
3576640640
ref: 10
MODEL J/K/L/M/P/R
SPACER
€ 0.00
11-1
0110706256
ref: 11-1
MODEL G/J/K/L
BOLT
€ 2.50
11-2
0911606087
ref: 11-2
MODEL M/R
BOLT 6X25
€ 2.00
12
0916006020
ref: 12
WASHER
0916006020
€ 2.00
13
0930809013
ref: 13
GROMMET
€ 2.00
14-1
3591024B20
ref: 14-1
LAMP ASSY,LICENSE
€ 298.50
14-2
3591024B00
ref: 14-2
MODEL K/M E1
LAMP ASSEMBLY,LICENSE
€ 142.50
14-3
3591024B30
ref: 14-3
MODEL G E24
LAMP ASSEMBLY,LICENSE
€ 142.50
15-1
3591738A20
ref: 15-1
COVER,LICENSE LAMP
3591738A20
€ 121.50
15-2
3591738A30
ref: 15-2
MODEL G E24,MODEL K/
COVER,LICENSE LAMP
€ 121.50
16-1
3591238A20
ref: 16-1
LENS
3591238A20
€ 13.00
16-2
3591238A30
ref: 16-2
MODEL G E24,MODEL K
LENS
3591238A30
€ 11.50
17
3591338A30
ref: 17
GASKET,LICENSE LAMP (NAS)
3591338A30
€ 2.00
18
3576624B30
ref: 18
SPACER
3576624B30
€ 2.00
19
0832121047
ref: 19
WASHER,LOCK 4M
0832121047
€ 2.00
20
0831011047
ref: 20
NUT
0831011047
€ 2.00
21-1
0947112140
ref: 21-1
BULB(12V5W,BF150-40160A)
€ 4.00
21-2
0947112141
ref: 21-2
MODEL K/M E1
BULB(12V8W)
0947112141
€ 7.00
21-3
0947112037
ref: 21-3
MODEL G E24
BULB
€ 7.00
22
3595043431
ref: 22
E39,E77
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
23
0831616056
ref: 23
NUT
€ 2.50
24
3597001A00
ref: 24
REFLEX REFLECTOR ASSY,RR
3597001A00
€ 85.00
25
0831616056
ref: 25
NUT
€ 2.50
26
3597038A00
ref: 26
MODEL G E24,MODEL K/
REFLEX REFLECTOR ASSY,RR
3597038A00
€ 25.50
27
0831616056
ref: 27
NUT
€ 2.50
