REAR WHEEL

LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)

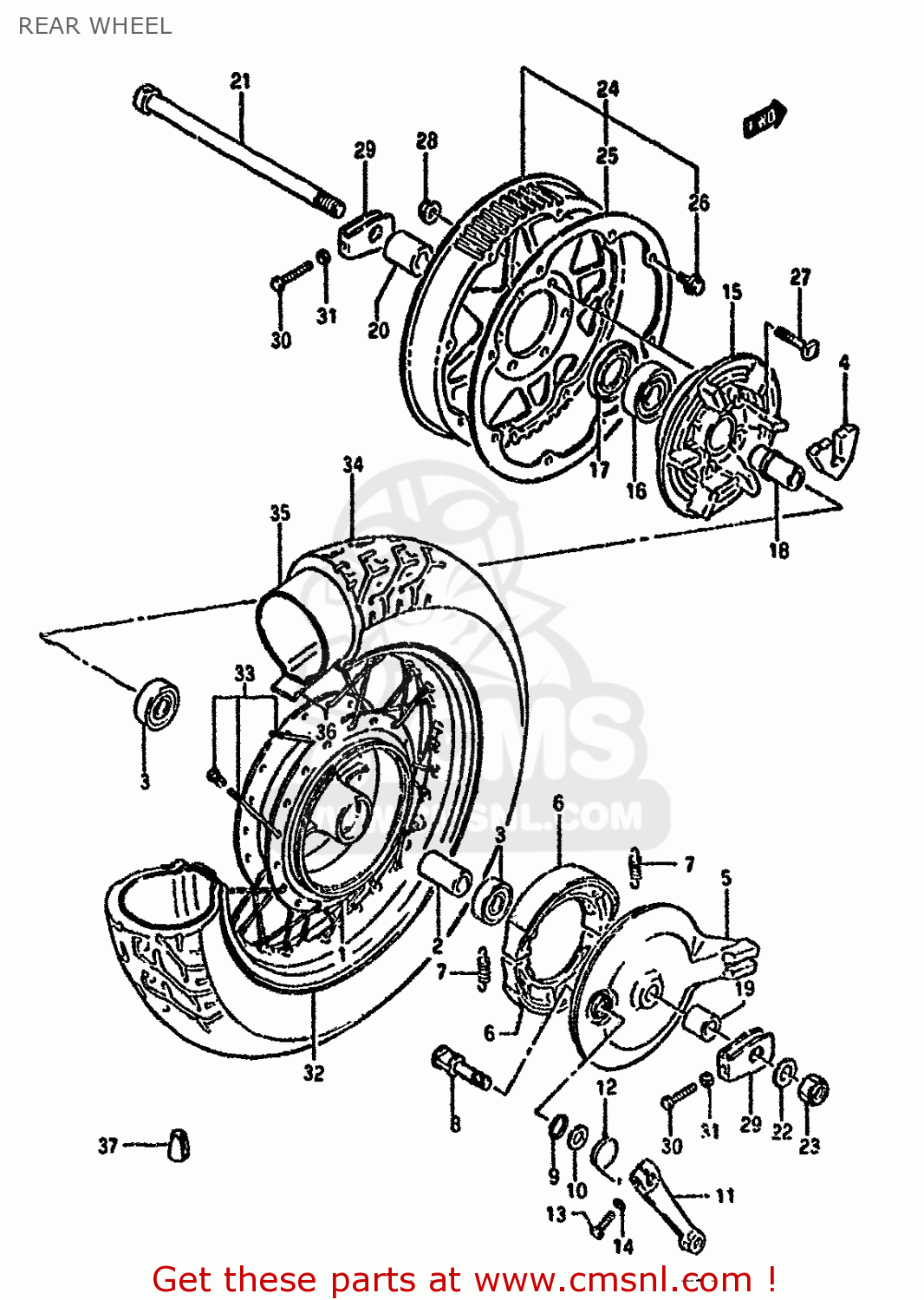

Rear wheel diagram LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)

REAR WHEEL LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)
REAR WHEEL LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)
REAR WHEEL LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1
6411024B00
ref: 1
HUB,RR WHEEL
€ 461.00
2
0918017069
ref: 2
SPACER(17.5X25X70)
0918017069
€ 15.00
3
0814363037
ref: 3
BEARING
0814363037
€ 23.00
4
6465131001
ref: 4
ABSORBER,RR HUB SHOCK
6465131001
€ 9.50
5
6421024B00
ref: 5
PANEL,REAR HUB
€ 215.00
6-1
6441011301
ref: 6-1
MODEL G MODEL J E75
SHOE,BRAKE
6441011301
€ 29.50
6-2
6441044B00
ref: 6-2
MODEL J/K/M E1,E4,E1
SHOE,BRAKE
€ 44.00
7
5542030000
ref: 7
SPRING,BRAKE SHOE
5542030000
€ 3.50
8
5444008004
ref: 8
CAM,BRAKE
5444008004
€ 19.00
9
0928015001
ref: 9
O-RING,BOSS
0928015001
€ 2.00
10
0916015001
ref: 10
WASHER (15X24X1.6)
0916015001
€ 2.50
11
6445124B00
ref: 11
LEVER,RR BRAKE CAM
6445124B00
€ 26.50
12
0944833006
ref: 12
SPRING
0944833006
€ 11.00
13-1
0110706257
ref: 13-1
MODEL G/J/K/L/M
BOLT
€ 2.00
13-2
0157006253
ref: 13-2
MODEL R
BOLT. FRONT
0157006253
€ 2.50
14
0832121067
ref: 14
MODEL G/J/K/L/M
WASHER,LOCK
0832121067
€ 2.50
15
6461131003
ref: 15
DRUM,RR SPROCKET MOUNTING
6461131003
€ 140.00
16
0926225073
ref: 16
BEARING(25X62X17)
0926225073
€ 21.50
17
0928533001
ref: 17
SEAL,OIL(33X62X7)
0928533001
€ 20.00
18
6473331300
ref: 18
RETAINER,RR SPROCKET DRUM
6473331300
€ 16.50
19
0918017082
ref: 19
SPACER(17X28X22.3)
0918017082
€ 7.00
20
0918017083
ref: 20
SPACER(17X33X35.3)
0918017083
€ 11.00
21-1
6471124B00
ref: 21-1
MODEL G/J/K/L/M
AXLE,REAR
€ 42.00
21-2
6471124B01
ref: 21-2
MODEL R
AXLE,REAR
€ 42.00
22
0916017013
ref: 22
WASHER (17X30X3.2)
0916017013
€ 2.00
23
0915916002
ref: 23
NUT
0915916002
€ 5.00
24
6451024B01
ref: 24
SPROCKET,REAR
€ 370.00
25
6451224B01
ref: 25
PLATE,REAR SPROCKET
€ 35.50
26-1
0151706128
ref: 26-1
MODEL G/J/K/L/M
BOLT
€ 2.50
26-2
0155006123
ref: 26-2
MODEL R
BOLT
0155006123
€ 2.50
27
0910510005
ref: 27
BOLT(10X40)
0910510005
€ 3.00
28
0831931105
ref: 28
NUT 10MM
€ 3.00
29
6141024B00
ref: 29
ADJUSTER,BELT
€ 10.00
30
0910408023
ref: 30
BOLT 8X35
0910408023
€ 2.00
31-1
0831022088
ref: 31-1
MODEL G/J/K/L/M
NUT 8MM
0831022088
€ 2.00
31-2
0831000087
ref: 31-2
MODEL R
NUT
0831000087
€ 2.00
32-1
6531124B00
ref: 32-1
MODEL G/J
RIM,REAR WHEEL
€ 247.00
32-2
6531124B01
ref: 32-2
MODEL K/L/M/R
RIM,RR WHEEL WM(2.75X15 M/C)
6531124B01
€ 247.00
33
6532024B00
ref: 33
SPOKE SET,RR WHEEL
6532024B00
€ 49.50
34-1
6510024B00
ref: 34-1
MODEL G/J
TIRE
€ 126.00
34-2
6510024B01
ref: 34-2
MODEL K/L/M/R
TIRE,REAR 140/80-15M/C
€ 126.00
35
6520024B00
ref: 35
TUBE ASSEMBLY,WHEEL,INNER
€ 32.50
36
6526124B01
ref: 36
PROTECTOR
€ 5.00
37-1
5541238A00
ref: 37-1
BALANCER,WHEEL
5541238A00
€ 6.50
37-2
5541338A00
ref: 37-2
BALANCER,WHEEL (30G)
€ 8.00
