HANDLEBAR-CONTROL CABLE (LS650FG/FJ/FK)

LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)

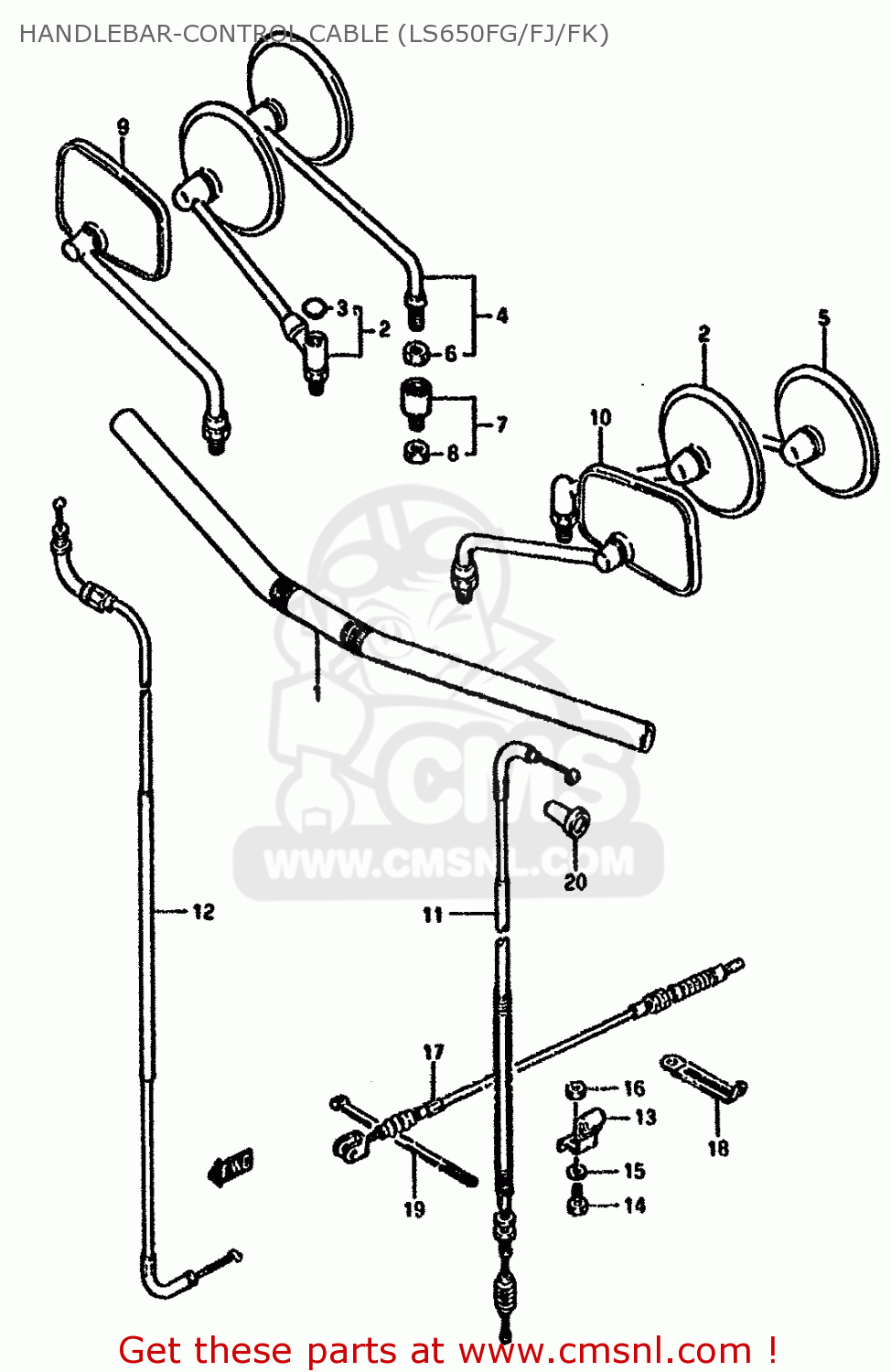

Handlebar-control cable (ls650fg/fj/fk) diagram LS650P 1989 (K) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

1-1

5611024B10
ref: 1-1
MODEL G/J, 56110-24B

HANDLEBAR

€ 98.50

1-2

5611024B30
ref: 1-2
MODEL K

HANDLEBAR

€ 98.50

5650038A50
ref: 2
E2,E4,E17,E22,E34,E7

MIRROR ASSY,R.

€ 356.00

5652428600
ref: 3

CAP

€ 4.00

5650045121
ref: 4
E16,E24

MIRROR ASSY RH

€ 209.00

5660045121
ref: 5
E16,E24

MIRROR ASSY

€ 209.00

0831022107
ref: 6
E16,E24

NUT

€ 2.50

5670031001
ref: 7
E16

CUSHION,REAR VIEW MIRROR

€ 18.00

0831022107
ref: 8
E16

NUT

€ 2.50

5650024B10
ref: 9
E1,E15,E18,E25,E39

MIRROR ASSY,RR VIEW,R

€ 78.00

5660024B10
ref: 10
E1,E15,E18,E25,E39

MIRROR ASSY,RR VIEW,L

€ 78.00

5820024B02
ref: 11

CABLE ASSY,CLUTCH

€ 36.00

5830024B02
ref: 12

CABLE ASSY,THROTTLE

€ 30.50

5862124B00
ref: 13

GUIDE,CABLE

€ 4.50

0110706165
ref: 14

BOLT 6X16

€ 2.00

0832121064
ref: 15

WASHER,LOCK

€ 2.00

0831011065
ref: 16

NUT

€ 2.00

5883024B00
ref: 17

CABLE COMP,STOP LAMP SWITCH

€ 24.00

0940408402
ref: 18

CLAMP

€ 3.50

0940709402
ref: 19

CLAMP

€ 3.00

5827331000
ref: 20

BOOT,CLUTCH CABLE

€ 2.50
