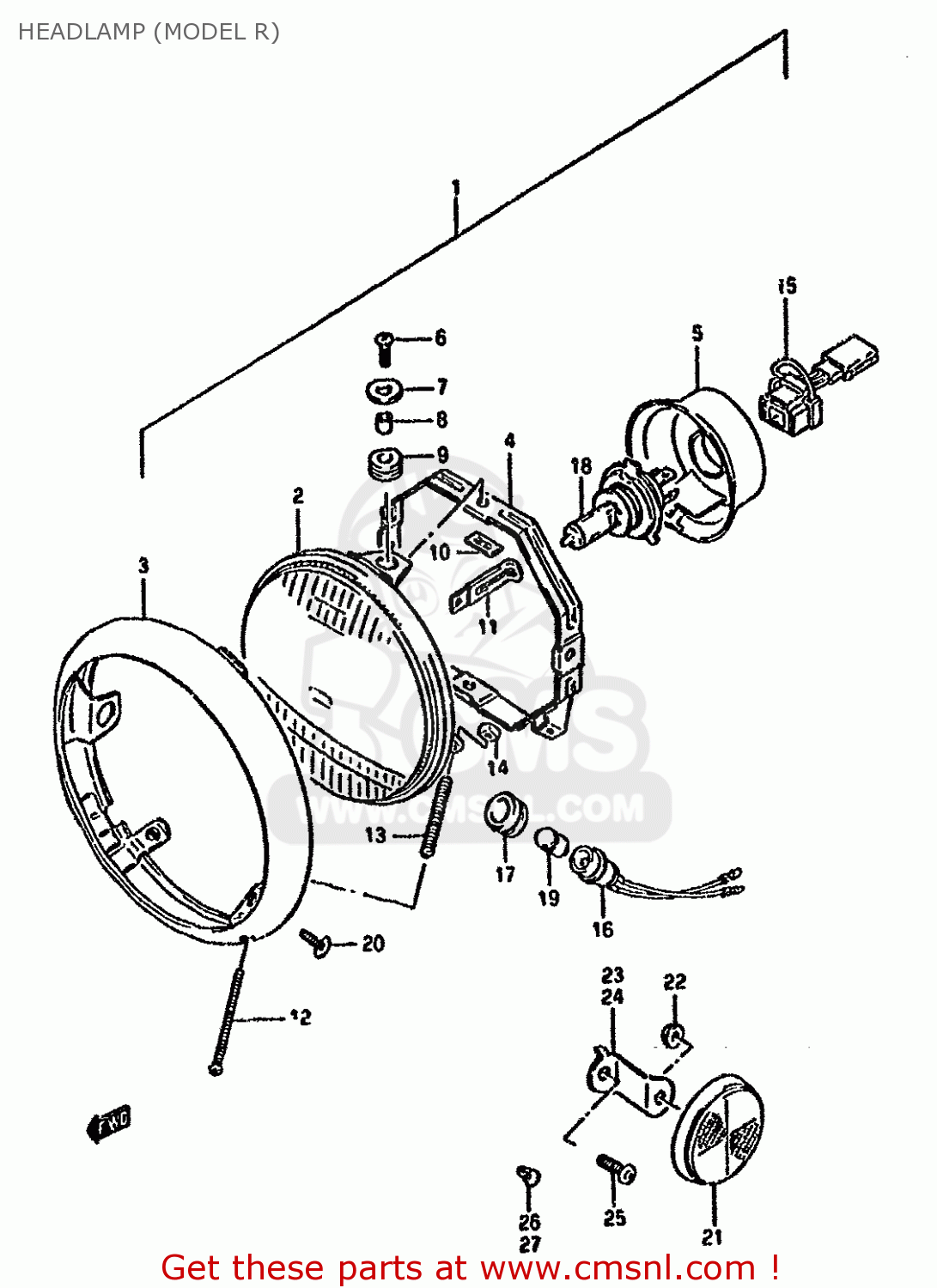

HEADLAMP (MODEL R)

ref

part #

description

quantity

1-1

3510038A00
ref: 1-1

HEADLAMP ASSY

€ 215.50

1-2

3510038A51999
ref: 1-2
E4,E15,E17,E18,E22,E

HEADLAMP ASSY

€ 216.50

2-1

3512138A00
ref: 2-1

LAMP UNIT

€ 126.50

2-2

3512138A41
ref: 2-2
E4,E15,E17,E18,E22,E

UNIT

€ 126.50

3

3511138A00
ref: 3

RIM

€ 27.00

4

3513038A00
ref: 4

RING,MOUNTING

€ 15.00

5

3517338A00
ref: 5

COVER,SOCKET

€ 12.50

6-1

0912505102
ref: 6-1

SCREW(5X14)

€ 2.50

6-2

0211205163
ref: 6-2
E4,E15,E17,E18,E22,E

SCREW

€ 2.00

7

3513845230
ref: 7

WASHER

€ 2.00

8

3513345230
ref: 8

SPACER

€ 2.00

9

3513945230
ref: 9

CUSHION

€ 1.50

10

3515548510
ref: 10

NUT

€ 2.00

11

0940405401
ref: 11

CLAMP

€ 2.50

12

3515131300
ref: 12

SCREW,HEADLAMP ADJUST

€ 3.00

13

3515431300
ref: 13

SPRING

€ 2.00

14

3513545600
ref: 14

NUT

€ 3.00

15

3685338A00
ref: 15

SOCKET

€ 10.00

16

3611849320
ref: 16

SOCKET

€ 12.00

17

3611622630
ref: 17

JOINT,RUBBER

€ 5.00

18

0947112060
ref: 18

BULB(12V60/55W,H4)

€ 8.00

19

0947112001
ref: 19

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

20

0214205127
ref: 20

SCREW

€ 1.50

21

3595014A00
ref: 21
E39

REFLECTOR,REFLEX FR

€ 15.00

22

0831000053
ref: 22
E39

NUT

€ 2.50

23

3595624B20
ref: 23
E39

BRACKET,FRONT SIDE RH

€ 0.00

24

3595724B20
ref: 24
E39

BRACKET,FRONT SIDE RH

€ 0.00

25

0211235123
ref: 25
E39

SCREW

€ 1.50

26

0940905304
ref: 26
5 HOLE

CLIP

€ 2.00

27

0940906306
ref: 27
5.5 HOLE

CLIP

€ 2.00

26

0832121055
ref: 26
E39,E77

WASHER,LOCK

€ 3.00

27

0940905304
ref: 27
5 HOLE

CLIP

€ 2.00

28

0940906306
ref: 28
5.5 HOLE

CLIP

€ 2.00
