AIR CLEANER

LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37

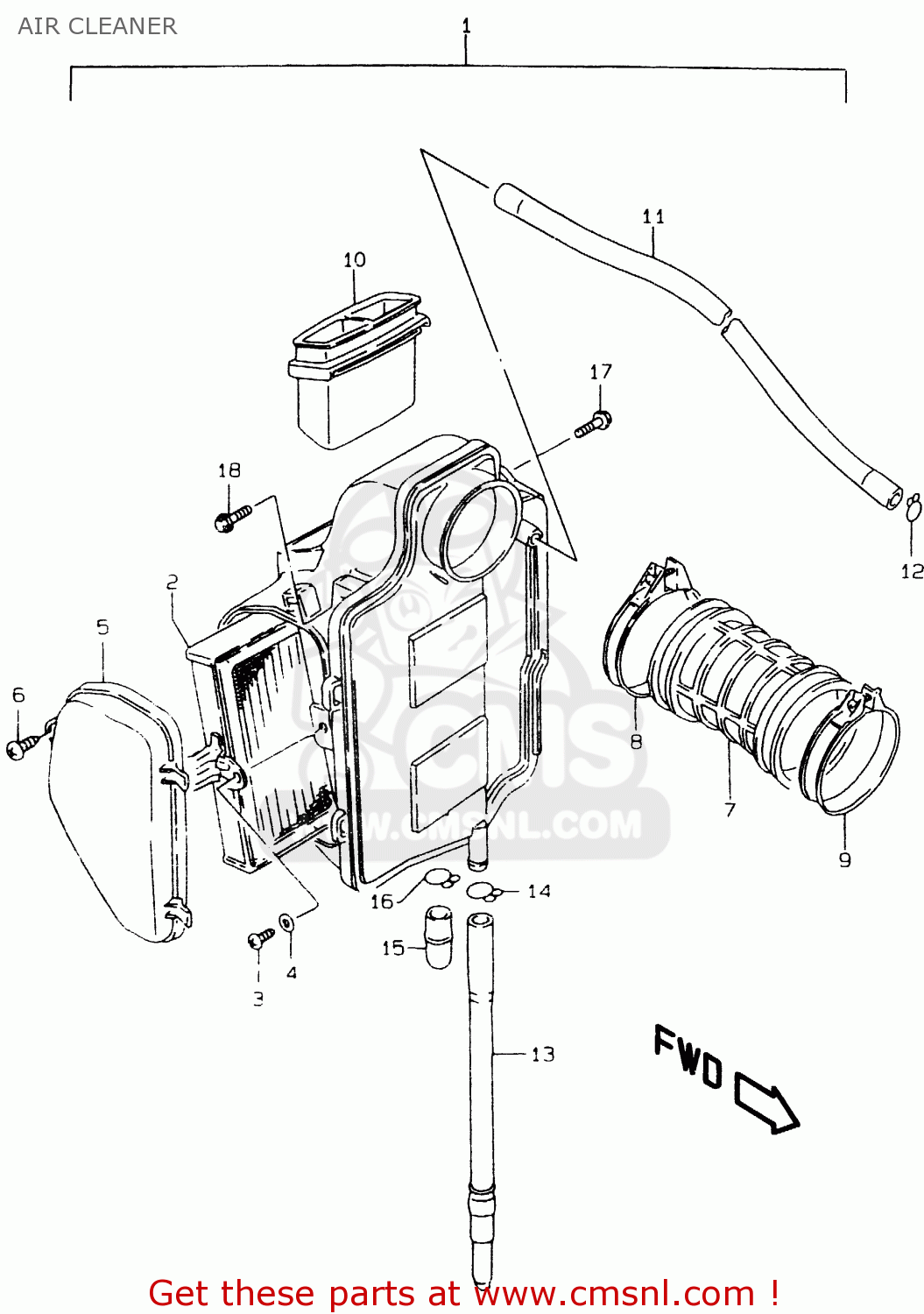

Air cleaner diagram LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37

prices are in EUR

ref

part #

description

quantity

1370024B22
ref: 1

CLEANER ASSY,AIR

€ 154.00

1370024B16
ref: 1
E18

CLEANER ASSY,AIR

€ 159.00

1378024B01
ref: 2

FILTER ASSY,AIR

€ 31.50

0211205107
ref: 3

SCREW

€ 2.00

0832101057
ref: 4

WASHER,LOCK

€ 2.00

1374024B01
ref: 5

CAP,AIR CLEANER

€ 13.50

0214205123
ref: 6

SCREW 5X12

€ 1.50

1388124B01
ref: 7

TUBE,AIR CLEANER OUTLET

€ 17.50

0940270203
ref: 8

CLAMP

€ 6.00

0940264203
ref: 9

CLAMP

€ 6.00

1389124B20
ref: 10

TUBE,INLET

€ 21.00

1389124B10
ref: 10
E18

TUBE,INLET

€ 15.00

0935211153600
ref: 11
L:600->430

HOSE(11X15X600)

€ 13.50

0940114301
ref: 12

CLIP

€ 2.00

1387011458
ref: 13

TUBE,DRAIN

€ 13.50

0940113409
ref: 14

CLIP

€ 2.50

1385941B10
ref: 15

PLUG

€ 5.50

0940114301
ref: 16

CLIP

€ 2.00

0911606006
ref: 17

BOLT(6X16)

€ 2.00

0155006123
ref: 18

BOLT

€ 2.50
