Buy Suzuki LS Parts Online


HEADLAMP

LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37

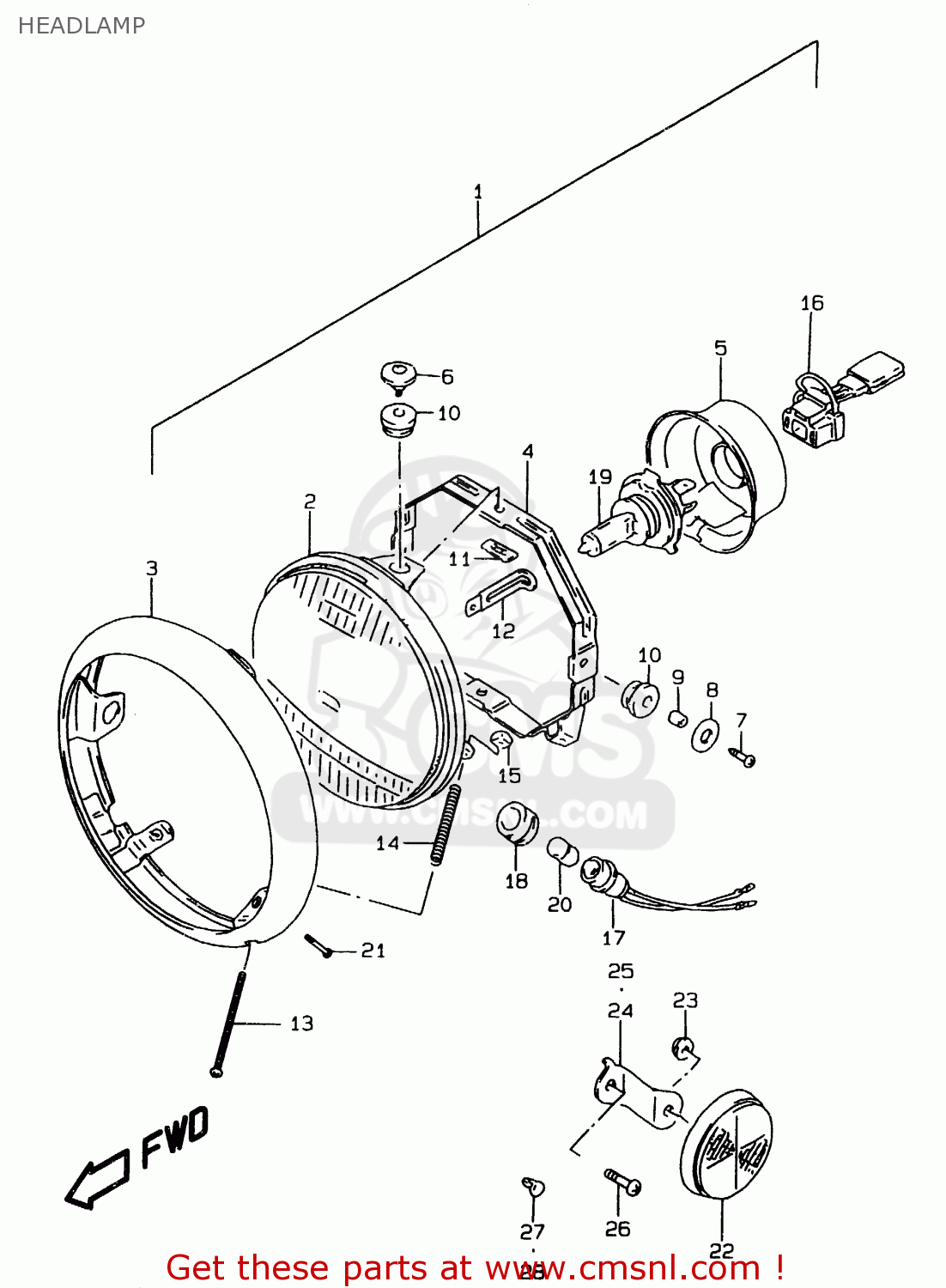

Headlamp diagram LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37

HEADLAMP LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37
HEADLAMP LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37
HEADLAMP LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37
prices are in EUR
ref
part #
description
quantity
1
3510038A00
ref: 1
HEADLAMP ASSY
3510038A00
€ 215.50
1
3510038A51999
ref: 1
E4, E17, E18, E22, E
HEADLAMP ASSY
€ 216.50
2
3512138A00
ref: 2
LAMP UNIT
€ 126.50
2
3512138A41
ref: 2
E4, E17, E18, E22, E
UNIT
3512138A41
€ 126.50
3
3511138A00
ref: 3
RIM
3511138A00
€ 27.00
4
3513038A00
ref: 4
RING,MOUNTING
3513038A00
€ 15.00
5
3517338A00
ref: 5
COVER,SOCKET
3517338A00
€ 12.50
6
3513638A00
ref: 6
SCREW,MOUNTING
3513638A00
€ 2.50
7
0912505102
ref: 7
SCREW(5X14)
0912505102
€ 2.50
8
0916005045
ref: 8
<-09160-05003
WASHER(5.5X18X1)
0916005045
€ 2.00
9
3513345230
ref: 9
SPACER
3513345230
€ 2.00
10
3513945230
ref: 10
CUSHION
3513945230
€ 1.50
11
3515548510
ref: 11
NUT
3515548510
€ 2.00
12
0940406432
ref: 12
<-09404-06429
CLAMP(L:65)
0940406432
€ 2.50
13
3515138A00
ref: 13
SCREW,ADJUSTING(4X50)
3515138A00
€ 2.50
14
3515431300
ref: 14
SPRING
3515431300
€ 2.00
15
3513545600
ref: 15
NUT
3513545600
€ 3.00
16
3685338A00
ref: 16
SOCKET
3685338A00
€ 10.00
17
3611849320
ref: 17
SOCKET
3611849320
€ 12.00
18
3611622630
ref: 18
JOINT,RUBBER
3611622630
€ 5.00
19
0947112060
ref: 19
BULB(12V60/55W,H4)
0947112060
€ 8.00
20
0947112001
ref: 20
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
20
0947112063
ref: 20
E4, E17, E18, E22, E
BULB(12V4W)
0947112063
€ 6.00
21
0214205127
ref: 21
SCREW
0214205127
€ 1.50
22
3595014A00
ref: 22
E18
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
23
0831000053
ref: 23
E18
NUT
€ 2.50
24
3595624B20
ref: 24
E18
BRACKET,FRONT SIDE RH
€ 0.00
25
3595724B20
ref: 25
E18
BRACKET,FRONT SIDE RH
€ 0.00
26
0211235123
ref: 26
E18
SCREW
0211235123
€ 1.50
27
09409053045PK
ref: 27
M5 HOLE
CLIP(BLACK)
09409053045PK
€ 2.00
28
0940906306
ref: 28
M5.5 HOLE
CLIP
0940906306
€ 2.00
