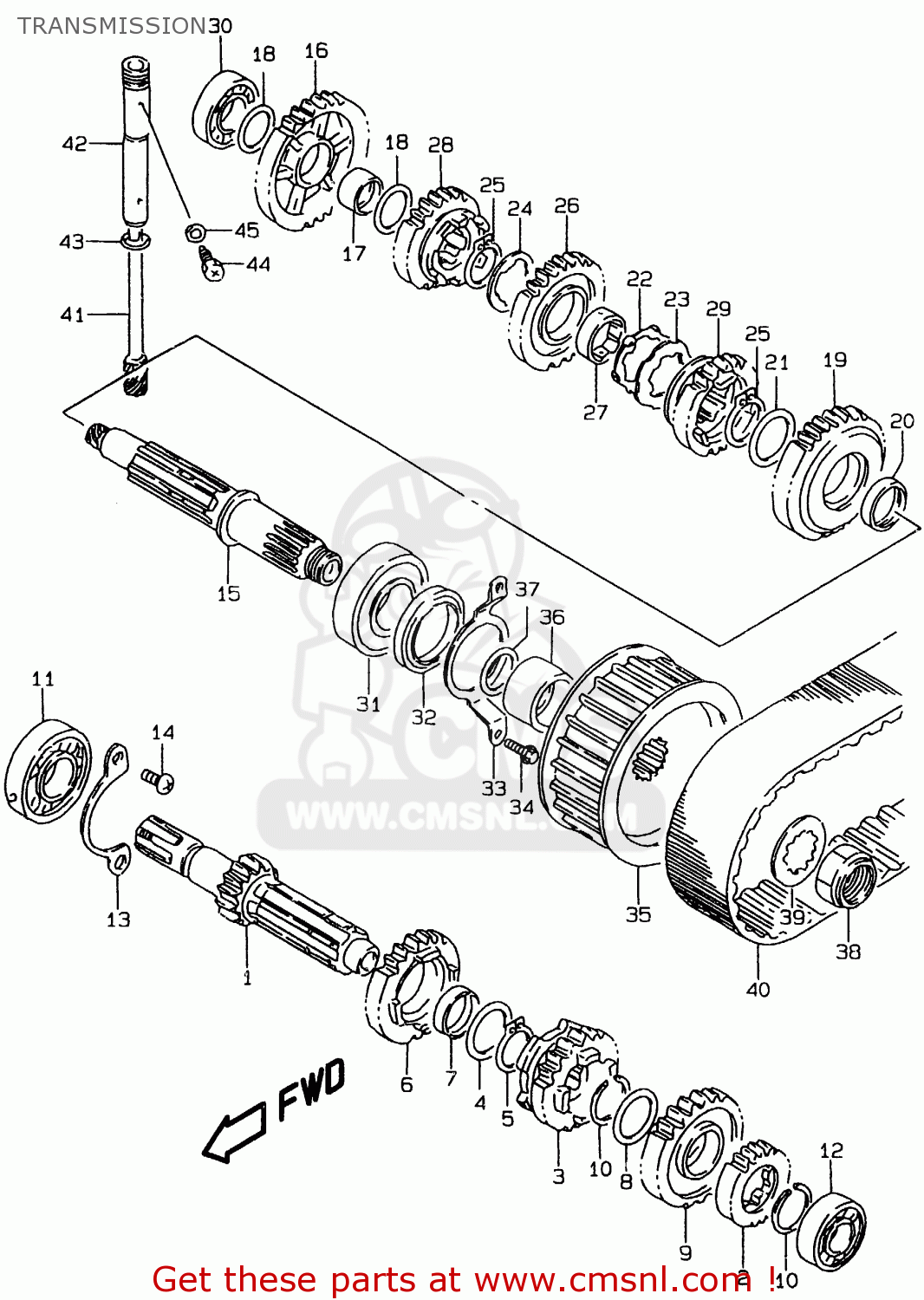

TRANSMISSION

ref

part #

description

quantity

1

2412124B12
ref: 1
<-24121-24B11

SHAFT,COUNTER(NT:15)

€ 173.50

2

2422124B20
ref: 2
MODEL T/V

GEAR,2ND DRIVE

€ 73.00

2

2422124B21
ref: 2
MODEL W/X

GEAR,2ND DRIVE(NT:19)

€ 73.00

3

2423124B20
ref: 3
MODEL T/V, ~F.NO.NP4

GEAR,THIRD DRIVE

€ 54.50

3

2423124B21
ref: 3
MODEL T/V, F.NO.NP41

GEAR,THIRD DRIVE

€ 88.50

3

2423124B30
ref: 3
MODEL W/X

GEAR,3RD DRIVE(NT:21)

€ 88.50

4

0821125351
ref: 4

WASHER

€ 3.00

5

0938025003
ref: 5

RING,SNAP

€ 3.00

6

2424124B11
ref: 6
MODEL T/V, ~F.NO.NP4

GEAR,4TH DRIVE

€ 73.50

6

2424124B12
ref: 6
MODEL T/V, F.NO.NP41

GEAR,FOURTH DRIVE

€ 85.50

6

2424124B13
ref: 6
MODEL W/X

GEAR,FOURTH DRIVE

€ 85.50

7

0930025023
ref: 7

BUSHING 25X29X10

€ 9.50

8

0916725012
ref: 8

WASHER,LOCK

€ 3.50

9

2425124B12
ref: 9
MODEL T/V, ~F.NO.NP4

GEAR,FIFTH DRIVE

€ 82.00

9

2425124B13
ref: 9
MODEL T/V, F.NO.NP41

GEAR,5TH DRIVE

€ 82.00

9

2425124B13
ref: 9
MODEL W/X

GEAR,5TH DRIVE

€ 82.00

10

0938025010
ref: 10

CIRCLIP

€ 3.00

11

0926222028
ref: 11

BEARING(22X56X16)

€ 59.50

12

0926217027
ref: 12

BEARING(17X40X12)

€ 25.00

13

2474124B00
ref: 13

RETAINER,CNTR SHAFT BEARING

€ 6.00

14

0211206123
ref: 14

SCREW

€ 1.50

15

2413024B12
ref: 15
<-24130-24B11

SHAFT,DRIVE

€ 161.50

16

2431124B11
ref: 16

GEAR,1ST DRIVEN(NT:35)

€ 100.50

17

0930020032
ref: 17

BUSH(20X24X13)

€ 10.00

18

0821120301
ref: 18
MODEL T

WASHER

€ 3.00

18

0918120195
ref: 18
MODEL V/W/X

SHIM(20X30X1)

€ 3.00

19

2432124B20
ref: 19

GEAR,2ND DRIVEN

€ 85.50

20

0930025020
ref: 20

BUSH(25X29X8)

€ 10.00

21

0821125351
ref: 21

WASHER

€ 3.00

22

0916925001
ref: 22

WASHER

€ 2.00

23

0916725013
ref: 23

WASHER,LOCK

€ 2.50

24

0916725016
ref: 24

WASHER,LOCK

€ 3.00

25

0938025003
ref: 25

RING,SNAP

€ 3.00

26

2433124B20
ref: 26

GEAR,3RD DRIVEN

€ 82.00

27

2433224500
ref: 27

BUSHING

€ 9.50

28

2434124B20
ref: 28
<-24341-24B11

GEAR,4TH DRIVEN(NT:22)

€ 82.00

29

2435124B12
ref: 29
MODEL T/V/W

GEAR,FIFTH DRIVEN

€ 86.50

29

2435124B13
ref: 29
MODEL X

GEAR,5TH DRIVEN

€ 86.50

30

0926220086
ref: 30

BALL BEARING 20X42X12

€ 20.50

31

0926225083
ref: 31

BALL BEARING 25X62X17

€ 49.00

32

0928336003
ref: 32

SEAL,OIL(36X50X6)

€ 12.00

33

2475124B00
ref: 33

RETAINER,DRIVE SHAFT OIL SEAL

€ 4.50

34

0154706123
ref: 34

BOLT

€ 2.00

35

2751024B01
ref: 35

PULLEY,FR

€ 81.50

36

2753124B00
ref: 36

SPACER,FR PULLEY

€ 18.50

37

0928024010
ref: 37

O RING(D:2.4,ID:23.7)

€ 5.50

38

0915920004
ref: 38

NUT

€ 12.00

39

0916725019
ref: 39
<-09167-25014

WASHER,LOCK

€ 2.50

40

2761124B00133
ref: 40

BELT,DRIVE

€ 416.50

41

2613124B00
ref: 41

GEAR,SPEEDOMETER DRIVEN

€ 21.50

42

2648124B01
ref: 42

SLEEVE,TACHOMETER DRIVEN GEAR

€ 28.50

43

0928010001
ref: 43

O RING(D:1.3,ID:9.6)

€ 2.00

44

0913506013
ref: 44

BOLT

€ 2.50

45

0916806004
ref: 45

GASKET(6.2X11X1).2 (NAS)

€ 1.50
