REAR SWINGING ARM

LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37

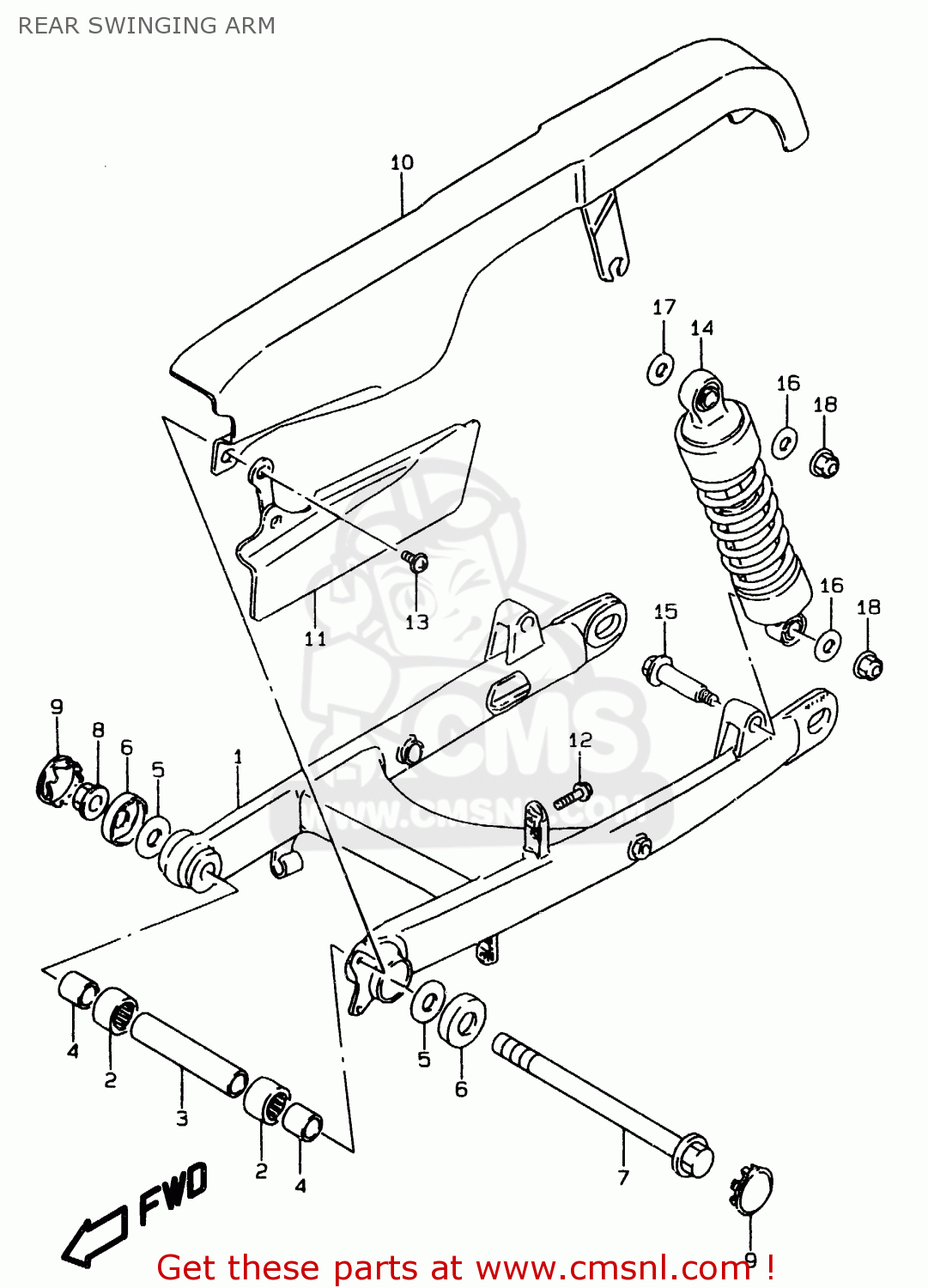

Rear swinging arm diagram LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37

prices are in EUR

ref

part #

description

quantity

6110024B03019
ref: 1

SWINGINGARM,RR

€ 404.00

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

6128224B01
ref: 3

SPACER,RR SWGARM PIVOT CTR

€ 7.50

6125124B00
ref: 4

SPACER,RR SWGARM PIVOT

€ 9.00

0821114341
ref: 5

WASHER

€ 3.00

6126245002
ref: 6

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

6121124B00
ref: 7

SHAFT,RR SWINGINGARM PIVOT

€ 15.50

0831931148
ref: 8

NUT

€ 9.00

6122238A01
ref: 9

CAP,RR SWINGING ARM PIVOT,R

€ 6.50

6131024B02
ref: 10

BELT CASE,UPR

€ 155.50

6132024B02
ref: 11

BELT CASE,LWR

€ 29.50

0155006123
ref: 12

BOLT

€ 2.50

0211276123
ref: 13

SCREW

€ 2.00

6210024B00
ref: 14

ABSORBER ASSY,RR SHOCK

€ 214.00

6231324B00
ref: 15

BOLT,RR SHOCK ABSORBER LWR

€ 9.00

0916010035
ref: 16

WASHER(10.5X28X2.3)

€ 2.00

0916014009
ref: 17

WASHER(14.5X29X2.3)

€ 3.50

0831310107
ref: 18

NUT

€ 2.50
