REAR FENDER

LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37

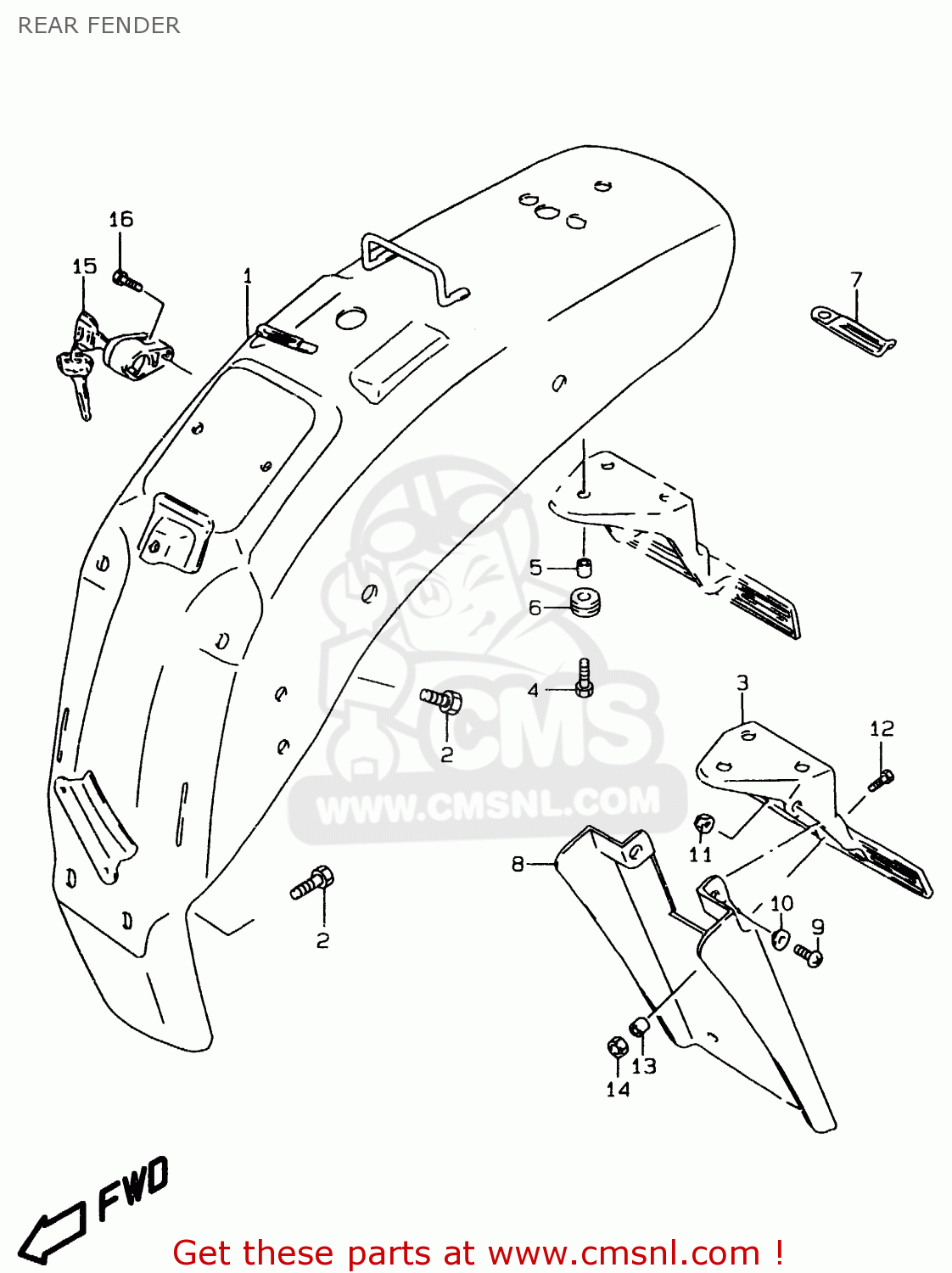

Rear fender diagram LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37

REAR FENDER LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37
REAR FENDER LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37
REAR FENDER LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37
prices are in EUR
ref
part #
description
quantity
1
6311024B10163
ref: 1
MODEL T
FENDER COMP,REAR
€ 353.50
1
6311024B1022U
ref: 1
MODEL T
FENDER COMP,REAR
€ 435.00
1
6311024B1033J
ref: 1
FENDER COMP,REAR
€ 123.00
1
6311024B101ZZ
ref: 1
MODEL V
FENDER COMP,REAR
€ 406.00
1
6311024B10Y0W
ref: 1
MODEL V/W
FENDER COMP,REAR
€ 406.00
1
6311024B10Z94
ref: 1
MODEL W
FENDER COMP,REAR
€ 189.00
1
6311024B10Y3K
ref: 1
MODEL X
FENDER COMP,REAR
€ 406.00
1
6311024B10Y4M
ref: 1
MODEL X
FENDER COMP,REAR
€ 406.00
2
0910308152
ref: 2
BOLT 8X25
0910308152
€ 1.50
3
3591624B12
ref: 3
BRACKET,LICENSE PLATE
€ 48.00
4
0911606010
ref: 4
BOLT(6X20)
0911606010
€ 2.00
5
0918006011
ref: 5
MODEL T
SPACER (6.1X9X9)
0918006011
€ 2.00
5
0918006263
ref: 5
MODEL V/W/X
SPACER(6.5X9X9)
0918006263
€ 2.00
6
0932009016
ref: 6
CUSHION
0932009016
€ 2.50
7
0940406429
ref: 7
CLAMP(L:45)
€ 2.50
7
0940406432
ref: 7
MODEL X
CLAMP(L:65)
0940406432
€ 2.50
8
6331138A20
ref: 8
E17, E18, E22
EXTENSION,RR FENDER
6331138A20
€ 23.50
9
0214206163
ref: 9
E17, E18, E22
SCREW
0214206163
€ 2.50
10
0916906037
ref: 10
E17, E18, E22
WASHER
0916906037
€ 6.50
11
0831921063
ref: 11
E17, E18, E22
NUT
0831921063
€ 2.50
12
0211206203
ref: 12
E17, E18, E22
SCREW, 6X20
0211206203
€ 2.00
13
0918006092
ref: 13
E17, E18, E22
SPACER(6.2X8.3X6.1)
0918006092
€ 4.00
14
0831931063
ref: 14
E17, E18, E22
NUT
0831931063
€ 2.50
15
9570038821
ref: 15
LOCK SET,HELMET
9570038821
€ 54.00
16
0211205127
ref: 16
SCREW
0211205127
€ 2.50
