MAGNETO

LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37

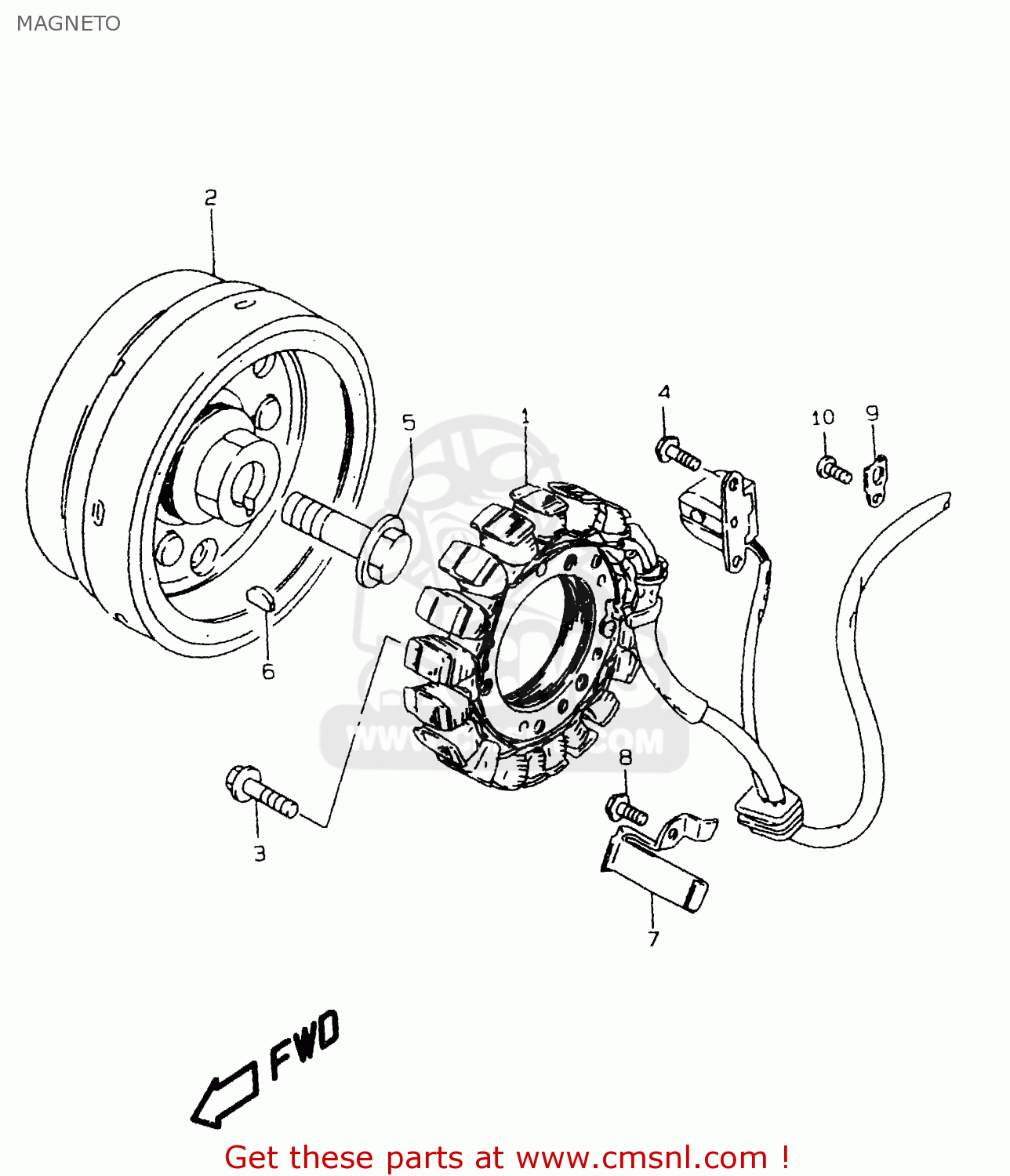

Magneto diagram LS650P 1997 (V) (E02 E04 E17 E18 E22 E25 E53 / P37

prices are in EUR

ref

part #

description

quantity

3210124B01
ref: 1
<-32101-24B00

STATOR ASSEMBLY

€ 603.00

3210224B10
ref: 2

ROTOR ASSY

€ 463.00

0154706253
ref: 3

SCREW

€ 2.50

0154705103
ref: 4

BOLT

€ 2.50

0910314001
ref: 5

BOLT(14X43)

€ 7.00

0942005007
ref: 6

KEY

€ 3.00

3237124B00
ref: 7

CLAMP,MAGNETO LEAD WIRE NO.1

€ 3.00

0154705103
ref: 8

BOLT

€ 2.50

3149745000
ref: 9

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205103
ref: 10

SCREW

€ 2.00
