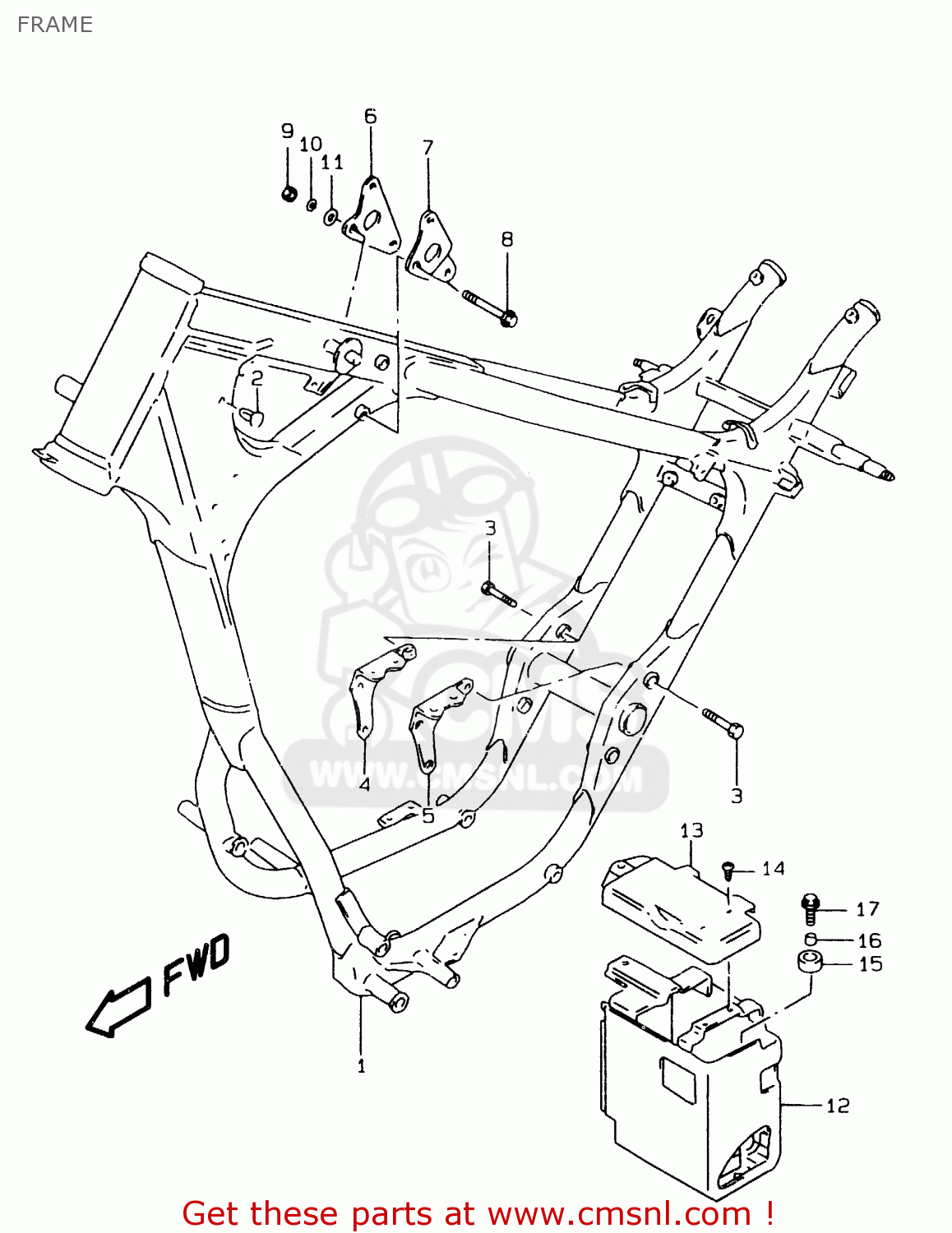

FRAME

ref

part #

description

quantity

1

4110024B01019
ref: 1

FRAME(BLACK)

€ 562.50

2

0940906306
ref: 2

CLIP

€ 2.00

3

0910608074
ref: 3

BOLT(8X40)

€ 3.50

4

4197024B00019
ref: 4

PLATE,ENGINE MOUNT NO.4,R

€ 10.50

5

4198024B00019
ref: 5

PLATE,ENGINE MOUNT NO.4,L

€ 10.50

6

4199124B00019
ref: 6

PLATE,ENGINE MOUNT NO.5,R

€ 7.50

7

4199224B00019
ref: 7

PLATE,ENGINE MOUNT NO.5,L

€ 7.50

8

0910308279
ref: 8

BOLT(8X72)

€ 4.50

9

0831921088
ref: 9

NUT

€ 1.50

10

0832101083
ref: 10

LOCK WASHER

€ 2.50

11

0832201083
ref: 11

WASHER

€ 1.50

12

4154024B00
ref: 12
MODEL T

HOLDER COMP,BATTERY

€ 87.50

12

4154024B01
ref: 12
MODEL V/W/X

HOLDER,BATTERY

€ 87.50

13

4157624B01
ref: 13

COVER,BATTERY

€ 20.00

14

0214204107
ref: 14

SCREW

€ 1.50

15

0932008021
ref: 15

CUSHION

€ 4.00

16

0918006111
ref: 16
MODEL T

SPACER

€ 3.50

16

0918006260
ref: 16
MODEL V/W/X

SPACER(6.5X9X7.2)

€ 3.50

17

0911606083
ref: 17
MODEL T

BOLT

€ 2.00

17

0911606011
ref: 17
MODEL V/W/X

BOLT 6X20

€ 2.00
