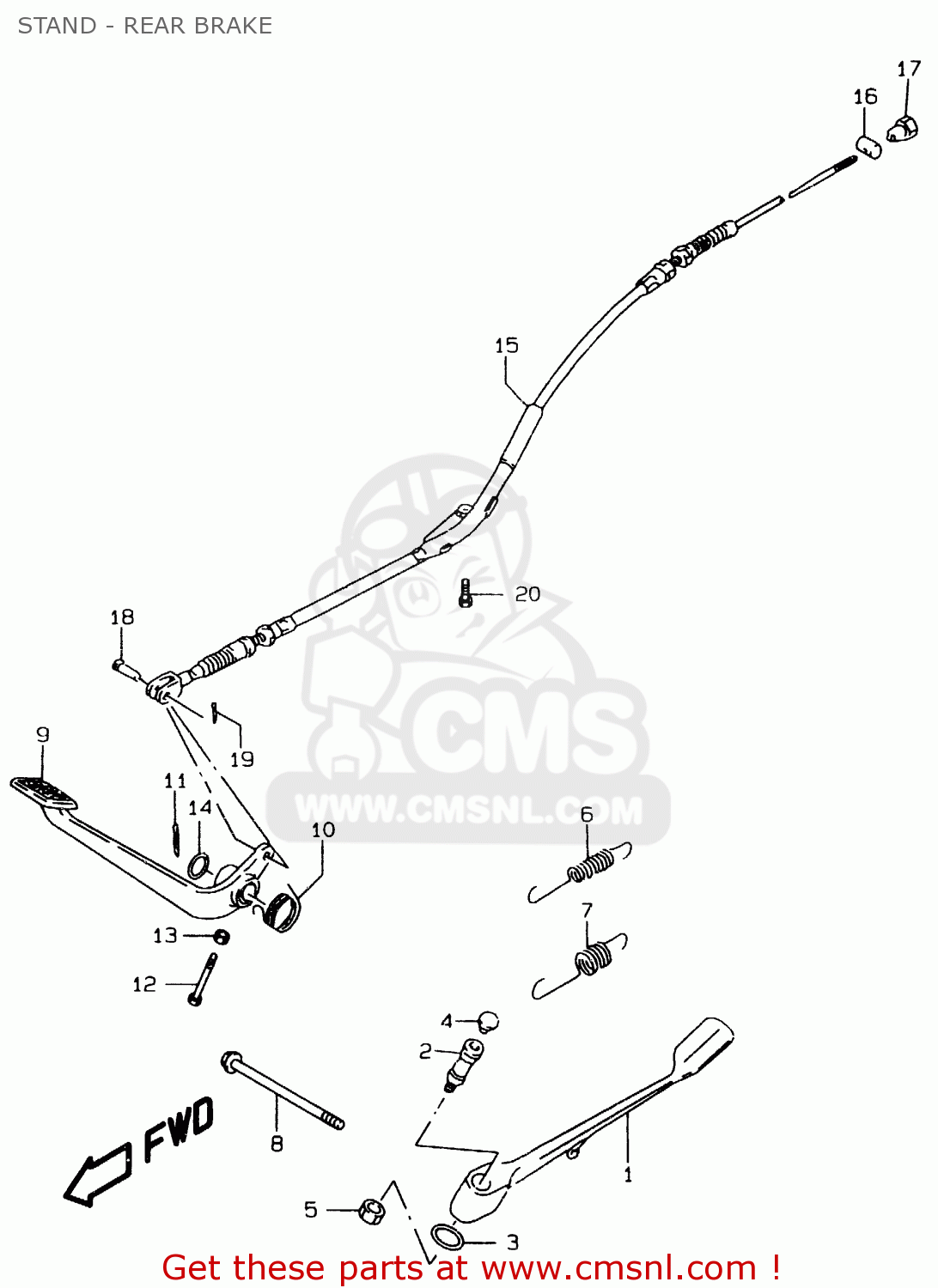

STAND - REAR BRAKE - LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37

ref

part #

description

quantity

1

4231024B00
ref: 1
MODEL T

STAND,PROP

€ 92.00

1

4231024B01
ref: 1
MODEL V/W/X

STAND,PROP

€ 92.00

2

4234138B01
ref: 2

BOLT,PROP STAND

€ 9.00

3

0822115245
ref: 3
MODEL T/V

THRUST WASHER

€ 2.50

3

0918115158
ref: 3
MODEL W/X

SHIM(15X24X0.5)

€ 2.50

4

4357524B00
ref: 4

CAP,PROP STAND BOLT

€ 7.00

5

0914010044
ref: 5

NUT

€ 2.50

6

0944315034
ref: 6

SPRING

€ 18.50

7

0944318020
ref: 7

SPRING

€ 18.00

8

0910310087
ref: 8

BOLT(10X105)

€ 6.50

9

4311024B10
ref: 9

PEDAL,BRAKE

€ 58.50

10

0944832017
ref: 10

SPRING

€ 23.00

11

0411130308
ref: 11

COTTER PIN

€ 1.50

12

0910006150
ref: 12

BOLT(6X31)

€ 1.50

13

0831000063
ref: 13

NUT 6MM

€ 2.00

14

0916016028
ref: 14
MODEL T/V

WASHER (16.2X22X1)

€ 2.00

14

0916016043
ref: 14
MODEL W/X

WASHER(16.5X22X1)

€ 2.00

15

5851024B10
ref: 15

CABLE,RR BRAKE

€ 73.00

16

0920913018
ref: 16

PIN(13X18)

€ 3.50

17

0915006009
ref: 17
MODEL T

NUT (6MM)

€ 3.50

17

0915006014
ref: 17
MODEL V/W/X

NUT

€ 3.50

18

0920005001
ref: 18

PIN(L:17.5)

€ 1.50

19

0411120158
ref: 19

PIN

€ 1.50

20

0157006163
ref: 20

BOLT

€ 2.50
