PILLION HANDLE (MODEL T)

LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37

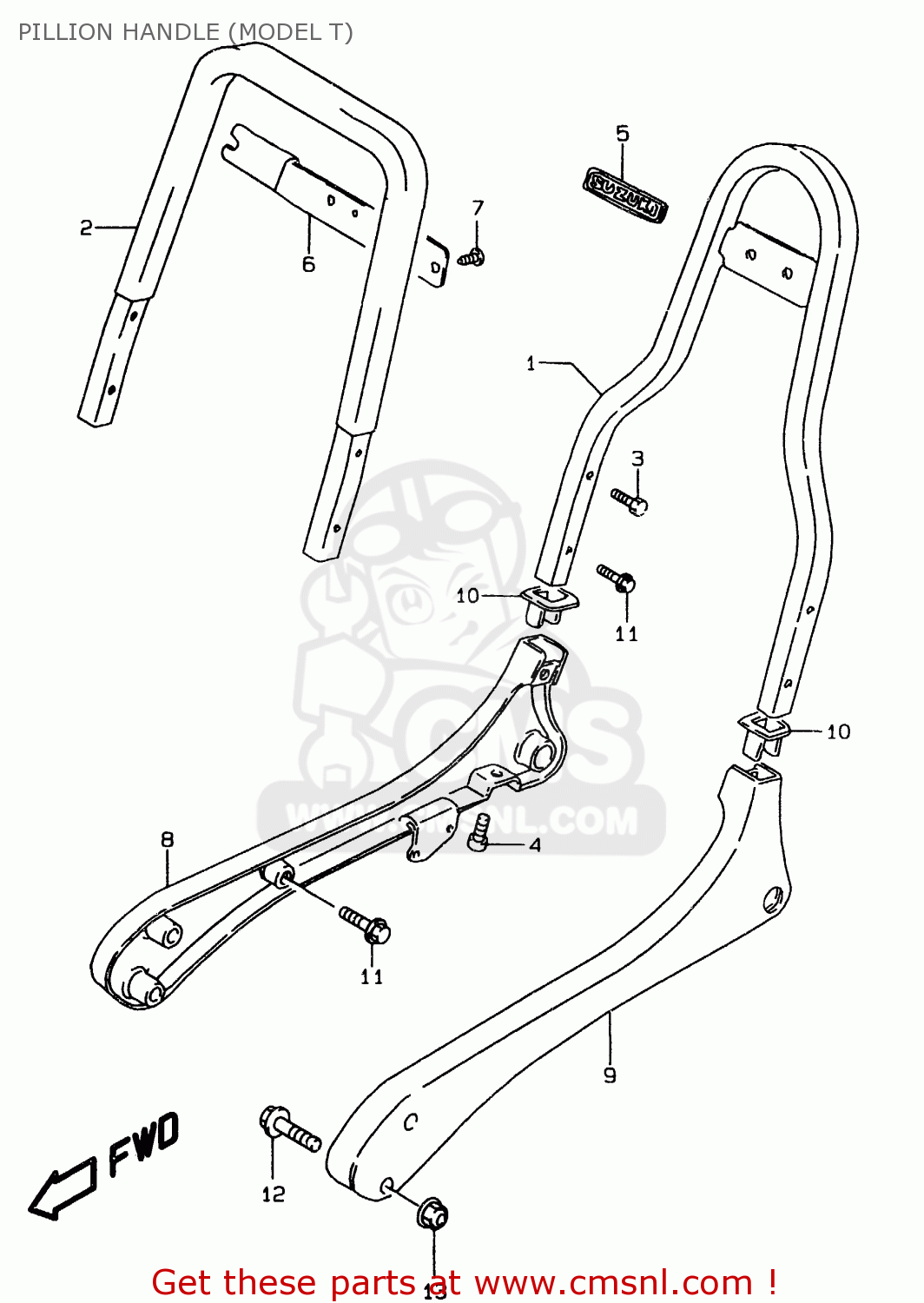

Pillion handle (model t) diagram LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37

prices are in EUR

ref

part #

description

quantity

4621024B10
ref: 1
E2, E4, E17, E18, E2

HANDLE,PILLION UPR

€ 87.50

4621024B20
ref: 2
E22

HANDLE,PILLION RIDER UPPER

€ 343.00

0120408127
ref: 3

BOLT

€ 2.00

0713008123
ref: 4

PLUG

€ 2.50

6828124B00
ref: 5

EMBLEM

€ 8.50

4621224B20
ref: 6
E22

PLATE,RR

€ 7.00

0214206103
ref: 7
E22

SCREW 6X10

€ 2.00

4624024B00
ref: 8

HANDLE,PILLION RIDER,R

€ 132.00

4624024B10
ref: 8
E18

HANDLE,PILLION RIDER RH

€ 125.50

4625024B00
ref: 9

HANDLE,PILLION RIDER,L

€ 132.00

4625024B10
ref: 9
E18

HANDLE,PILLION RIDER LH

€ 125.50

4626124B00
ref: 10

COVER,PILLION HNDL

€ 3.00

0155008163
ref: 11

BOLT

€ 3.00

0155008353
ref: 12
E2, E25

BOLT

€ 3.50

0155008403
ref: 12
E4, E17, E18, E22, E

BOLT

€ 3.50

0831320087
ref: 13

NUT

€ 2.50
