FUEL COCK

LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37

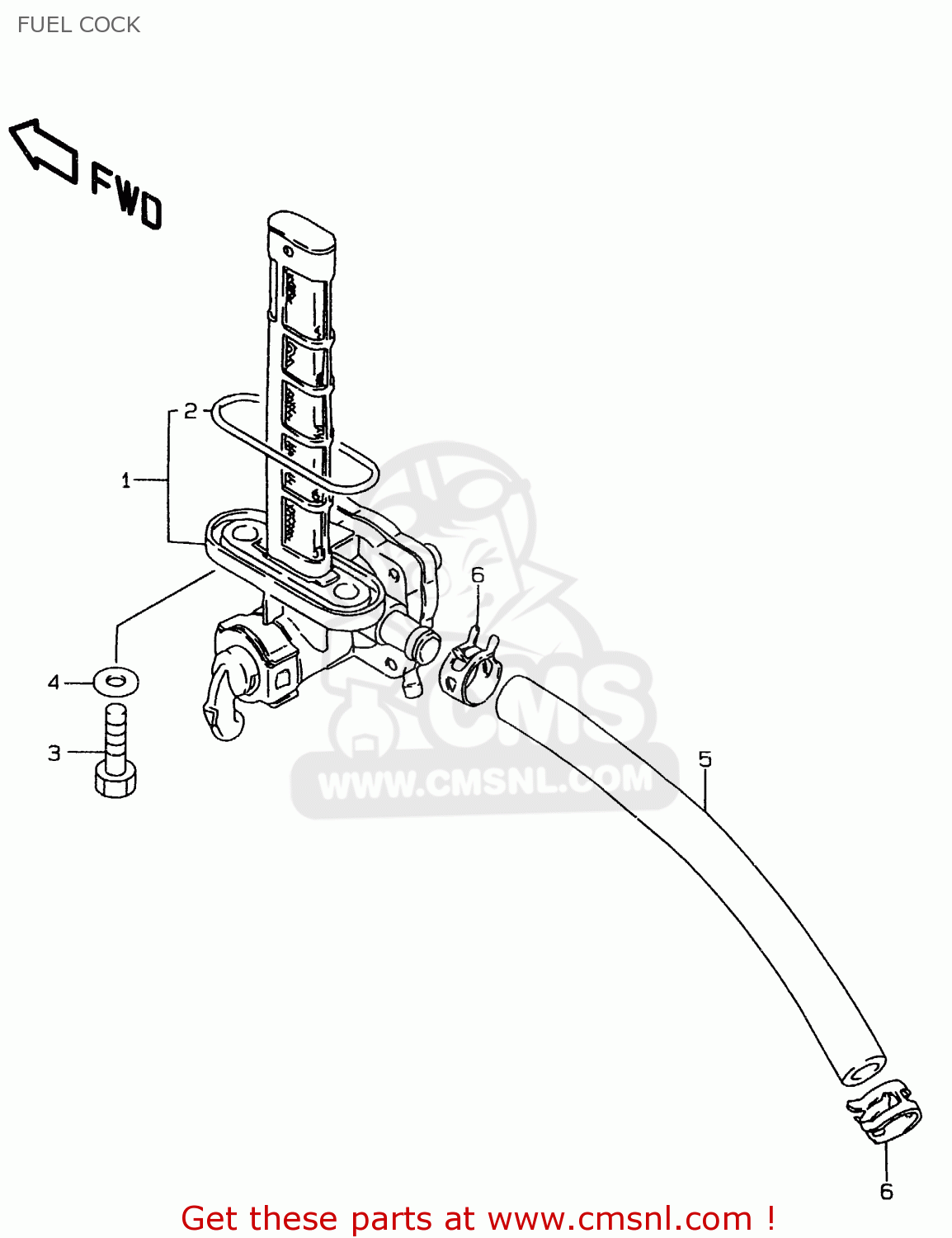

Fuel cock diagram LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37

FUEL COCK LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37

FUEL COCK LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37

prices are in EUR

ref

part #

description

quantity

1

4430024B00
ref: 1

COCK ASSY,FUEL

€ 92.00

2

4434828070
ref: 2

O RING,FUEL COCK

€ 4.50

3

0912806057
ref: 3

BOLT(6X20)

€ 2.00

4

0916806026
ref: 4

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

5

0935470123600
ref: 5
MODEL T

HOSE (7X12X600)

€ 26.00

5

0935570125600
ref: 5
MODEL V/W/X

HOSE(7X12X600)

€ 26.00

6

0940111407
ref: 6

CLIP

€ 2.50
