FRONT CALIPER

LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37

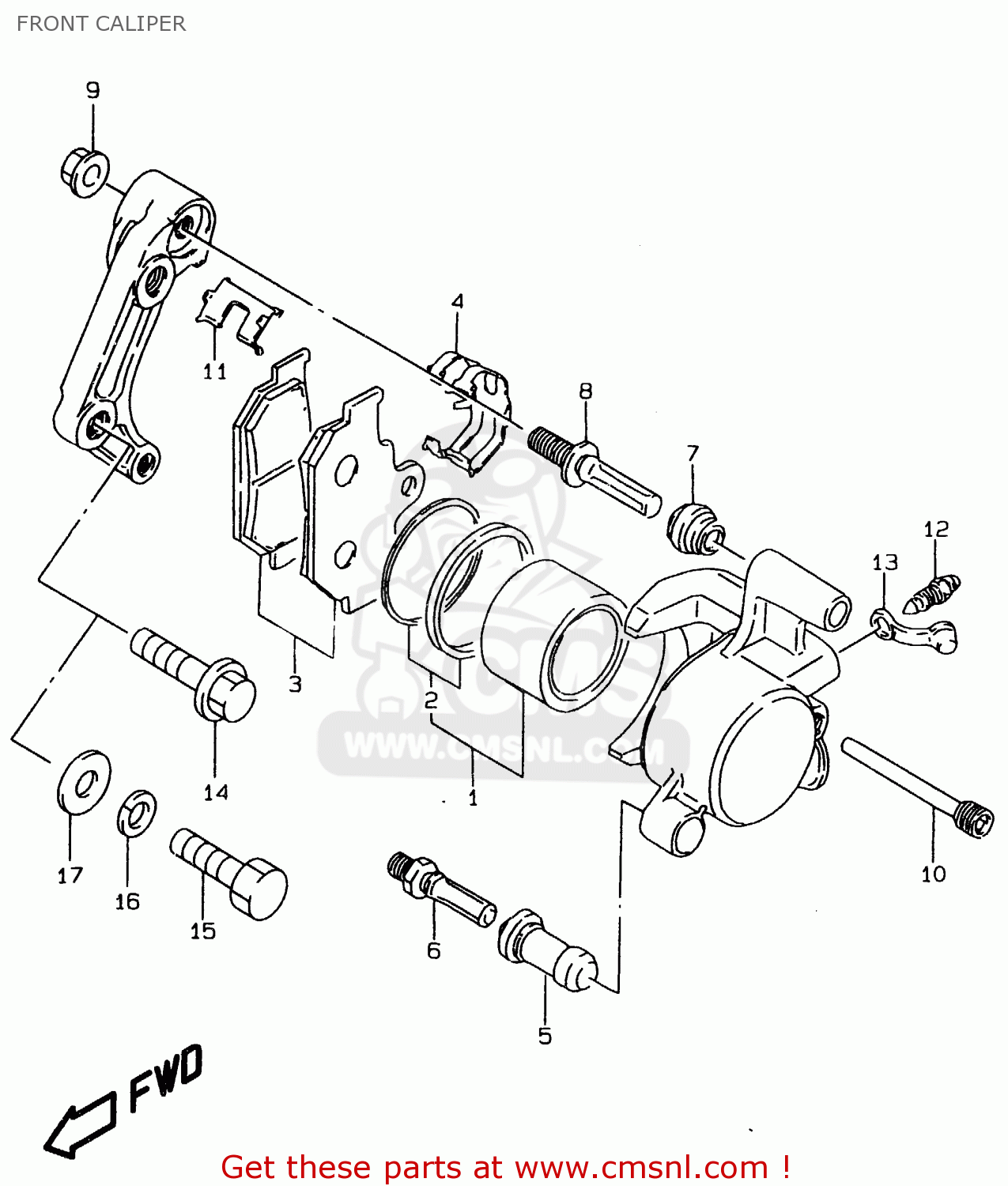

Front caliper diagram LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37

prices are in EUR

ref

part #

description

quantity

5930024B11
ref: 0

CALIPER ASSEMBLY,FRONT,LEFT

€ 524.50

5930024820
ref: 1

PISTON SET

€ 63.00

5930024810
ref: 2

SEAL SET,PISTON

€ 15.50

5930024830
ref: 3

PAD SET (NAS)

€ 42.00

5931514600
ref: 4

SPRING

€ 8.50

5938613A00
ref: 5

BOOT

€ 6.50

5938227C30
ref: 6

BOLT

€ 10.00

5930314500
ref: 7

BOOT

€ 6.00

5930514500
ref: 8

PIN,SLIDE

€ 16.50

5930614500
ref: 9

NUT,SLIDE PIN

€ 3.00

5934514600
ref: 10

PIN,HANGER

€ 12.00

5931624B10
ref: 11

RETAINER

€ 7.50

5912101A00
ref: 12

BLEEDER

€ 11.50

5912201A00
ref: 13

CAP,BLEEDER

€ 5.50

0911810049
ref: 14
MODEL T/V/W

BOLT 10X38

€ 5.00

0910410029
ref: 15
MODEL X

BOLT(10X38)

€ 5.00

0916210008
ref: 16
MODEL X

WASHER,LOCK

€ 4.00

0832201107
ref: 17
MODEL X

WASHER

€ 3.50
