MUFFLER

LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37

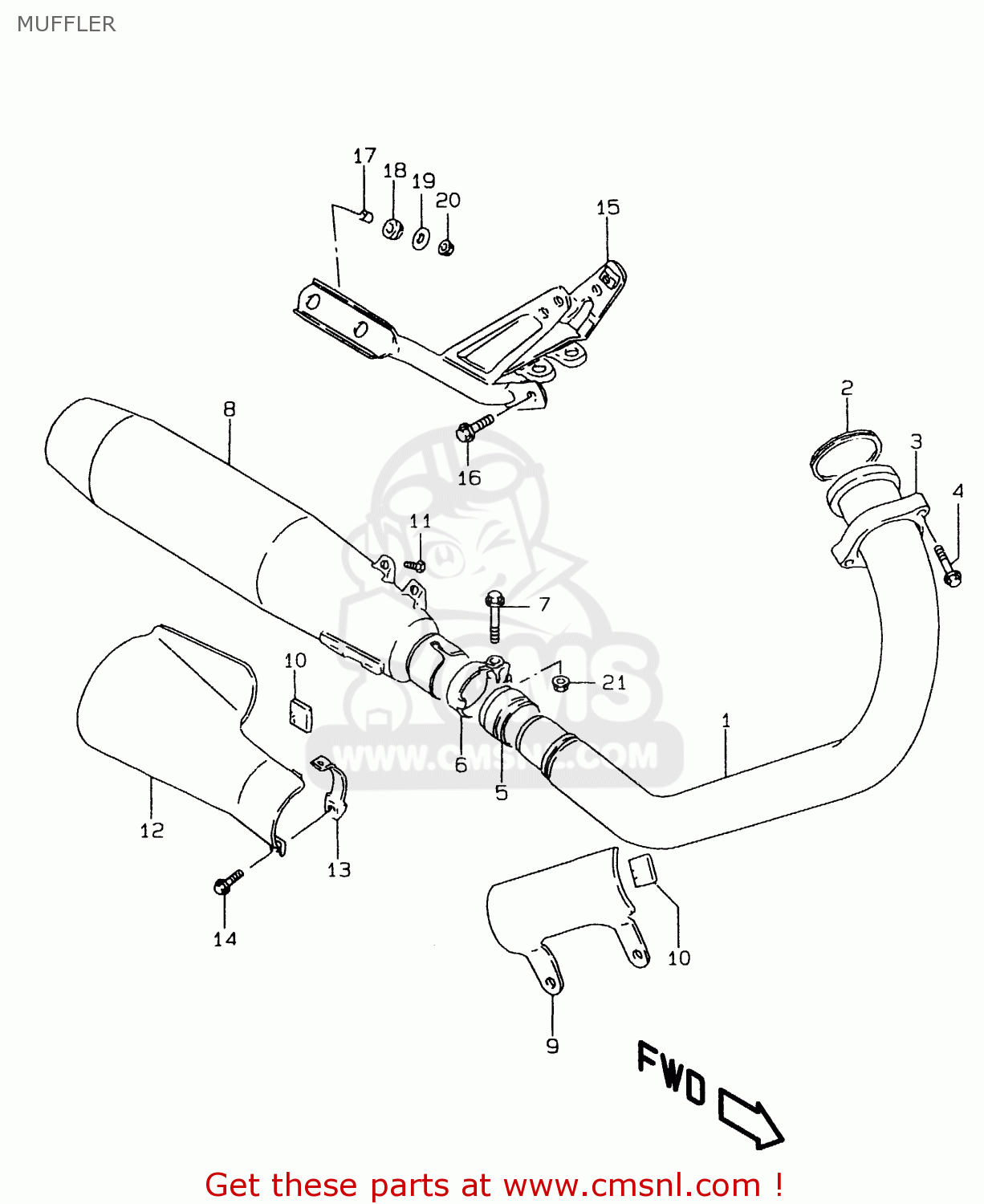

Muffler diagram LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37

MUFFLER LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37
MUFFLER LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37
MUFFLER LS650P 1998 (W) (E02 E04 E17 E18 E22 E25 E53 / P37
prices are in EUR
ref
part #
description
quantity
1
1415024B01
ref: 1
PIPE,EXHAUST
1415024B01
€ 193.50
2
1418145C00
ref: 2
GASKET,EXHAUST PIPE (NAS)
1418145C00
€ 6.50
3
1418238A02
ref: 3
CLAMP,EXHAUST PIPE
1418238A02
€ 21.00
4
0910408026
ref: 4
BOLT(8X35)
0910408026
€ 4.00
5
1477124B01
ref: 5
MODEL T
CONNECTOR,MUFFLER
1477124B01
€ 23.00
5
1477146E00
ref: 5
MODEL V/W/X
CONNECTOR,MUFFLER
1477146E00
€ 13.50
6
1446905A00
ref: 6
~F.NO.NP41A-117360,
CLAMP,MUFFLER CONNECTOR LH
1446905A00
€ 16.00
6
1445914A10
ref: 6
F.NO.NP41A-117361~,
CLAMP,MUFFLER,R(L:42.7)
1445914A10
€ 10.50
7
0155008403
ref: 7
BOLT
0155008403
€ 3.50
8
1431024B51
ref: 8
BODY,MUFFLER
1431024B51
€ 518.00
8
1431024B21
ref: 8
E18
BODY,MUFFLER
€ 458.50
9
1478024B01
ref: 9
COVER,EXHAUST PIPE
1478024B01
€ 42.50
10
1478924B12
ref: 10
GASKET (NAS)
1478924B12
€ 4.00
11
0211206107
ref: 11
MODEL T
SCREW
0211206107
€ 1.50
11
0211206103
ref: 11
MODEL V/W/X
SCREW
0211206103
€ 1.50
12
1479024B00
ref: 12
COVER,MUFFLER
1479024B00
€ 90.50
13
1478524B00
ref: 13
CLAMP,MUFFLER COVER
1478524B00
€ 4.50
14
0155006207
ref: 14
MODEL T
BOLT
0155006207
€ 2.50
14
0155006203
ref: 14
MODEL V/W/X
BOLT
0155006203
€ 2.50
15
1441024B00019
ref: 15
STAY,MUFFLER SUPPORT
1441024B00019
€ 64.00
16
0910308102
ref: 16
MODEL T
BOLT
€ 4.00
16
0910308505
ref: 16
MODEL V/W/X
BOLT(8X20)
0910308505
€ 4.00
17
0918008001
ref: 17
MODEL T
SPACER (8.8X12X11)
0918008001
€ 2.00
17
0918008189
ref: 17
MODEL V/W/X
SPACER(8.5X12X11)
0918008189
€ 2.00
18
0932012041
ref: 18
CUSHION
0932012041
€ 4.50
19
0916008004
ref: 19
MODEL T/V
WASHER
0916008004
€ 2.50
19
0916008134
ref: 19
MODEL W/X
WASHER(8.5X26X1.6)
0916008134
€ 2.50
20
0831620083
ref: 20
NUT
0831620083
€ 1.50
21
0831620083
ref: 21
~F.NO.NP41A-117360,
NUT
0831620083
€ 1.50
