CYLINDER HEAD
RF900R 1995 (S) USA (E03)

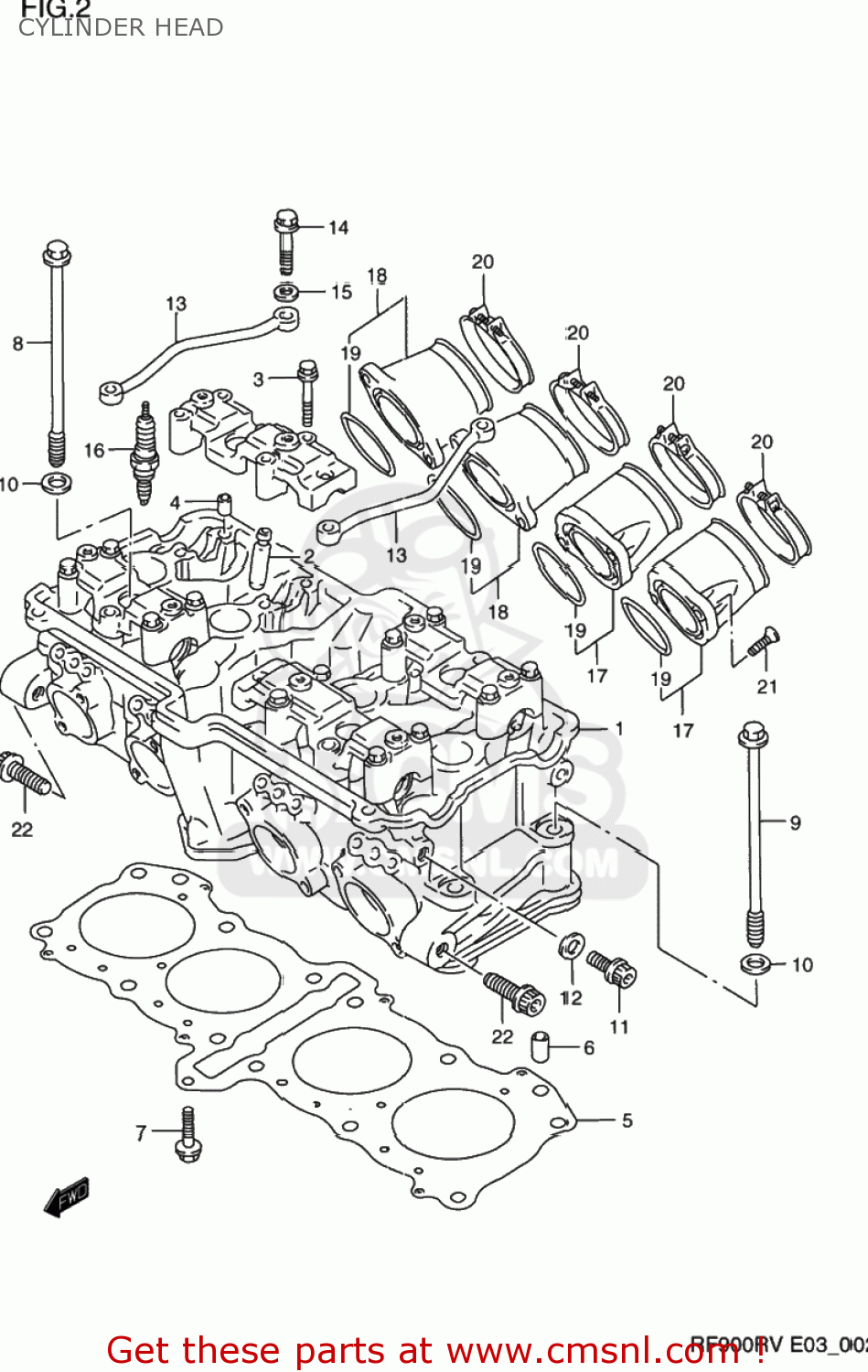

Cylinder head diagram RF900R 1995 (S) USA (E03)
CYLINDER HEAD RF900R 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110031E00
ref: 1-1
HEAD ASSEMBLY,CYLINDER
€ 2,155.50
1-2
1110031E10
ref: 1-2
HEAD ASSEMBLY,CYLINDER
€ 1,588.00
2
1111517E70
ref: 2
GUIDE,VALVE
€ 23.00
3
0910306165
ref: 3
BOLT(6X45)
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
1114131E00
ref: 5
GASKET,CYLINDER HEAD
€ 82.50
6
0421111189
ref: 6
PIN
€ 2.00
7
0155006303
ref: 7
01550-0630A
BOLT
€ 2.50
8-1
0910310270
ref: 8-1
09103-10276
BOLT 10X175
€ 13.50
8-2
0910310276
ref: 8-2
BOLT(10X175)
€ 13.50
9
0910310276
ref: 9
BOLT(10X175)
€ 13.50
10
0916010082
ref: 10
WASHER(10.5X19X2)
€ 2.00
11
0712008163
ref: 11
07120-0816A
BOLT
€ 3.00
12
0916808015
ref: 12
GASKET(8.2X14X1).6 (NAS)
€ 2.50
13
1113117E00
ref: 13
PIPE,CYLINDER HEAD OIL
€ 41.00
14
0910306026
ref: 14
BOLT(6X39)
€ 2.00
15
0832201063
ref: 15
08322-0106B
WASHER
€ 2.00
16-1
0948200458
ref: 16-1
PLUG,SPARK(NGK CR9E)
€ 8.50
16-2
0948200459
ref: 16-2
PLUG,SPARK(U27ESR-N)
€ 8.50
16-3
0948200456
ref: 16-3
PLUG,SPARK(CR8E)
€ 7.00
16-4
0948200460
ref: 16-4
PLUG,SPARK(CR10E)
€ 8.50
16-5
0948200457
ref: 16-5
PLUG,SPARK(U24ESR-N)
€ 7.00
16-6
0948200461
ref: 16-6
PLUG,SPARK(U31ESR-N)
€ 8.50
17-1
1310131E00
ref: 17-1
13101-31E01
PIPE ASSEMBLY,INTAKE
€ 46.00
17-2
1310131E01
ref: 17-2
PIPE ASSY,INTAKE NO.1
€ 46.00
18-1
1310231E00
ref: 18-1
13102-31E01
PIPE ASSEMBLY,INTAKE
€ 42.00
18-2
1310231E01
ref: 18-2
PIPE ASSY,INTAKE NO.2
€ 42.00
19
0928042003
ref: 19
O RING(D:2.4,ID:41.7)
€ 8.50
20
0940252208
ref: 20
CLAMP
€ 5.50
21-1
0912606014
ref: 21-1
SCREW(6X16)
€ 2.00
21-2
0912006010
ref: 21-2
09120-06010-XC0
SCREW
€ 3.00
22
0712010303
ref: 22
07120-1030B
BOLT
€ 4.00
