WIRING HARNESS
RF900R 1995 (S) USA (E03)

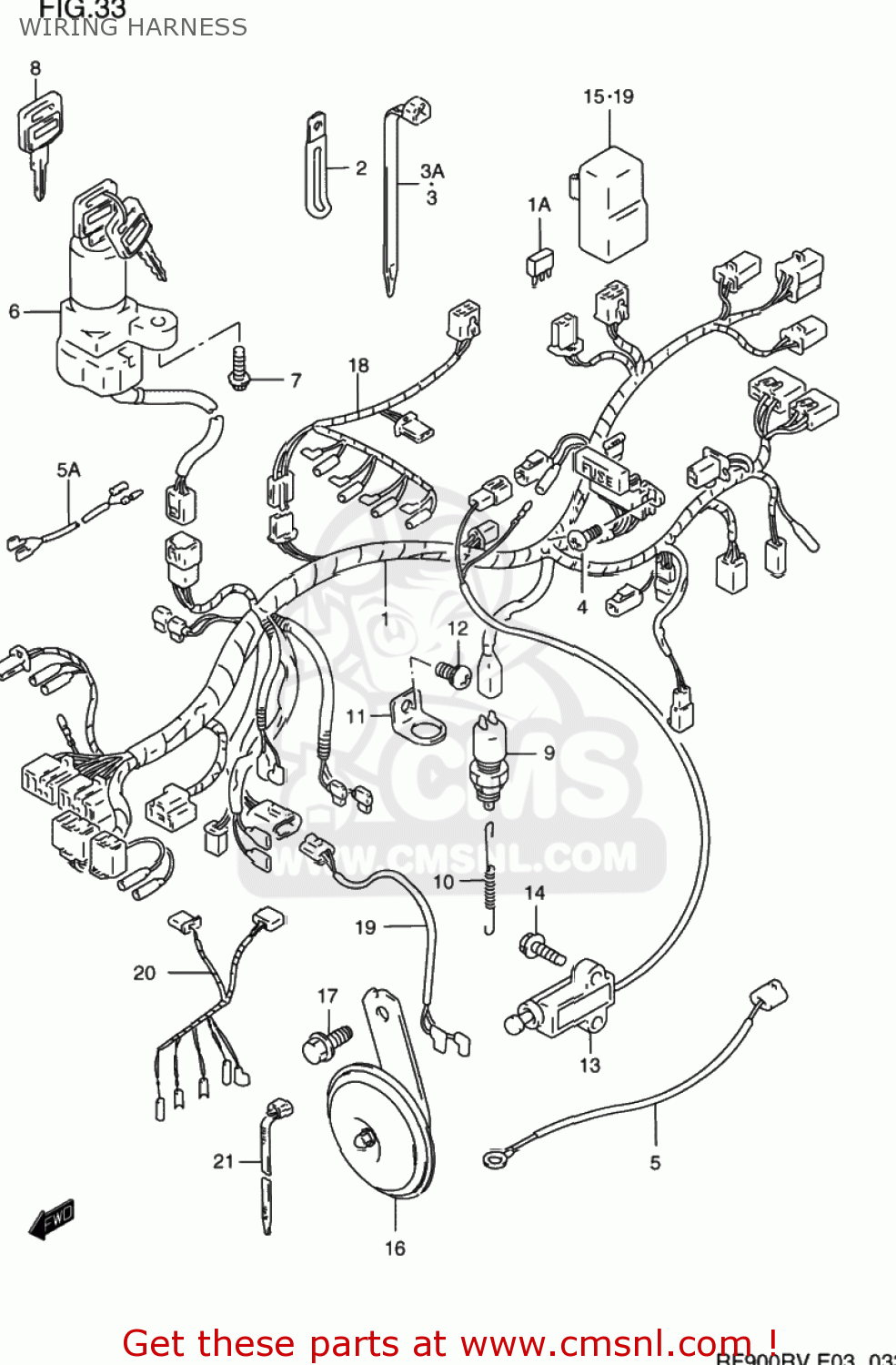

Wiring harness diagram RF900R 1995 (S) USA (E03)
WIRING HARNESS RF900R 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1A
3661138A00
ref: 1A
DIODE(STANLEY DE8804)
€ 13.00
1-1
3661021E10
ref: 1-1
36610-21E11
HARNESS,WIRING
€ 511.50
1-2
3661021E11
ref: 1-2
HARNESS,WIRING
€ 511.50
1-3
3661021E20
ref: 1-3
HARNESS,WIRING
€ 477.50
2-1
0940406402
ref: 2-1
09404-06432
CLAMP
€ 2.50
2-2
0940406429
ref: 2-2
CLAMP(L:45)
€ 2.50
3A
0940711402
ref: 3A
CLAMP(L:90)
€ 2.50
3-1
0940714403
ref: 3-1
CLAMP(L:125)
€ 2.50
3-2
0940718403
ref: 3-2
09407-18402
CLAMP L:165
€ 2.50
4
0214206123
ref: 4
02142-0612A
SCREW 6X12
€ 2.00
5
3685117E10
ref: 5
WIRE,OIL PRESSURE SWITCH LEAD
€ 13.50
5A
3685219D00
ref: 5A
WIRE,CLUTCH LEAD
€ 12.00
6
3710026D02
ref: 6
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
7
0913906026
ref: 7
SCREW(6X18)
€ 2.50
8
3714626D10
ref: 8
KEY,BLANK
€ 41.50
9
3774024A00
ref: 9
SWITCH ASSY,STOP LAMP
€ 20.50
10
0944306012
ref: 10
SPRING
€ 3.00
11
4325121E00
ref: 11
BRACKET,STOP LAMP SWITCH
€ 3.50
12
0214206083
ref: 12
02142-0608A
SCREW
€ 1.50
13-1
3784044A20
ref: 13-1
37840-44X50
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
13-2
3784044X50
ref: 13-2
SWITCH ASSY,SIDE STAND
€ 75.50
14
0155006203
ref: 14
01550-0620A
BOLT
€ 2.50
15
3874024X50
ref: 15
RELAY ASSY
€ 37.50
16-1
3850221E00
ref: 16-1
38502-21E02
HORN ASSEMBLY,LOW PITCH
€ 63.50
16-2
3850221E01
ref: 16-2
38502-21E02
HORN ASSEMBLY,LOW PITCH
€ 63.50
17
0155008163
ref: 17
01550-0816A
BOLT
€ 3.00
18
3685921E00
ref: 18
WIRE,CARBURETOR HEATER LEAD
€ 51.50
19
3874024X50
ref: 19
RELAY ASSY
€ 37.50
19
3874024X50
ref: 19
RELAY ASSY
€ 37.50
20
3685621E00
ref: 20
WIRE,CARB HEATER LEAD
€ 79.50
21
0940714403
ref: 21
CLAMP(L:125)
€ 2.50
