ELECTRICAL

RF900R 1995 (S) USA (E03)

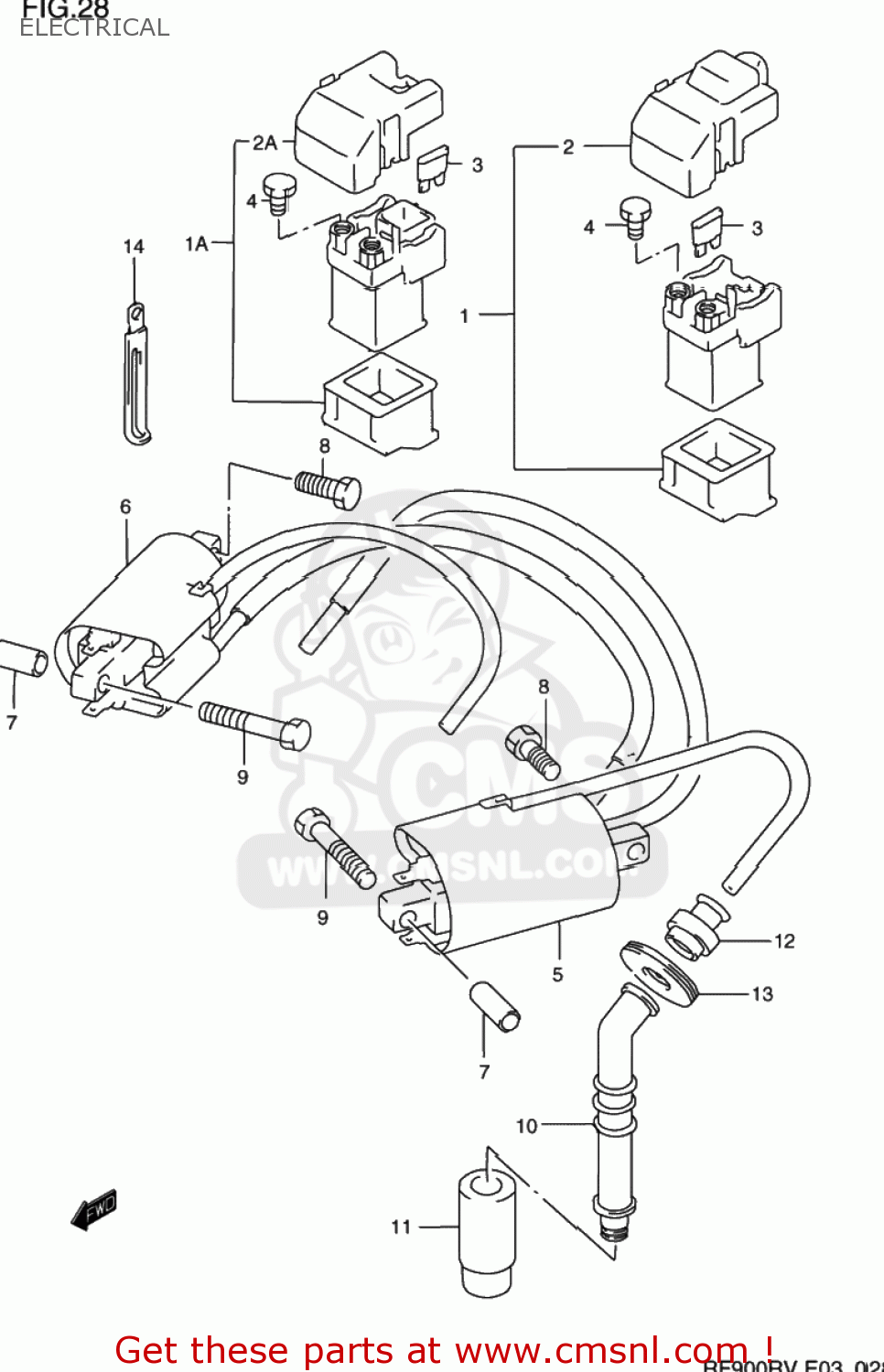

Electrical diagram RF900R 1995 (S) USA (E03)

ELECTRICAL RF900R 1995 (S) USA (E03)
ELECTRICAL RF900R 1995 (S) USA (E03)
ELECTRICAL RF900R 1995 (S) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180021E10
ref: 1
RELAY ASSY,STARTING MOTOR
3180021E10
€ 101.00
1A
3180021E20
ref: 1A
RELAY ASSY,STARTING MOTOR
3180021E20
€ 69.00
2
3186121E10
ref: 2
COVER,RELAY ASSEMBLY
€ 10.50
2A
3186121E20
ref: 2A
31861-47E00
COVER,RELAY ASSEMBLY
3186121E20
€ 10.50
3
0948130101
ref: 3
FUSE(30A)
0948130101
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
0912806013
€ 1.50
5
3341021E00
ref: 5
33410-21E01
COIL ASSEMBLY,IGNITION NO
€ 104.50
6
3342021E00
ref: 6
33420-21E01
COIL ASSEMBLY,IGNITION NO
€ 119.00
7
0918006244
ref: 7
SPACER(6.2X15.5X16.5)
0918006244
€ 4.50
8
0150006203
ref: 8
01500-0620A
BOLT
0150006203
€ 2.00
9
0910006123
ref: 9
BOLT
€ 2.00
10-1
3351017E10
ref: 10-1
33510-17E11
CAP,SPARK PLUG
€ 46.00
10-2
3351017E11
ref: 10-2
CAP ASSY,SPARK PLUG
3351017E11
€ 46.00
11
3354120C00
ref: 11
SEAL,SPARK PLUG
3354120C00
€ 19.50
12
3354238B00
ref: 12
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
13
3354317E01
ref: 13
COVER,SPARK PLUG CAP
3354317E01
€ 19.00
14-1
0940406404
ref: 14-1
09404-06433
CLAMP
0940406404
€ 3.00
14-2
0940406431
ref: 14-2
09404-06432
CLAMP(L:65)
0940406431
€ 2.50
