RADIATOR
RF900R 1995 (S) USA (E03)

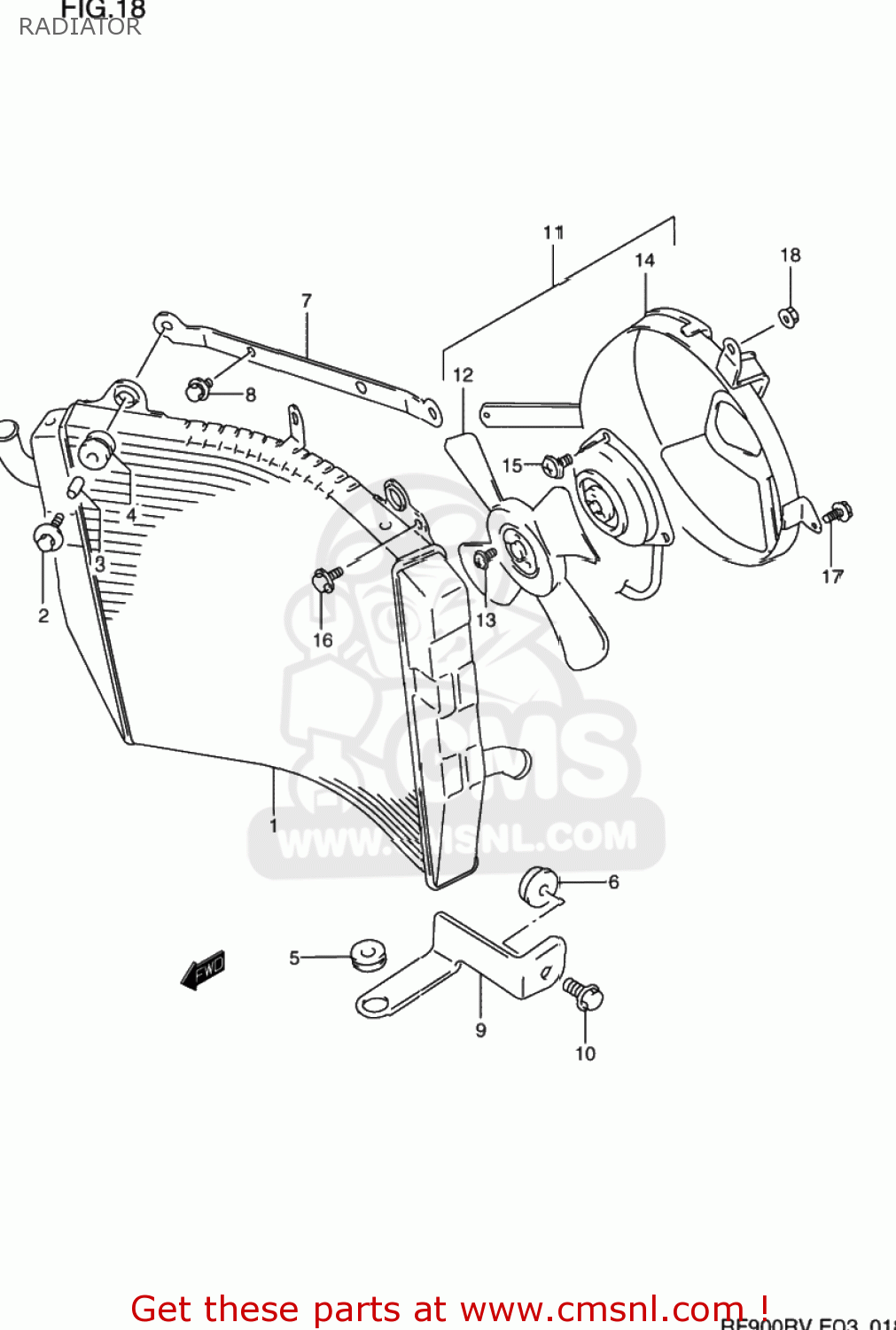

Radiator diagram RF900R 1995 (S) USA (E03)
RADIATOR RF900R 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771021E00
ref: 1
RADIATOR ASSY,WATER
€ 857.50
2
0911606147
ref: 2
BOLT(6X25)
€ 4.00
3
0918007004
ref: 3
SPACER(6.5X10.5X12)
€ 2.50
4
1778719A00
ref: 4
CUSHION,RADIATOR LWR
€ 3.50
5
0932012053
ref: 5
CUSHION
€ 7.50
6
1776121E00
ref: 6
SPACER,RADIATOR BRACKET LWR
€ 17.50
7-1
1774021E00
ref: 7-1
17740-21E01
BRACKET COMP,RADIATOR
€ 20.50
7-2
1774021E01
ref: 7-2
BRACKET COMP,RADIATOR
€ 20.50
8
0158006163
ref: 8
01580-0616A
BOLT
€ 2.50
9-1
1775021E01
ref: 9-1
17750-21E02
BRACKET COMP,RADIATOR
€ 15.50
9-2
1775021E02
ref: 9-2
BRACKET COMP,RADIATOR
€ 15.50
10
0155008553
ref: 10
01550-0855A
BOLT
€ 3.00
11
1780021E01
ref: 11
FAN ASSY,RADIATOR
€ 480.50
12
1782017E00
ref: 12
FAN
€ 48.50
13
0211204063
ref: 13
02112-0406B
SCREW 4X6
€ 2.00
14
1777021E00
ref: 14
SHROUD ASSY,FAN
€ 115.50
15
0211215083
ref: 15
02142-0508A
SCREW
€ 2.00
16
0155006123
ref: 16
01550-0612A
BOLT
€ 2.50
17
0155006103
ref: 17
01550-0610A
BOLT
€ 2.50
18
0831610063
ref: 18
08316-1006B
NUT
€ 2.50
