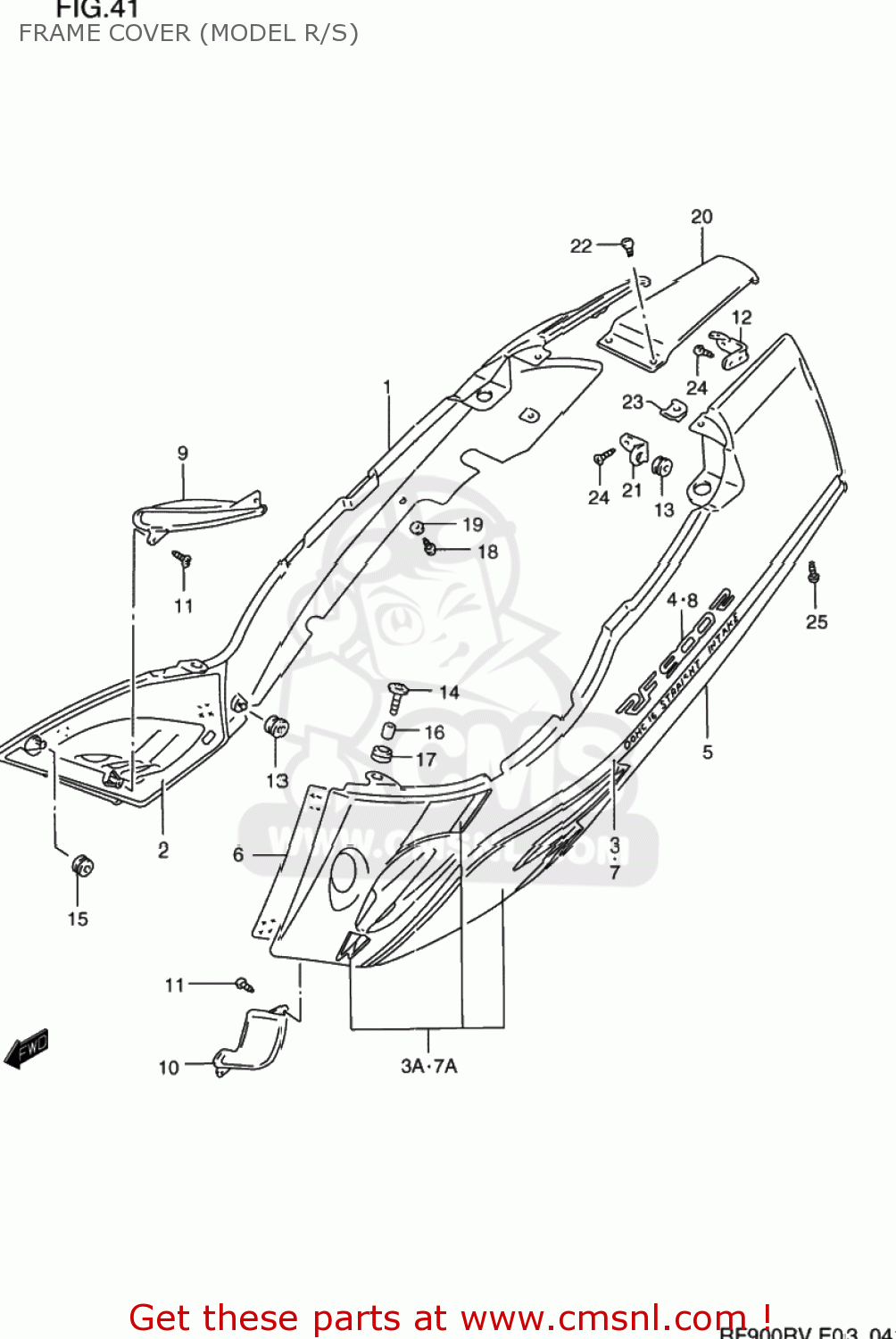

FRAME COVER (MODEL R/S)

ref

part #

description

quantity

1-1

4710031E0019A
ref: 1-1

COVER ASSY,FRAME,R(RED)

€ 439.50

1-2

4710031E0033J
ref: 1-2

COVER ASSY,FRAME,R(BLACK)

€ 408.50

1-3

4710031E001UH
ref: 1-3

COVER ASSEMBLY,FRAME,RIGHT

€ 413.00

1-4

4710031E100FP
ref: 1-4

COVER ASSY,FRAME,R(SILVER)

€ 408.50

2

4711731E00
ref: 2

SHIELD,FRAME COVER HEAT

€ 32.50

3A

6813031E10D8M
ref: 3A

TAPE SET,FRAME COVER,R

€ 40.00

3-1

6813031E00B7G
ref: 3-1

TAPE SET,FRAME COVER STRIPE,R

€ 99.00

3-2

6813031E00B7H
ref: 3-2

TAPE SET,FRAME COVER S

€ 121.00

3-3

6813031E00D3S
ref: 3-3

TAPE SET,FRAME COVER,R

€ 90.00

3-4

6813031E00D9E
ref: 3-4

TAPE SET,FRAME COVER S

€ 121.00

4-1

6813131E00AF7
ref: 4-1

EMBLEM,FRAME COVER

€ 44.50

4-2

6813131E00B8U
ref: 4-2

EMBLEM,FRAME COVER

€ 45.00

4-3

6813131E00D3T
ref: 4-3

EMBLEM,FRAME COVER

€ 34.00

4-4

6813131E00D8P
ref: 4-4

EMBLEM,FRAME COVER

€ 35.00

5-1

4720031E0019A
ref: 5-1

COVER ASSEMBLY,FRAME,LEFT

€ 390.00

5-2

4720031E0033J
ref: 5-2

COVER ASSY,FRAME,L(BLACK)

€ 400.50

5-3

4720031E001UH
ref: 5-3

COVER ASSEMBLY,FRAME,LEFT

€ 406.00

5-4

4720031E100FP
ref: 5-4

COVER ASSEMBLY,FRAME,LEFT

€ 390.00

6

4721731E00
ref: 6

SHIELD,FRAME COVER HEAT,L

€ 29.00

7A

6814031E10D8M
ref: 7A

TAPE SET,FRAME COVER,LEFT

€ 44.00

7-1

6814031E00B7G
ref: 7-1

TAPE SET,FRAME COVER S

€ 113.50

7-2

6814031E00B7H
ref: 7-2

TAPE SET,FRAME COVER S

€ 102.00

7-3

6814031E00D3S
ref: 7-3

TAPE SET,FRAME COVER,L

€ 90.00

7-4

6814031E00D9E
ref: 7-4

TAPE SET,FRAME COVER STRIPE,L

€ 101.50

8-1

6813131E00AF7
ref: 8-1

EMBLEM,FRAME COVER

€ 44.50

8-2

6813131E00B8U
ref: 8-2

EMBLEM,FRAME COVER

€ 45.00

8-3

6813131E00D3T
ref: 8-3

EMBLEM,FRAME COVER

€ 34.00

8-4

6813131E00D8P
ref: 8-4

EMBLEM,FRAME COVER

€ 35.00

9

4751131E00
ref: 9

COVER,INNER,RIGHT

€ 14.50

10

4761131E00
ref: 10

COVER,INNER,L

€ 10.00

11

0354114123
ref: 11
03541-1412A

SCREW

€ 2.00

12-1

4719121E00
ref: 12-1

BRACKET,FRAME COVER,R

€ 4.50

12-2

4719221E00
ref: 12-2

BRACKET,FRAME COVER,L

€ 6.00

13

0932008018
ref: 13

CUSHION

€ 4.00

14-1

0913606102
ref: 14-1
09136-06121

SCREW

€ 2.50

14-2

0911606131
ref: 14-2

BOLT(6X25)

€ 2.00

15

4716121E00
ref: 15

CUSHION,FRAME COVER FR

€ 7.50

16

0918006225
ref: 16
09180-06265

SPACER

€ 4.50

17

0932008061
ref: 17

CUSHION

€ 4.00

18

0214205123
ref: 18
02142-0512A

SCREW 5X12

€ 1.50

19

0916105017
ref: 19

WASHER(5.2X14X1.5)

€ 3.00

20-1

4731131E0019A
ref: 20-1

COVER,FRAME CTR

€ 47.50

20-2

4731131E0033J
ref: 20-2

COVER,FRAME CTR

€ 38.50

20-3

4731131E001UH
ref: 20-3

COVER,FRAME CTR

€ 46.50

20-4

4731131E000FP
ref: 20-4

COVER,FRAME CTR

€ 44.50

21

4719321E00
ref: 21

BRACKET,RR COMBINATION LAMP

€ 6.50

22

0214205123
ref: 22
02142-0512A

SCREW 5X12

€ 1.50

23

0914805021
ref: 23

NUT

€ 1.50

24

0354114123
ref: 24
03541-1412A

SCREW

€ 2.00

25

0324115163
ref: 25
03241-1516A

SCREW

€ 2.00
