REAR SWINGING ARM (MODEL T/V)
RF900R 1995 (S) USA (E03)

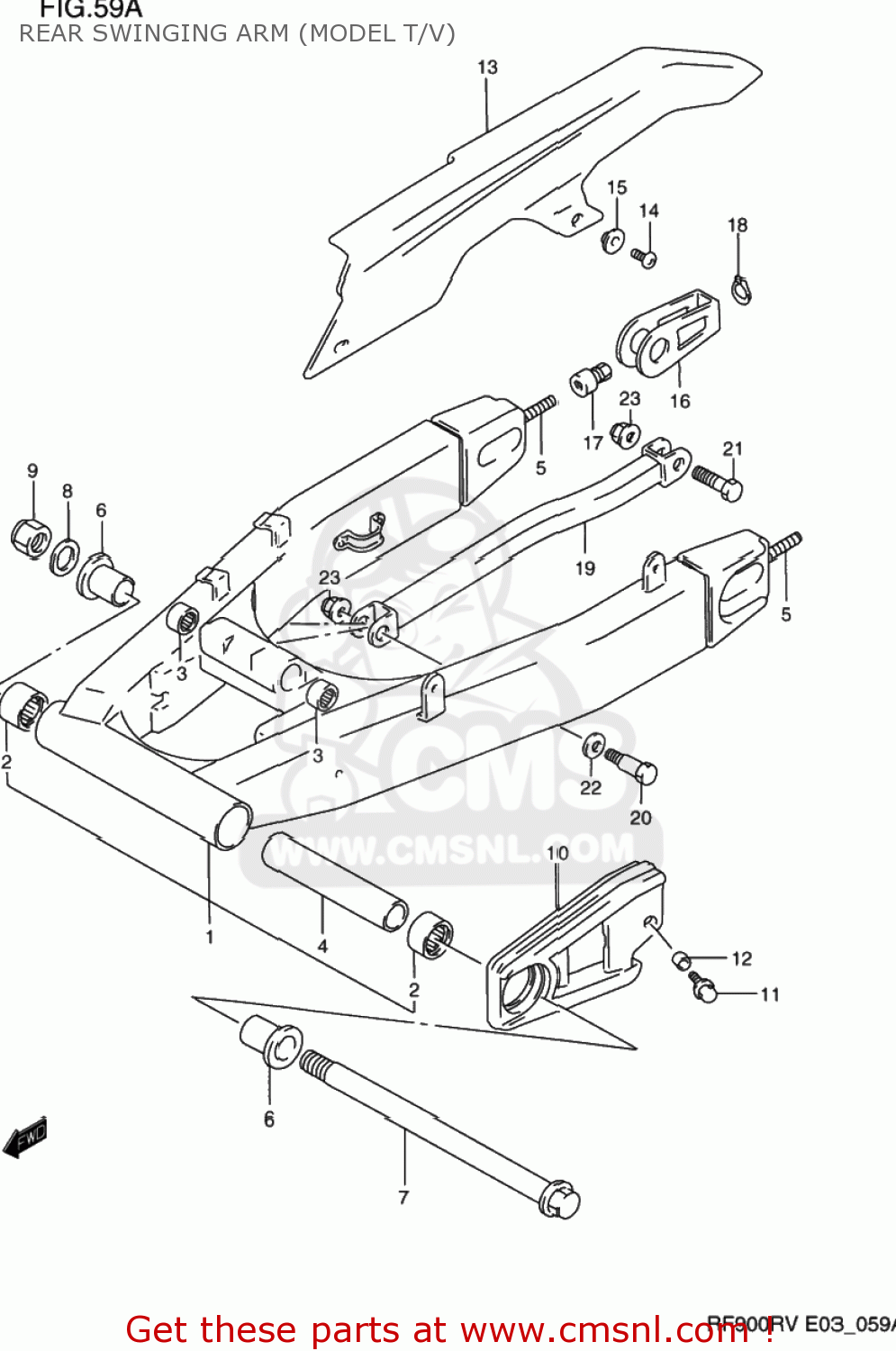

Rear swinging arm (model t/v) diagram RF900R 1995 (S) USA (E03)
REAR SWINGING ARM (MODEL T/V) RF900R 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100031E10
ref: 1
SWINGINGARM ASSY,RR
€ 1,771.00
2
0926325059
ref: 2
BEARING(25X33X35)
€ 35.00
3
0926317037
ref: 3
BEARING(17X24X25)
€ 19.00
4
6128231E00
ref: 4
SPACER,RR SWGARM PIVOT CTR
€ 19.00
5
6143140C00
ref: 5
09108-08261
STUD,CHAIN ADJUSTER BOLT
€ 7.50
6
6125131E00
ref: 6
SPACER,RR SWGARM PIVOT BERRING
€ 16.00
7
6121131E00
ref: 7
SHAFT,RR SWINGINGARM PIVOT
€ 53.00
8
0916018030
ref: 8
WASHER(18.5X28X2.6)
€ 2.50
9
0915918007
ref: 9
NUT
€ 14.00
10-1
6127317E02
ref: 10-1
BUFFER,CHAIN TOUCH DEFENSE
€ 41.00
10-1
6127317E02
ref: 10-1
BUFFER,CHAIN TOUCH DEFENSE
€ 41.00
10-1
6127317E02
ref: 10-1
BUFFER,CHAIN TOUCH DEFENSE
€ 41.00
10-2
6127317E50
ref: 10-2
BUFFER,CHAIN TOUCH DEFENSE
€ 41.00
10-2
6127317E50
ref: 10-2
BUFFER,CHAIN TOUCH DEFENSE
€ 41.00
11
0911606111
ref: 11
09116-06152
BOLT 6X20,WITH PLAIN WASHER
€ 2.00
12
0918006283
ref: 12
SPACER(6.5X10X7)
€ 2.00
13
6131045D12
ref: 13
CASE,CHAIN
€ 104.00
14
0214206123
ref: 14
02142-0612A
SCREW 6X12
€ 2.00
15
0916906026
ref: 15
WASHER
€ 2.00
16
6141140C00
ref: 16
ADJUSTER,CHAIN
€ 11.50
17
6141522D00
ref: 17
NUT,CHAIN ADJUSTER
€ 20.00
18
0833131136
ref: 18
08331-3113A
CIRCLIP
€ 1.50
19
6431027E00019
ref: 19
TORQUELINK,RR
€ 33.50
20
0911110051
ref: 20
BOLT(10X39)
€ 8.50
21
0910010187
ref: 21
BOLT(10X34)
€ 4.50
22
0916012011
ref: 22
WASHER(12.5X20X1)
€ 1.50
23
0831931107
ref: 23
NUT
€ 3.00
