CARBURETOR
RG125AU 1988 (J) (E01)

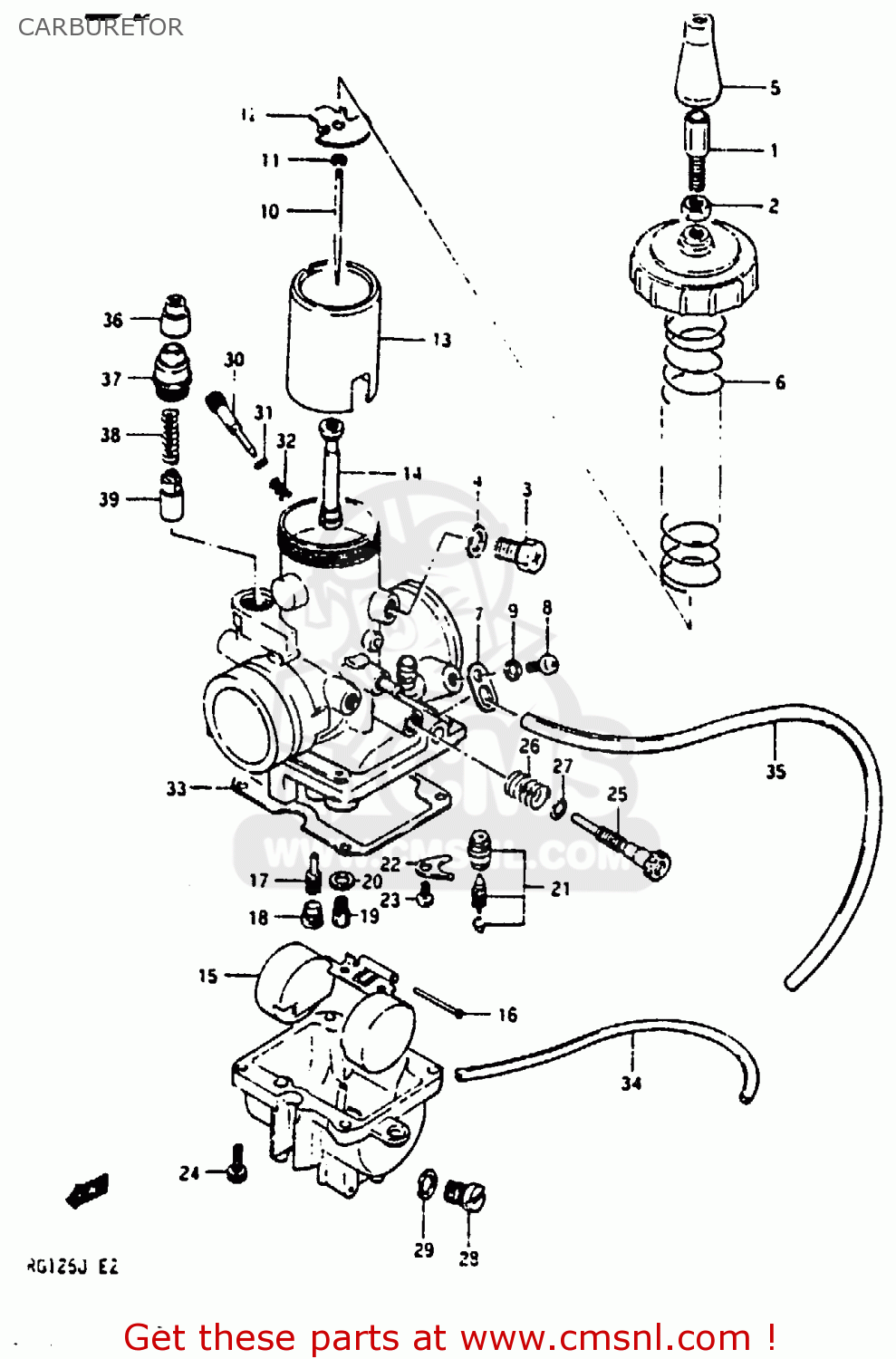

Carburetor diagram RG125AU 1988 (J) (E01)
CARBURETOR RG125AU 1988 (J) (E01)
×
prices are in EUR
ref
part #
description
quantity
0
1320036A00
ref: 0
EXCEPT MODEL J E18
CARBURETOR ASSY (VM28)
€ 229.50
0
1320036A10
ref: 0
E30
CARBURETOR ASSY
€ 0.00
1
1357741612
ref: 1
ADJUSTER,CABLE
€ 8.00
2
1366116600
ref: 2
NUT
€ 5.00
3
1366418654
ref: 3
BOLT
€ 10.50
4
1366331010
ref: 4
GASKET,THRO VALVE INSPECTION (NAS)
€ 3.50
5
1368133010
ref: 5
CAP,CABLE ADJUSTER
€ 8.00
6
1357330900
ref: 6
SPRING,THROTTLE VALVE
€ 6.00
7
1369316600
ref: 7
PLATE
€ 8.00
8
0211205106
ref: 8
SCREW 5X10
€ 2.00
9
0832121056
ref: 9
LOCK WASHER
€ 3.00
10-1
1338336A00
ref: 10-1
NEEDLE, JET (SEL45-2)
€ 13.00
10-2
1338336A00
ref: 10-2
E30
NEEDLE, JET (SEL45-2)
€ 13.00
11
1339410010
ref: 11
CLIP
€ 4.50
12
1358129500
ref: 12
PLATE,THROTTLE VALVE
€ 4.50
13
1355136A00
ref: 13
VALVE, PISTON (CA:2.5)
€ 57.00
14-1
0949400499
ref: 14-1
JET, NEEDLE (P-6)
€ 22.00
14-2
0949400520
ref: 14-2
E30
JET, NEEDLE (P-5)
€ 0.00
15
1325228310
ref: 15
FLOAT
€ 20.50
16
1325492311
ref: 16
PIN,FLOAT
€ 2.00
17
0949235004
ref: 17
JET,PILOT(35)
€ 7.50
18
1335736A00
ref: 18
PLUG
€ 4.50
19-1
0949136003
ref: 19-1
JET
€ 15.00
19-2
0949132002
ref: 19-2
E30
JET,MAIN(160)
€ 6.50
20
1333244080
ref: 20
WASHER,NEEDLE NOZZLE
€ 2.50
21
1337011301
ref: 21
VALVE ASSY,NEEDLE
€ 54.50
22
1337339110
ref: 22
PLATE
€ 6.50
23
0211204066
ref: 23
SCREW
€ 2.00
24
1360104148
ref: 24
SCREW
€ 2.50
25
1326736A00
ref: 25
ADJUSTER
€ 10.00
26
1326846010
ref: 26
SPRING
€ 3.50
27
1327802340
ref: 27
O RING
€ 1.50
28
1324705010
ref: 28
PLUG
€ 6.00
29
1324905010
ref: 29
GASKET,DRAIN,PLUG (NAS)
€ 1.50
30
1326915011
ref: 30
SCREW,PILOT AIR ADJUSTING
€ 12.50
31
1329533010
ref: 31
O RING
€ 4.50
32
1326835010
ref: 32
SPRING
€ 3.00
33
1325130520
ref: 33
GASKET,FLOAT CAHMBER (NAS)
€ 9.50
34
1368336A00
ref: 34
HOSE
€ 8.00
35
1368337420
ref: 35
L:500@r280
HOSE
€ 5.50
36
1368104010
ref: 36
CAP
€ 3.00
37
1341843410
ref: 37
HOLDER,GUIDE
€ 6.50
38
1341701010
ref: 38
SPRING
€ 3.50
39
1341101010
ref: 39
PLUNGER,STARTER
€ 14.00
