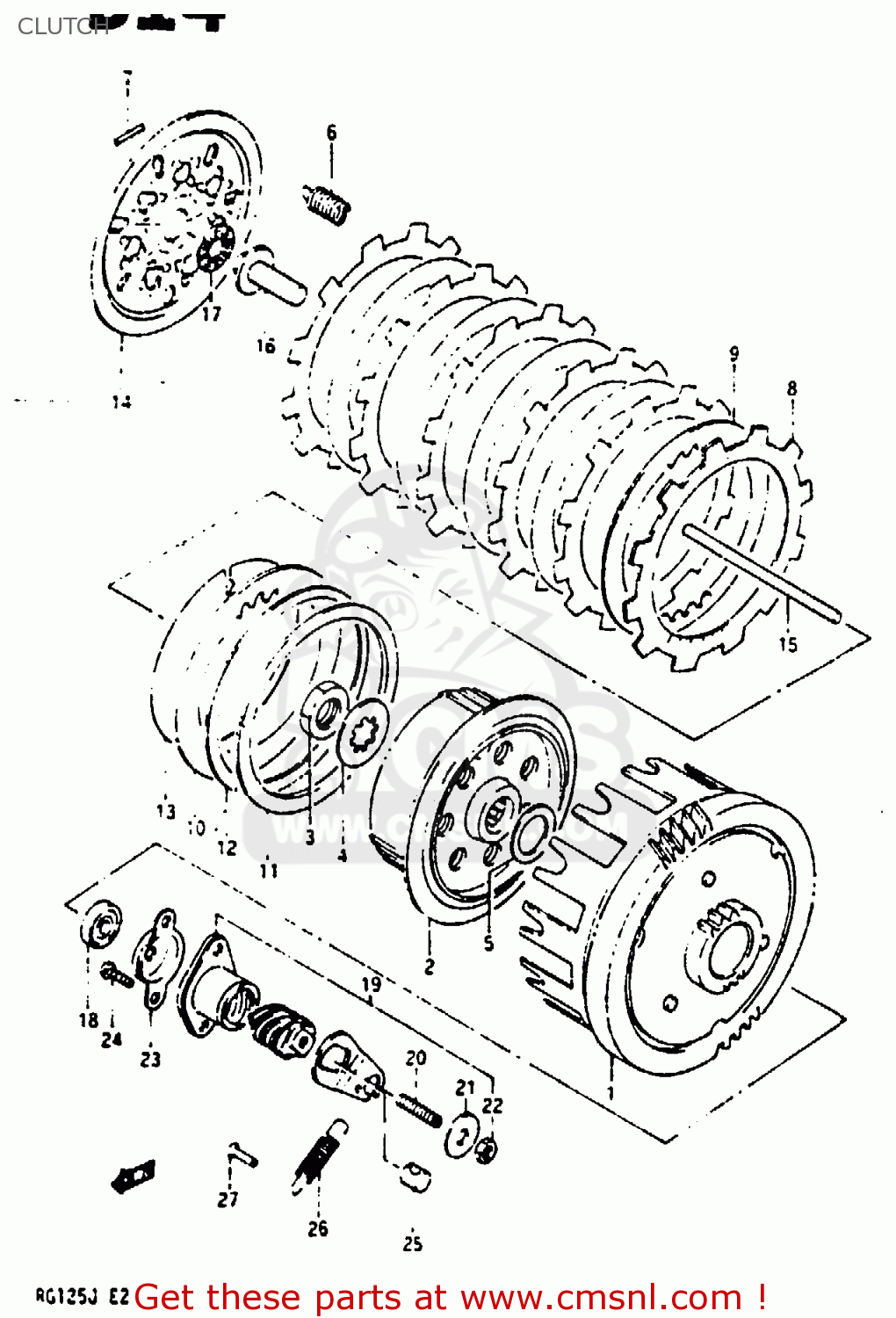

CLUTCH

ref

part #

description

quantity

1

2120036A02
ref: 1
NT:67/17

GEAR, PRIMARY DRIVEN

€ 112.50

2

2141101A00
ref: 2

HUB, SLEEVE

€ 60.50

3

0914016014
ref: 3

NUT

€ 4.50

4

0916717002
ref: 4

WASHER,LOCK

€ 2.00

5

0821117283
ref: 5

WASHER

€ 2.00

6

0944312018
ref: 6

SPRING

€ 3.00

7

0926102001
ref: 7

PIN(2.5X19.8)

€ 1.50

8

2144113A00
ref: 8

PLATE,CLUTCH DRIVE (NAS)

€ 8.50

9

2145128000
ref: 9

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

10

2145136200
ref: 10

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 5.00

11

2147136200
ref: 11

SEAT,WAVE WASHER

€ 43.50

12

0916498001
ref: 12

WASHER

€ 8.50

13

2148139301
ref: 13

RING,STOPPER

€ 5.00

14

2146139300
ref: 14

PLATE,CLUTCH PRESSURE

€ 19.00

15

2311130000
ref: 15

ROD,CLUTCH PUSH

€ 13.50

16

2312139101
ref: 16

PIECE,CLUTCH PUSH

€ 14.00

17

0926310002
ref: 17

BEARING(10X22X2.8)

€ 8.50

18

0928506006
ref: 18

OIL SEAL

€ 13.00

19

2320036A00
ref: 19

SCREW ASSY,CLUTCH RELEASE

€ 36.00

20

0913406010
ref: 20

SCREW(6X25)

€ 3.00

21

0916006020
ref: 21

WASHER

€ 2.00

22

0831022067
ref: 22

NUT 6MM

€ 2.50

23

2324136A00
ref: 23

COVER, RELEASE SCREW

€ 7.50

24

0211205168
ref: 24

SCREW

€ 2.50

25

2322236A00
ref: 25

HOOK,CLUTCH RELEASE SCREW ARM

€ 5.50

26

0944308001
ref: 26

SPRING

€ 3.00

27

2322336A00
ref: 27

PROTECTOR

€ 0.00

all assemblies
